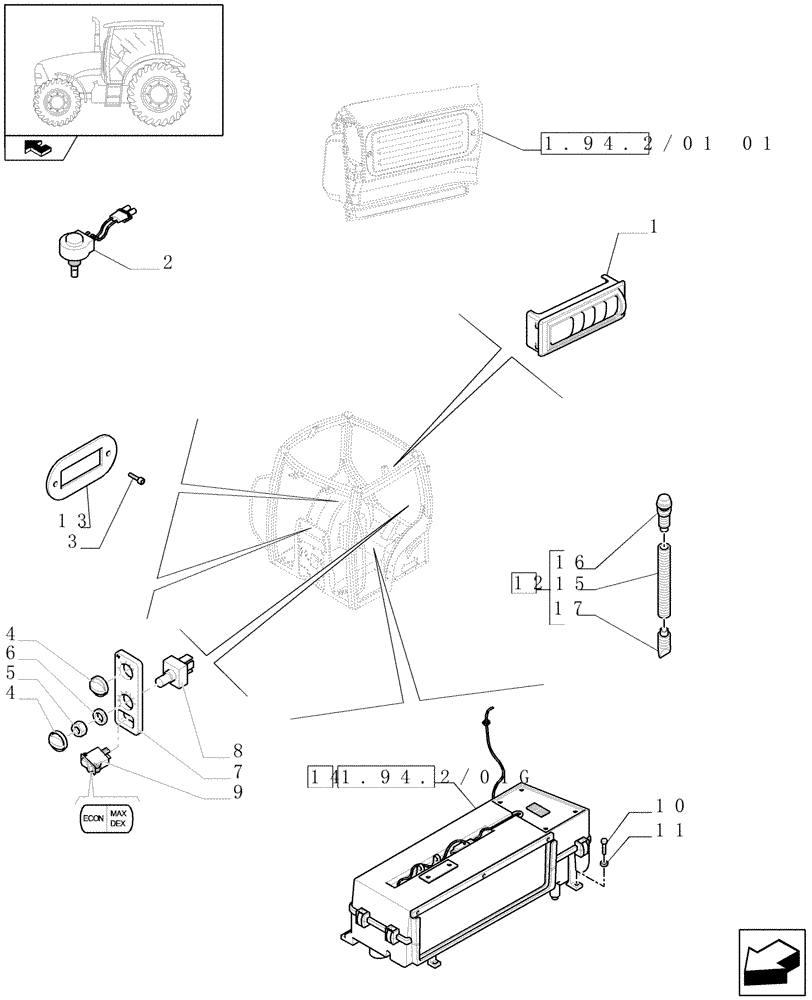

Запчасти Case IH PUMA 115 (1.94.2/01[02A]) - AIR CONDITIONING WITH ATC - VENTILATION DUCTS - D6481 (VAR.330643) (10) - OPERATORS PLATFORM/CAB

1

87568776

DIFFUSER

3шт.

2

82037674

POTENTIOMETER,10,000 Ohm

1шт.

3

15663301

SELF-TAP SCREW,Cross Oval Hd, M4.2 x 19mm

2шт.

4

87699601

KNOB

2шт.

5

274562

THIN NUT

1шт.

6

9715503

LOCK WASHER,Ext Tooth, 7/16"

1шт.

7

82037672

DECAL

1шт.

8

82023545

FAN SWITCH

4 Speed

1шт.

9

82037673

SWITCH ASSY

ATC

1шт.

10

120100

BOLT,M6 x 20mm, Cl 8.8

4шт.

11

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

4шт.

12

84232466

TUBE

A/C HOSE ASSY

2шт.

13

82022361

SUPPORT

1шт.

14

84233168

AIR CONDITIONER

1шт.

15

84232468

HOSE,25.40 mm ID x 800.00 mm

A/C HOSE

2шт.

16

84231998

DRAIN

2шт.

17

84232000

CHECK VALVE

2шт.
