Запчасти Case IH PUMA 115 (1.94.2[03]) - HEATING - HEATER - AIR CONDITIONER AND RELATED PARTS - C6481 (10) - OPERATORS PLATFORM/CAB

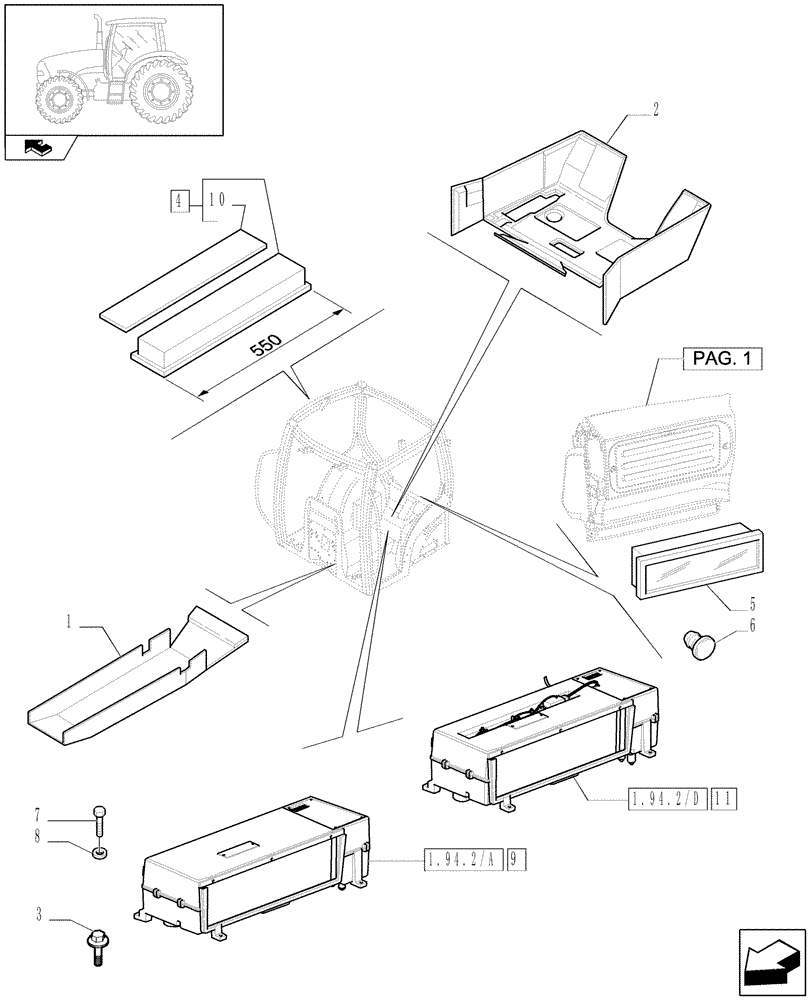

Схема запчастей Case IH PUMA 115 - (1.94.2[03]) - HEATING - HEATER - AIR CONDITIONER AND RELATED PARTS - C6481 (10) - OPERATORS PLATFORM/CAB
7
5
6
8
4
1
3
home
1.94.2/a
10
9
11
1.94.2/d
2

Артикул

Название

Примечание

Количество

1

82027033

INSULATOR

RH, Serial Range: -C5729

1шт.

1

82027034

INSULATOR

LH, Serial Range: -C5729

1шт.

1

87661587

INSULATOR

, Start Serial: D5729

1шт.

1

87661589

INSULATOR

, Start Serial: D5729

1шт.

2

82027032

INSULATOR

, Serial Range: -C5729

1шт.

2

87661585

INSULATOR

, Start Serial: D5729

1шт.

3

87581911

FLANGE BOLT,Hex, M6 x 25mm

2шт.

4

87726675

CAB FILTER,Fresh Air, 550mm x 100mm x 64mm, Paper

2шт.

5

87726699

CAB FILTER,Fresh Air, 380mm x 130mm x 49mm, Paper

Recirculation

1шт.

6

82027031

PLUG,M10

1шт.

7

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

4шт.

8

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

4шт.

9

82036400

AIR CONDITIONER

A/C, Serial Range: -C5941

1шт.

10

82024373

FOAM

2шт.

11

87659073

AIR CONDITIONER

A/C, Start Serial: D5941

1шт.

Выбрано товаров: 15
