Запчасти Case IH PUMA 115 (1.94.0/01[01]) - NAR ROOF WITH HIGH PROFILE WITH HIGH VISIBILITY PANEL - ROOF (10) - OPERATORS PLATFORM/CAB

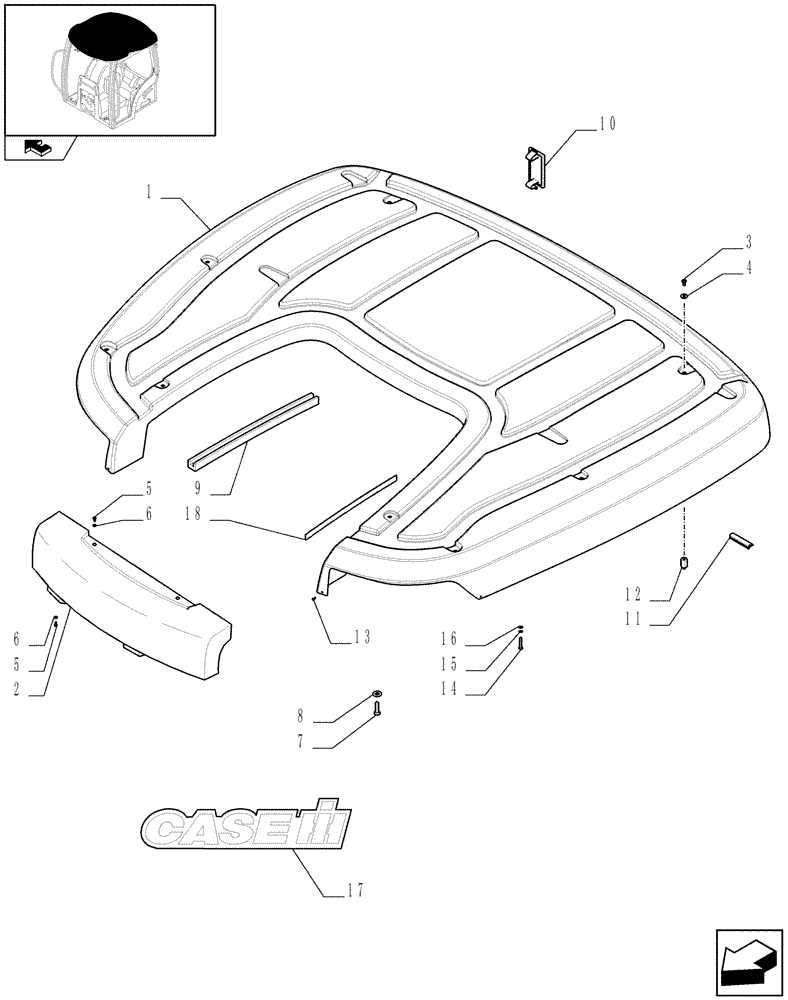

Схема запчастей Case IH PUMA 115 - (1.94.0/01[01]) - NAR ROOF WITH HIGH PROFILE WITH HIGH VISIBILITY PANEL - ROOF (10) - OPERATORS PLATFORM/CAB
1
6
13
18
5
16
5
4
home
9
15
2
17
12
3
11
10
6
7
14
8

Артикул

Название

Примечание

Количество

1

87650483

ROOF

, Serial Range: -C6709

1шт.

1

84276391

ROOF

, Start Serial: D6709

1шт.

2

82037425

COVER

1шт.

3

83998908

SCREW,Pozidriv Pan Hd, M6 x 12mm, Cl 4.8, Full Thd

8шт.

4

82037891

SEALING WASHER,6mm ID x 19mmOD x 1.5mm Thk

SEAL WASHER

8шт.

5

84193286

SCREW,Torx Pan Hd, M4 x 10mm, Cl 4.8

4шт.

6

84193288

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

4шт.

7

15213321

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

4шт.

8

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

9

82028318

SEAL

1шт.

Q.ty 1= 4 meters

1шт.

10

5151033

PLASTIC PLUG

2шт.

11

82034370

SEAL

1шт.

3 meters long. Cut to length.

1шт.

12

82034114

SPACER,M6 x 25mm L

8шт.

13

82034112

SELF-TAP SCREW,Pan, M3 x 10mm

8шт.

14

10902021

BOLT,Hex, M6 x 12mm, Cl 8.8

2шт.

15

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

2шт.

16

10571579

LOCK WASHER,M6

2шт.

17

87557439

DECAL,56mm x 233mm

1шт.

18

82000733

STRIP-GASKET

, Start Serial: D6205

2шт.

Выбрано товаров: 21
