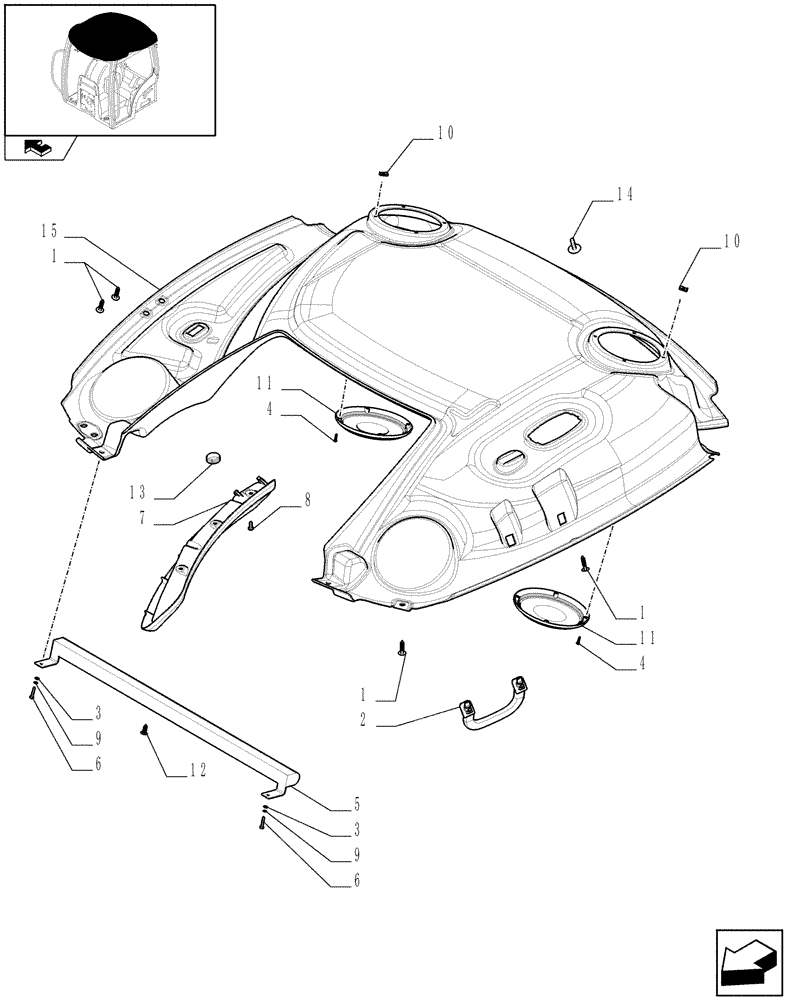

Запчасти Case IH PUMA 115 (1.94.0[03A]) - EEAA ROOF WITH HIGH PROFILE WITH HIGH VISIBILITY PANEL - HEADLINER - D5936 (10) - OPERATORS PLATFORM/CAB

1

82033699

PLASTIC PLUG,6.8mm D x 35mm L, Grey

4шт.

2

82035644

HANDLE

, Serial Range: -C6454

1шт.

2

84227380

HANDLE

, Start Serial: D6454

1шт.

3

14496301

WASHER,5.3mm ID x 10mm OD x 1mm Thk

2шт.

4

15642707

SCREW,Pozidriv Pan Hd, M3.5 x 16mm

8шт.

5

82028310

SUN CURTAIN

1шт.

6

10978221

BOLT,Hex, M5 x 25mm, Cl 8.8, Full Thd

2шт.

7

82033809

CONSOLE

, Serial Range: -C6235

1шт.

7

87673408

CONSOLE

, Start Serial: D6235

1шт.

7

82038590

CONSOLE

, Serial Range: -C6235

1шт.

Two Telescopic, Heated and with Remote Adjustment Rear-View Mirrors, with High Visibility Panel, VAR.330827

1шт.

7

87673403

CONSOLE

, Start Serial: D6235

1шт.

Two Telescopic, Heated and with Remote Adjustment Rear-View Mirrors, with High Visibility Panel, VAR.330827

1шт.

8

81853129

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 4.8, Full Thd

3шт.

9

12605271

WASHER

2шт.

10

81872135

NUT,Retaining, M4.20

8шт.

11

82022875

GRILLE,185mm OD

2шт.

12

81870039

FASTENER,M8 x 1.5 x 22mm

1шт.

13

87725990

PLUG

, Serial Range: -C6338

1шт.

14

82023482

ANCHOR,Button Hd, 8.25mm x 35.00mm

1шт.

15

87725998

ROOF LINING

, Serial Range: -C6338

1шт.

15

87521214

ROOF LINING

, Start Serial: D6378

1шт.
