(1.93.3/ C[06]) - "GRAMMER" DELUXE AIR SUSPENSION SEAT, W/BELTS AND W/SWITCH - BREAKDOWN

Запчасти Case IH PUMA 115 (1.93.3/ C[06]) - "GRAMMER" DELUXE AIR SUSPENSION SEAT, W/BELTS AND W/SWITCH - BREAKDOWN (10) - OPERATORS PLATFORM/CAB

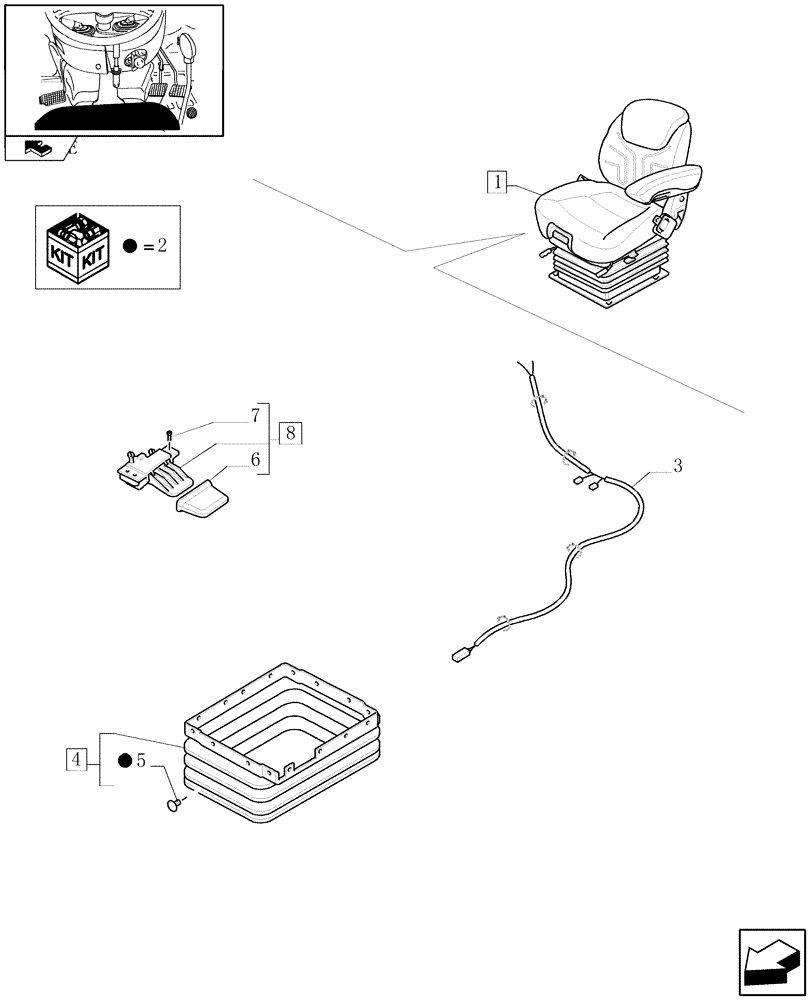

Схема запчастей Case IH PUMA 115 - (1.93.3/ C[06]) - "GRAMMER" DELUXE AIR SUSPENSION SEAT, W/BELTS AND W/SWITCH - BREAKDOWN (10) - OPERATORS PLATFORM/CAB
home
5
4
2
1
7
8
2
2
6
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87531475

DRIVER SEAT

SEAT ASSY

1шт.

2

82848105

KIT

Set of Wear Parts

1шт.

3

84145499

KIT

1шт.

4

85827920

BELLOWS

1шт.

5

82035026

PLUG

1шт.

6

345106A1

HANDLE

1шт.

7

85819815

SCREW,M5 x 16mm

M5 x 16

3шт.

8

345107A1

LEVER

1шт.

Выбрано товаров: 8
