(1.93.3/ B[05]) - "GRAMMER" DELUXE AIR SUSPENSION SEAT WITH HEATED CUSHIONS, W/BELTS AND W/SWITCH - BREAKDOWN (VAR.330709)

Запчасти Case IH PUMA 115 (1.93.3/ B[05]) - "GRAMMER" DELUXE AIR SUSPENSION SEAT WITH HEATED CUSHIONS, W/BELTS AND W/SWITCH - BREAKDOWN (VAR.330709) (10) - OPERATORS PLATFORM/CAB

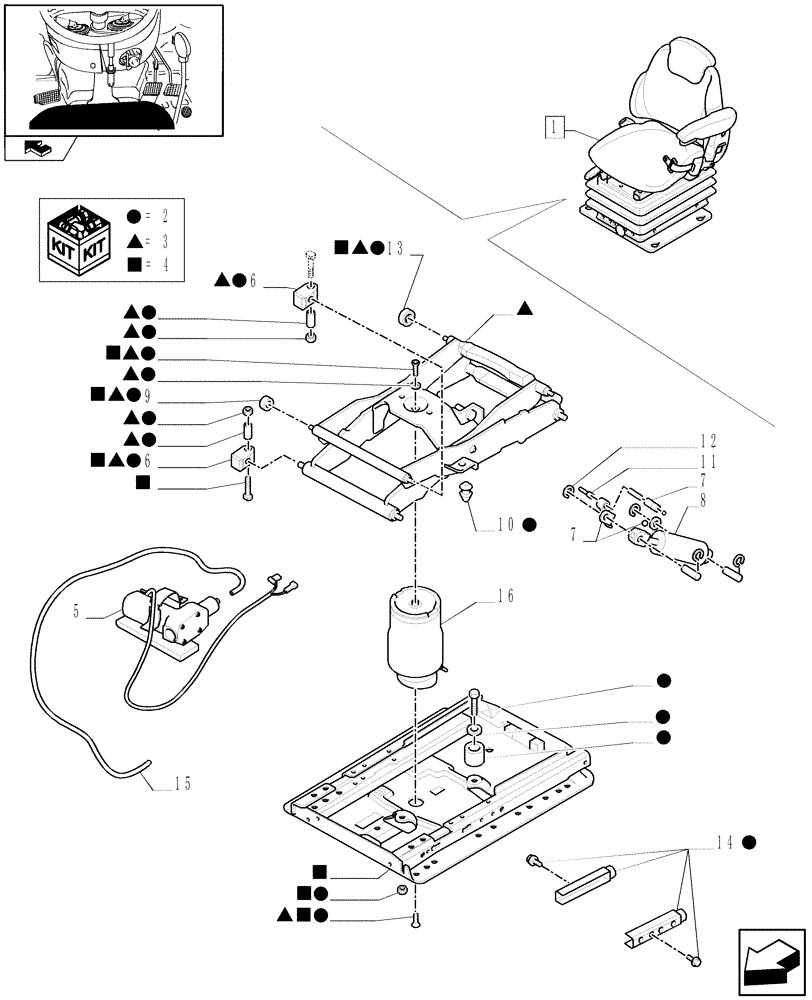

Схема запчастей Case IH PUMA 115 - (1.93.3/ B[05]) - "GRAMMER" DELUXE AIR SUSPENSION SEAT WITH HEATED CUSHIONS, W/BELTS AND W/SWITCH - BREAKDOWN (VAR.330709) (10) - OPERATORS PLATFORM/CAB
2
2
2
2
2
4
4
10
4
11
1
6
4
3
15
14
3
2
3
2
6
3
7
2
3
3
3
3
home
5
2
2
2
3
9
2
3
3
2
3
8
4
7
4
2
13
4
3
4
16
4
2
2
2
12
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87590511

SEAT

ASSY

1шт.

2

82848105

KIT

Set of Wear Parts

1шт.

3

87396449

SUSPENSION

1шт.

4

398148A1

BASE

1шт.

5

254780A1

AIR COMPRESSOR

1шт.

6

87567830

THRUST BEARING

4шт.

7

1-34-751-907

SUPPORT

1шт.

8

84171415

KIT

1шт.

9

82035130

ROLLER

2шт.

10

71485476

BUMPER

2шт.

11

87699829

BOWDEN CONTROL

D=13

4шт.

12

82035129

WASHER

D=10

4шт.

13

82035057

ROLLER

4шт.

14

87281748

STOP

1шт.

15

87313729

REPAIR KIT

1шт.

16

87396297

REPAIR KIT

1шт.
