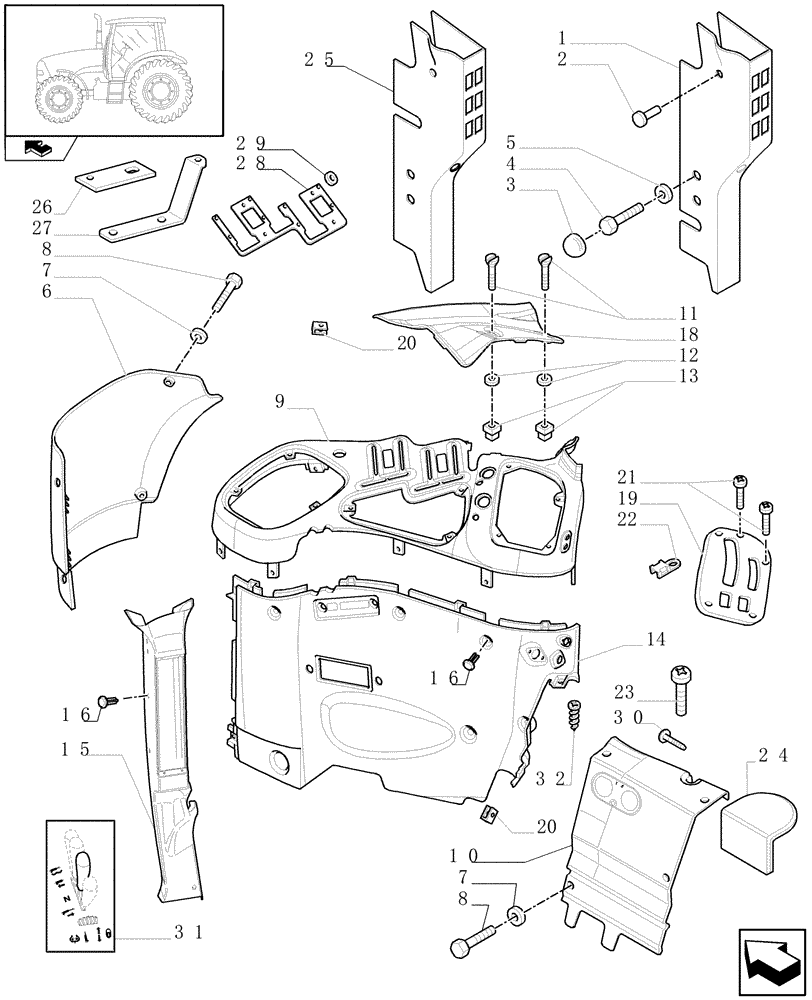

Запчасти Case IH PUMA 115 (1.93.0[02A]) - CONTROLS COVER - D6514 (10) - OPERATORS PLATFORM/CAB

1

84285944

PADDING

RH

1шт.

2

83998841

STUD,7.85mm OD x 19.50mm L

3шт.

3

82012814

CAP,M10

2шт.

4

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

2шт.

5

87734153

SPACER,10.6mm ID x 36mm OD x 7.5mm L

2шт.

5

82021889

SPACER

2шт.

W/Equip. 336761-337761

1шт.

6

47057394

SOFT TRIM

RH

1шт.

7

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

7шт.

8

10902021

BOLT,Hex, M6 x 12mm, Cl 8.8

7шт.

9

87614879

PANEL

Incl. 20

1шт.

l/electronic hydraulic remotes

1шт.

9

87614856

PANEL

Incl. 20

1шт.

With EHR only, VAR.330853, 330856, 330862, 331862 and Base Equipment.

1шт.

10

87479668

PANEL

1шт.

Located Behind Seat, Underneath Rear Window

1шт.

11

84204585

STUD

2шт.

12

81875581

RETAINER,6mm ID x 12.5mm OD x 0.5mm Thk

2шт.

13

83994515

SPRING CLIP

2шт.

14

87710212

PANEL

Incl. 20

1шт.

15

87388211

PADDING

1шт.

16

82023482

ANCHOR,Button Hd, 8.25mm x 35.00mm

4шт.

17

84187817

SCREW,Torx Pan Hd, M6 x 20mm, Cl 4.8

1шт.

18

47057398

SOFT TRIM

1шт.

19

47057011

PANEL

1шт.

20

87567755

SPRING NUT,M5

NUT

3шт.

21

47056669

SCREW

4шт.

22

47056773

RETAINER COLLAR,5mm ID x 19.1mm L x 9.5mm W

4шт.

23

84187812

SCREW,Torx, Pan HD, M6 x 16mm, Cl 4.8

6шт.

24

82024718

PANEL

1шт.

25

84285943

PADDING

RH

1шт.

With Rear ISOBUS Socket, VAR.330079-331761-332761-334761-336761-337761

1шт.

26

47057502

PLATE

1шт.

27

87570997

BRACKET

1шт.

28

47057803

PLATE

1шт.

With EHR only, VAR.330853, 330856, 330862, 331862 and Base Equipment.

1шт.

29

12647804

WASHER,6.15mm ID x 16mm OD x 3mm Thk

4шт.

With EHR only, VAR.330853, 330856, 330862, 331862 and Base Equipment.

1шт.

30

82023460

STUD,M7.85 x 19.50mm, Plastic

1шт.

31

47057810

DECAL

1шт.

32

84187815

SCREW,Pan Hd, M5.5 x 1.8 x 19mm

M12 x 19

4шт.
