Запчасти Case IH PUMA 115 (1.93.0[02]) - CONTROLS COVER - C6514 (10) - OPERATORS PLATFORM/CAB

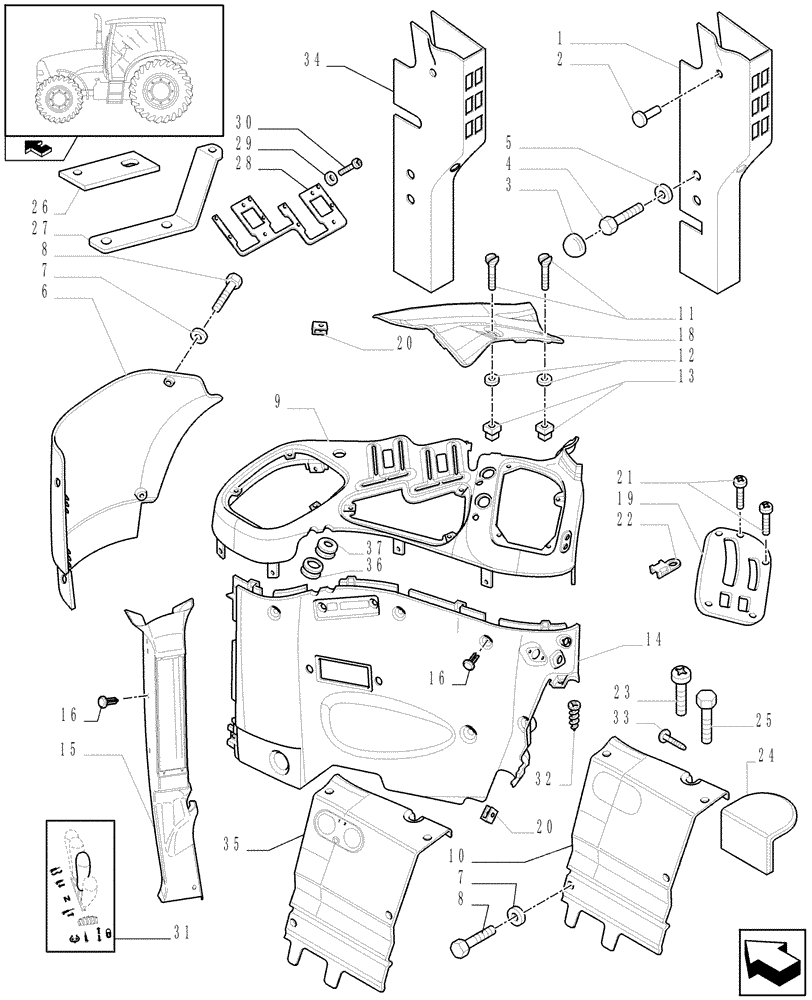

Схема запчастей Case IH PUMA 115 - (1.93.0[02]) - CONTROLS COVER - C6514 (10) - OPERATORS PLATFORM/CAB
3
9
2
3
1
15
8
3
home
36
4
2
2
8
30
9
7
24
6
32
1
2
31
34
2
2
37
6
2
1
2
2
1
0
5
2
29
33
5
28
10
0
7
1
2
1
1
4
7
35
1
1
16
16
8

Артикул

Название

Примечание

Количество

1

87315847

PADDING

, Serial Range: -C6000

1шт.

1

87567842

SOFT TRIM

, Serial Range: -C6001

1шт.

W/Equip. 336761-337761

1шт.

1

87479489

PADDING

RH, Start Serial: D6000

1шт.

2

83998841

STUD,7.85mm OD x 19.50mm L

3шт.

3

82012814

CAP,M10

2шт.

4

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

2шт.

5

87734153

SPACER,10.6mm ID x 36mm OD x 7.5mm L

2шт.

5

82021889

SPACER

2шт.

W/Equip. 336761-337761

1шт.

6

47057394

SOFT TRIM

RH

1шт.

7

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

7шт.

8

10902021

BOLT,Hex, M6 x 12mm, Cl 8.8

7шт.

9

47057482

PANEL

Incl. 20, Serial Range: -C5844

1шт.

l/electronic hydraulic remotes

1шт.

9

87614879

PANEL

Incl. 20, Start Serial: D5844

1шт.

l/electronic hydraulic remotes

1шт.

9

47057214

PANEL

RH, Incl. 20, Serial Range: -C5844

1шт.

With EHR only, VAR.330853, 330856, 330862, 331862 and Base Equipment.

1шт.

9

87614856

PANEL

Incl. 20, Start Serial: D5844

1шт.

With EHR only, VAR.330853, 330856, 330862, 331862 and Base Equipment.

1шт.

10

82027462

PANEL

, Serial Range: -C6000

1шт.

Located Behind Seat, Underneath Rear Window

1шт.

11

47057750

PIN

2шт.

12

81875581

RETAINER,6mm ID x 12.5mm OD x 0.5mm Thk

2шт.

13

83994515

SPRING CLIP

2шт.

14

47057484

PANEL

Incl. 20, Serial Range: -C5844

1шт.

14

87710212

PANEL

Incl. 20, Start Serial: D5844

1шт.

15

87388211

PADDING

1шт.

16

82023482

ANCHOR,Button Hd, 8.25mm x 35.00mm

4шт.

17

13276414

SCREW,Pozidriv Pan Hd, M6 x 20mm, Cl 5.8, Full Thd

1шт.

18

47057398

SOFT TRIM

1шт.

19

47057011

PANEL

1шт.

20

14371271

SPRING NUT,M5, U, 23.7mm long

, Serial Range: -C5844

4шт.

20

87567755

SPRING NUT,M5

NUT, Start Serial: D5844

3шт.

21

47056669

SCREW

4шт.

22

47056773

RETAINER COLLAR,5mm ID x 19.1mm L x 9.5mm W

4шт.

23

13276217

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 5.8, Full Thd

6шт.

24

82024718

PANEL

1шт.

25

13274214

SCREW,Pozidriv Pan Hd, M5 x 16mm, Cl 5.8, Full Thd

, Serial Range: -C5844

5шт.

26

47057502

PLATE

1шт.

27

47057348

PLATE

, Serial Range: -C5844

1шт.

27

87570997

BRACKET

, Start Serial: D5844

1шт.

28

47057803

PLATE

1шт.

With EHR only, VAR.330853, 330856, 330862, 331862 and Base Equipment.

1шт.

29

12647804

WASHER,6.15mm ID x 16mm OD x 3mm Thk

4шт.

With EHR only, VAR.330853, 330856, 330862, 331862 and Base Equipment.

1шт.

30

47057806

SCREW

, Serial Range: -C5844

4шт.

With EHR only, VAR.330853, 330856, 330862, 331862 and Base Equipment.

1шт.

31

47057810

DECAL

1шт.

32

15647007

SELF-TAP SCREW,Pozidriv Pan Hd, M12 x 19mm

M12 x 19, Start Serial: D5844

4шт.

33

82023460

STUD,M7.85 x 19.50mm, Plastic

, Start Serial: D6000

1шт.

34

87740505

SOFT TRIM

RH, Serial Range: D6001-C6000

1шт.

W/Equip. 336761-337761

1шт.

34

87479488

PADDING

RH, Start Serial: D6000

1шт.

With Rear ISOBUS Socket, VAR.330079-331761-332761-334761-336761-337761

1шт.

35

87479668

PANEL

, Start Serial: D6000

1шт.

Located Behind Seat, Underneath Rear Window

1шт.

36

D5NN14603K

GROMMET

14.27 x 19.05 x 25.40

1шт.

37

83905020

GROMMET,6.35mm ID x 22.22mm OD, Black

6.35 x 16.25 x 22.25

1шт.

Выбрано товаров: 60
