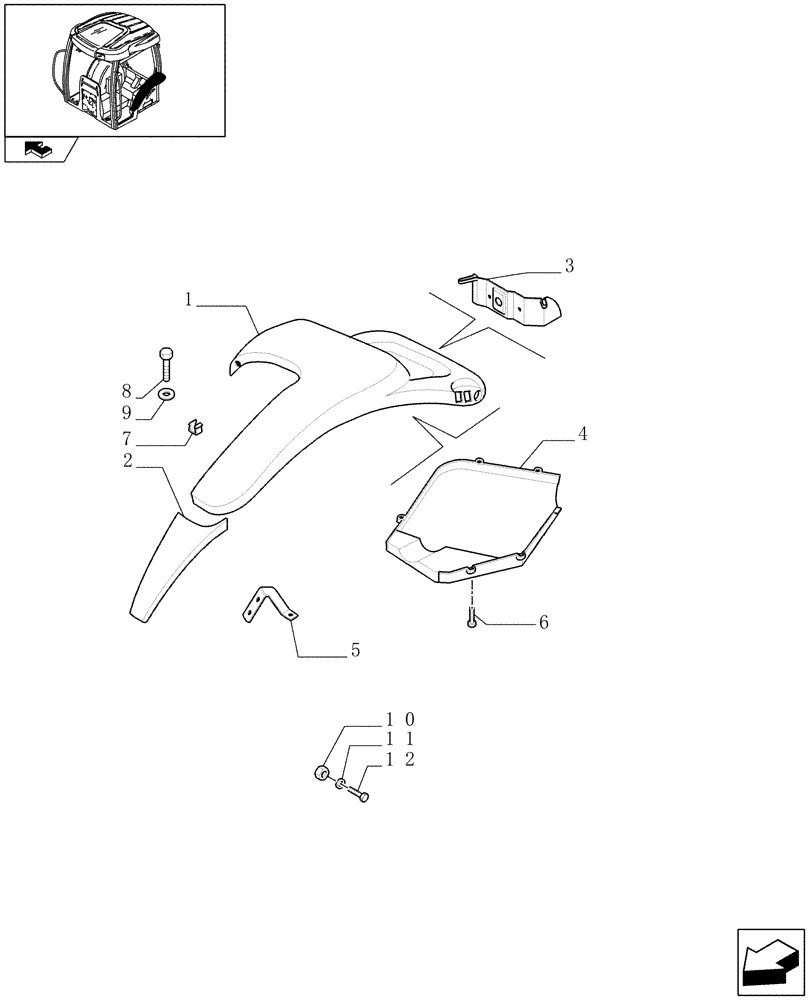

Запчасти Case IH PUMA 115 (1.92.5[01A]) - REAR FENDERS - D6722 (10) - OPERATORS PLATFORM/CAB

1

87554853

REAR FENDER

LH

1шт.

1

87554854

REAR FENDER

RH

1шт.

2

82038501

REAR FENDER

LH

1шт.

2

82038500

REAR FENDER

RH

1шт.

3

82032773

COVER

LH

1шт.

3

82032772

COVER

RH

1шт.

4

87304236

SUPPORT

LH

1шт.

4

87304235

SUPPORT

RH

1шт.

5

82037053

SUPPORT

LH

1шт.

5

82037051

SUPPORT

RH

1шт.

6

87352109

SCREW,Phillips Drive, Pan HD, M10 x 50mm

50x10

20шт.

6

16043021

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

2шт.

6

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

10шт.

6

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

14шт.

7

82010838

SPRING CLIP,0.5mm Thk

6шт.

8

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

2шт.

9

12628921

WASHER,8.15mm ID x 25mm OD x 4mm Thk

2шт.

10

15896211

NUT,M6, Cl 8

2шт.

11

84188433

WASHER,6.15mm ID x 18mm OD x 2mm Thk

4шт.

12

84187823

SCREW,Torx, Pan HD, M6 x 25mm, Cl 4.8

2шт.
