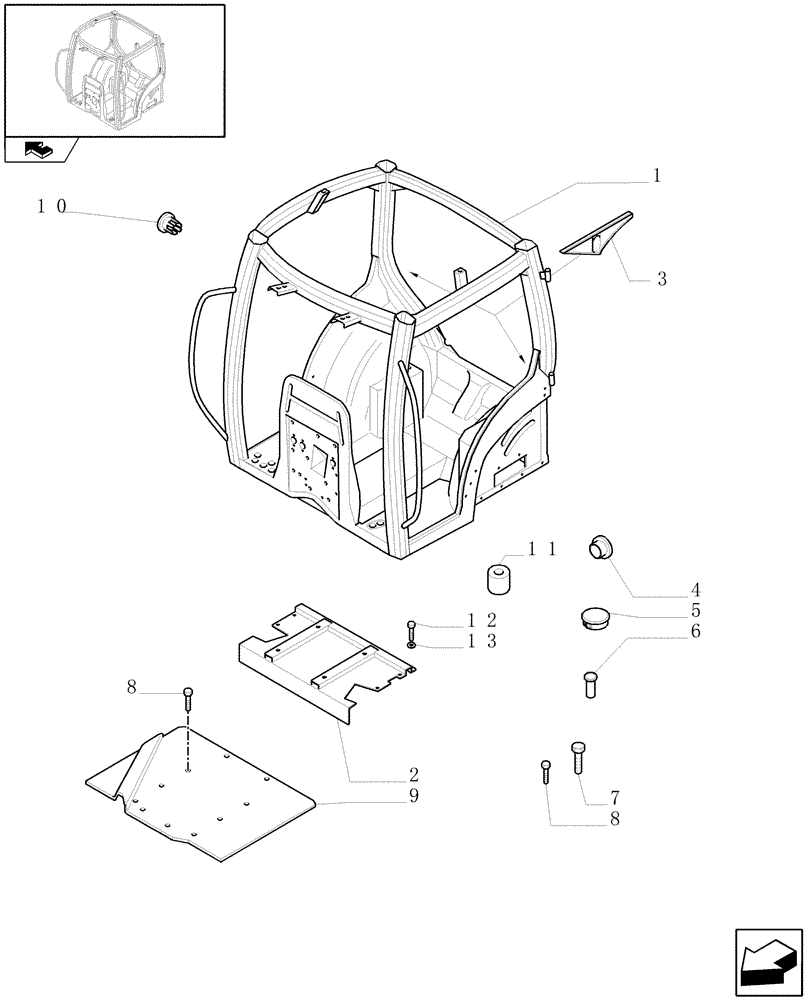

Запчасти Case IH PUMA 115 (1.92.1) - CAB FRAME (10) - OPERATORS PLATFORM/CAB

1

87387582

CAB BODY

W/Fixed Windscreen

1шт.

1

87387142

CAB BODY

W/Opening Windscreen

1шт.

1

87387641

CAB BODY

W/Suspended CAB

1шт.

2

82033893

PLATE

1шт.

3

82036801

PLUG

Rear Window, RH

1шт.

3

82036800

PLUG

Rear Window, LH

1шт.

4

82037720

RIVET,Plastic Snap, M3 x 4.50mm

3.4

2шт.

4

82037658

RIVET,9mm OD x 4.5mm L

5.6

2шт.

4

82003283

PLUG,10.5mm OD

8.15

8шт.

4

82032838

PLUG,20.7mm ID x 25mm OD x 10.5mm Thk

20.7

2шт.

Black

1шт.

4

84234592

PLUG,M20.7 x 10.5mm

20.7MM

2шт.

Natural

1шт.

5

82031549

BLANK-OFF PLUG,35mm OD, Black

31.5

3шт.

5

87681201

PLUG,M16 x 11.70mm

16 x 11.7

4шт.

St. Valentin Production only

1шт.

6

82024990

RIVET,Flng, 7mm OD x 16mm L

M5

2шт.

6

82024991

NUT,M6

M6

1шт.

6

82024992

RIVET,Flng, 11mm OD x 19.5mm L

M8

15шт.

6

82014551

NUT

10 x 1.5

5шт.

7

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

2шт.

8

83929012

CAPTIVE WASHER SCREW,HWH, M6.3 x 1.8 x 20mm

18шт.

9

87399598

CAB FLOOR

1шт.

10

81865132

PLUG,11.20mm

2шт.

11

82027697

BUSHING,9.5mm ID x 18mm OD x 17mm L

W/Opening Windscreen

8шт.

12

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

13

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

6шт.
