Запчасти Case IH PUMA 115 (1.91.4/04) - ELECTRONIC MID MOUNTED VALVES - HARNESS (VAR.330560-330561-330562-332821-333821-334821) (10) - OPERATORS PLATFORM/CAB

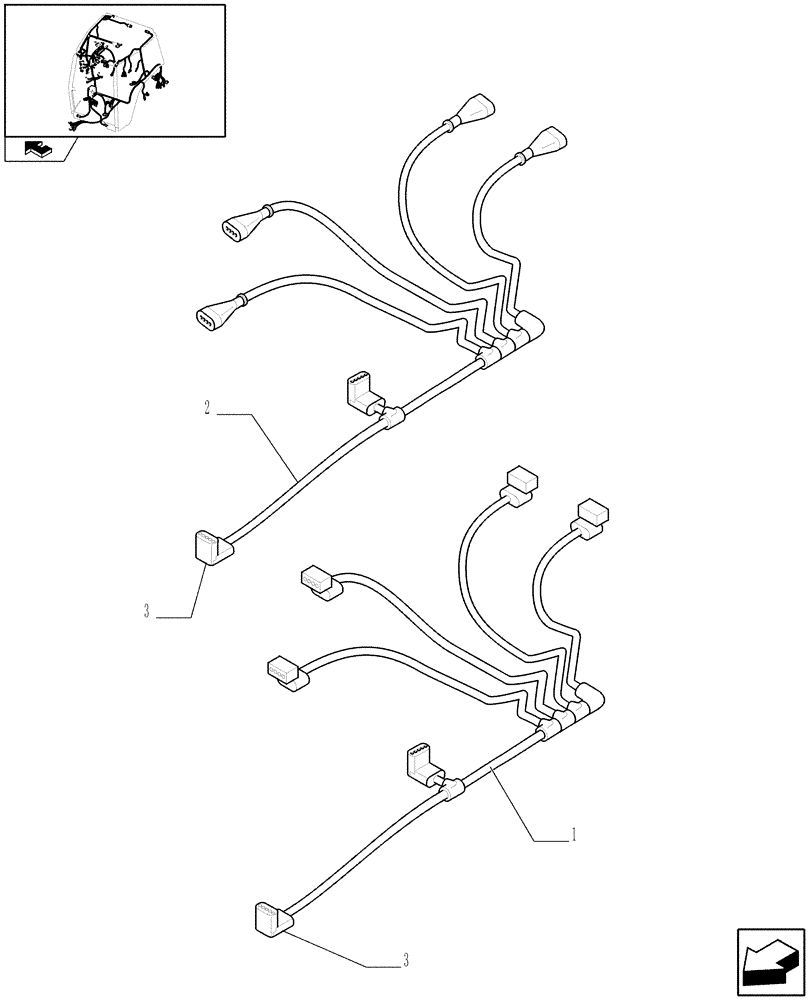

Схема запчастей Case IH PUMA 115 - (1.91.4/04) - ELECTRONIC MID MOUNTED VALVES - HARNESS (VAR.330560-330561-330562-332821-333821-334821) (10) - OPERATORS PLATFORM/CAB
3
2
1
3
home

Артикул

Название

Примечание

Количество

1

87311803

WIRE HARNESS

Mid Mount EHR, Incl. 3, Serial Range: -C6400

1шт.

2

84191832

WIRE HARNESS

Mid Mounted EHR, Incl. 3, Serial Range: D6400-C6549

1шт.

2

84256467

WIRE HARNESS

Mid Mounted EHR, Incl. 3, Start Serial: D6549

1шт.

3

87345428

TERMINAL CONNECTOR,120Ohm/0.5W, 42 Pins

CAN Bus Terminator

1шт.

Выбрано товаров: 4
