Запчасти Case IH PUMA 115 (1.91.4/01[01]) - ENGINE BLOCK AND TRANSMISSION HEATER, 110 V - C6470 (VAR.330205) (10) - OPERATORS PLATFORM/CAB

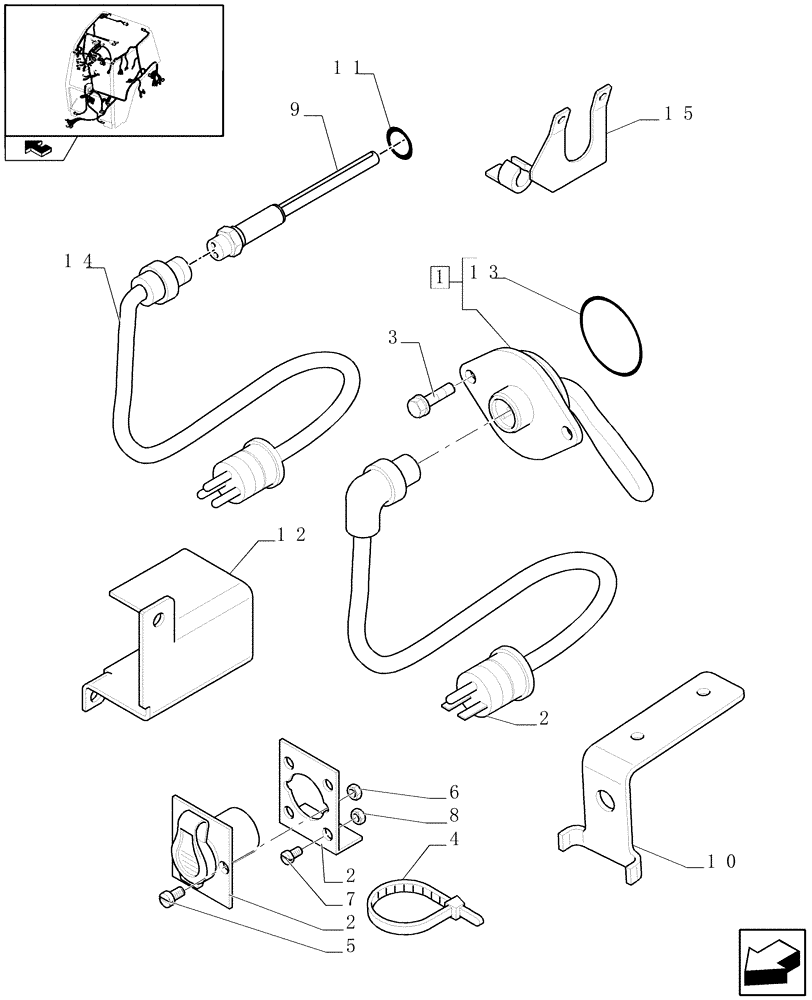

Схема запчастей Case IH PUMA 115 - (1.91.4/01[01]) - ENGINE BLOCK AND TRANSMISSION HEATER, 110 V - C6470 (VAR.330205) (10) - OPERATORS PLATFORM/CAB
15
12
1
3
2
11
9
6
5
8
4
14
13
7
10
home
2
2

Артикул

Название

Примечание

Количество

1

4891287

HEATER

1шт.

2

82030481

ELECTRIC CABLE

, Serial Range: -C5998

1шт.

2

87756876

ELECTRIC CABLE

, Start Serial: D5998

1шт.

3

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

4

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

CABLE STRAP

2шт.

5

13276414

SCREW,Pozidriv Pan Hd, M6 x 20mm, Cl 5.8, Full Thd

2шт.

6

86619800

FLANGE NUT,M6 x 1, Cl 8

2шт.

7

13271914

SCREW,Pozidriv Pan Hd, M4 x 10mm, Cl 5.8, Full Thd

4шт.

8

10794011

NUT,M4, Cl 8

4шт.

9

87718030

HEATER

1шт.

10

87633005

BRACKET

1шт.

11

81903721

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

2шт.

12

87712833

GUARD

1шт.

13

4891258

O-RING,1.984" ID x 2.262" OD x 0.139"

1шт.

14

82030791

ELECTRIC CABLE

1шт.

15

87651112

BRACKET

1шт.

Выбрано товаров: 16
