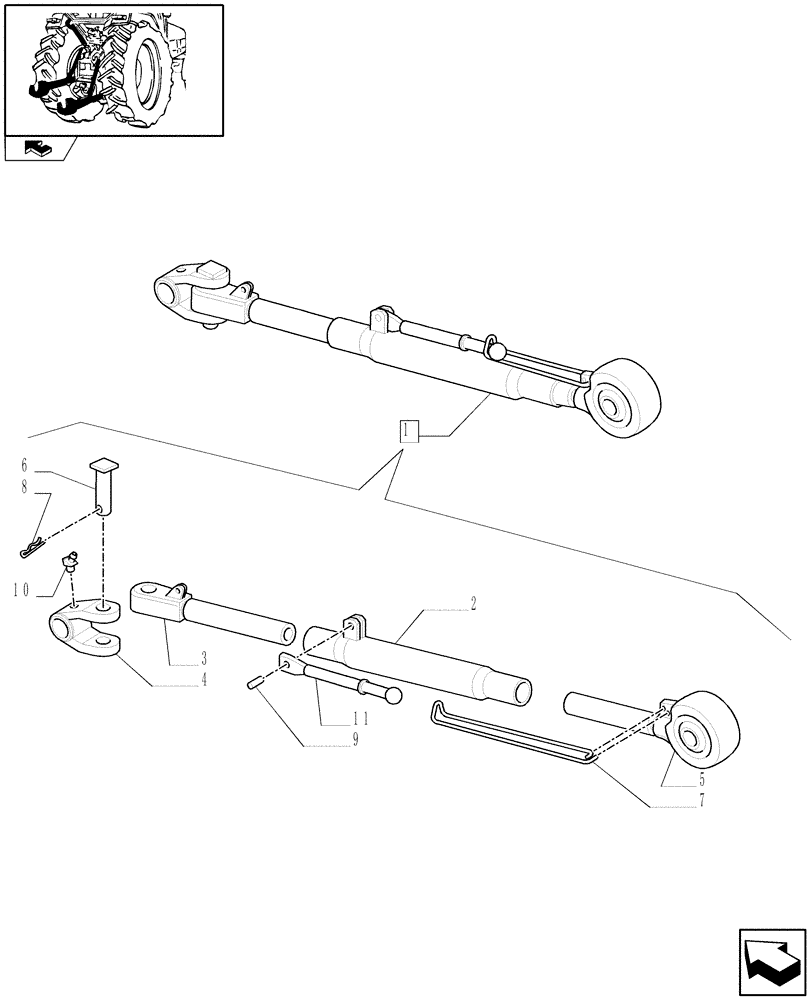

Запчасти Case IH PUMA 115 (1.89.6/01A) - THIRD-POINT TOP LINK - BREAKDOWN (VAR.331920) (09) - IMPLEMENT LIFT

1

47137088

UPPER LINK

TOP LINK ASSY

1шт.

2

5198121

TUBE,M36 x 3

1шт.

3

82012614

TRACK ROD END ASSY,M36 x 3, LH Thread

1шт.

4

5161787

YOKE,28mm D x 28mm D

1шт.

5

5198083

LIFT LINK END ASSY,M36 x 3

1шт.

6

5161789

PIN,34mm OD x 91mm L

1шт.

7

5198079

SPRING

1шт.

8

10797801

COTTER PIN,M6.3 x 50.00mm

1шт.

9

14613471

ROLL PIN,12mm OD x 40mm L

1шт.

10

13407811

LUBE NIPPLE,Angled - 45 Degree, M10 x 1 x 27.00mm

1шт.

11

5172394

LEVER

1шт.
