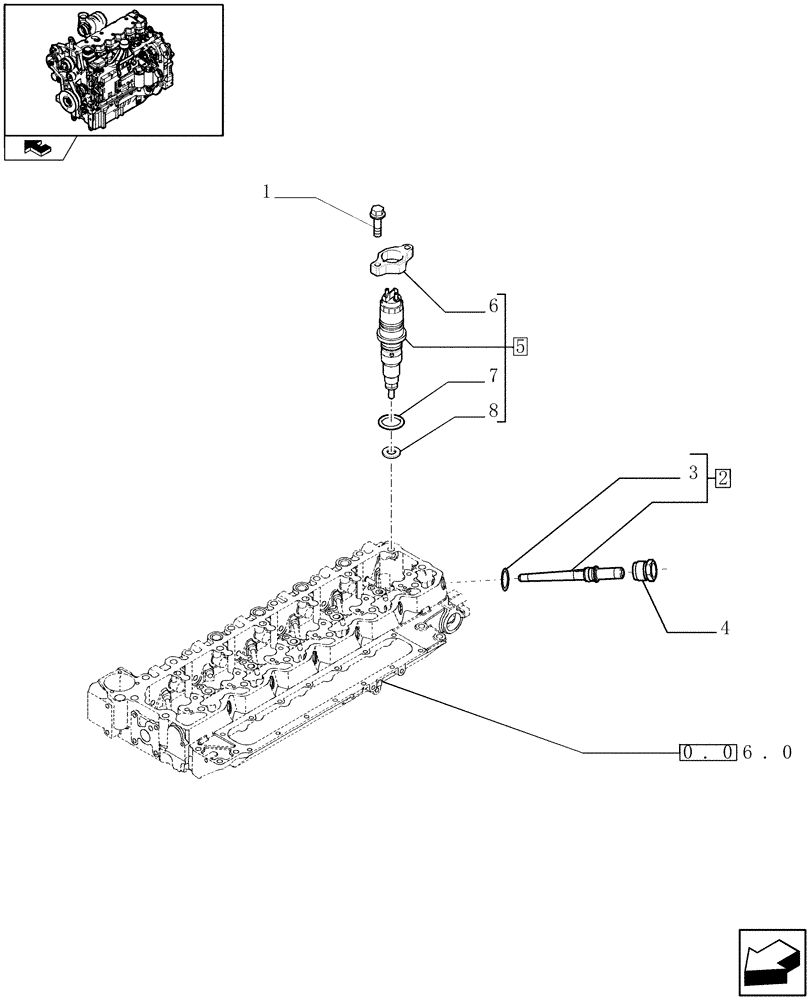

Запчасти Case IH PUMA 115 (0.14.0[02]) - INJECTION EQUIPMENT - INJECTOR (01) - ENGINE

1

4895483

BOLT,Flng, M6 x 1 x 35mm

12шт.

2

2854606

FUEL TUBE,Connector Assembly

- ASSY

6шт.

3

4890929

O-RING,3mm Thk x 11mm ID

1шт.

4

4893739

TUBE NUT,Hex, M22 x 1.5

6шт.

5

2854608

FUEL SYSTEM INJECTOR

ASSY

6шт.

5

2854608R

REMAN-FUEL INJECTOR

Puma 115, Use w/ Eng. P/N's 87542028(unboosted) & 87516256(boosted) Both Tier 3

6шт.

*

Puma 125, Use w/Eng. P/N's 87542026(unboosted) & 87312076(boosted) Both Tier 3

1шт.

*

Puma 140, Use w/ Eng. P/N's 87542024(unboosted) & 87312077(boosted) Both Tier 3

1шт.

*

Puma 155, Use w/ Eng. P/N's 87542022(unboosted) & 87312078(boosted) Both Tier 3

1шт.

5

2854608C

CORE-FUEL INJECTOR

Return Number

6шт.

6

2854609

BRACKET

1шт.

7

4890926

O-RING,3mm Thk x 20.9mm ID, 60 Duro

1шт.

8

4899689

SEALING WASHER,7mm ID x 15mm OD x 1.5mm Thk

1шт.
