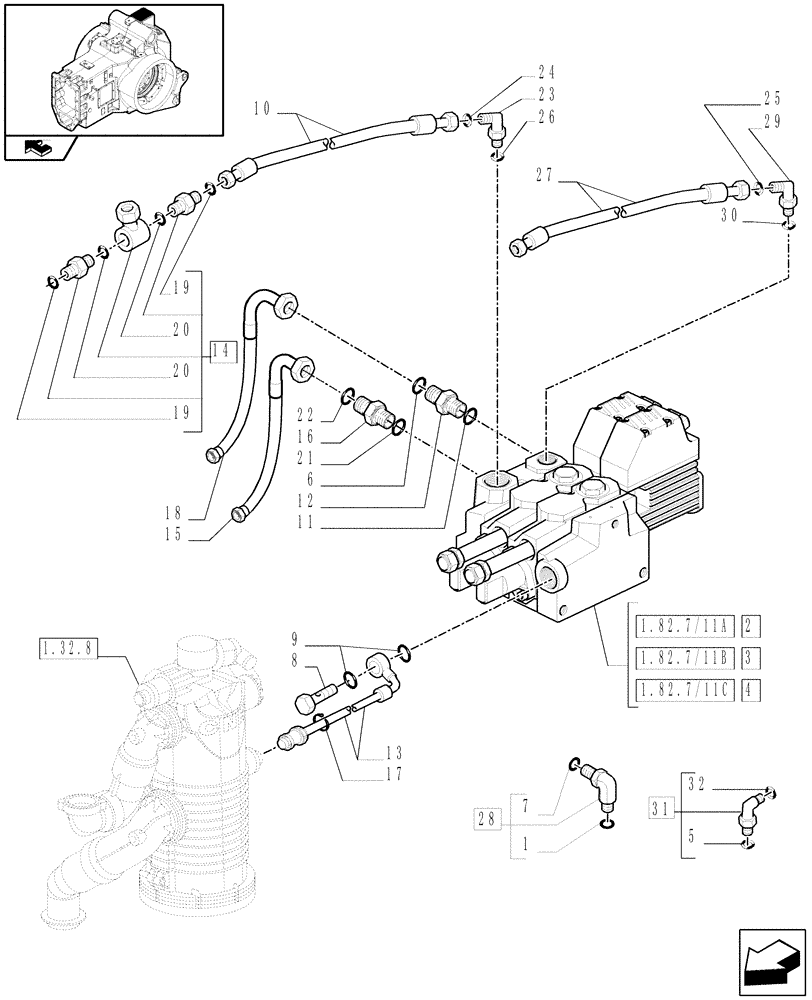

Запчасти Case IH PUMA 115 (1.82.7/11) - ELECTRONIC MID MOUNTED VALVES (VAR.330560-330561-330562-332821-333821-334821-335821) (07) - HYDRAULIC SYSTEM

1

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

2

82038052

CONTROL VALVE

, Serial Range: -C6544

1шт.

Electronic Mid Mounted Valves, 2 Slice, VAR.330560-332821-334821

1шт.

2

84214464

CONTROL VALVE

, Start Serial: D6544

1шт.

Electronic Mid Mounted Valves, 2 Slice, VAR.330560-332821-334821

1шт.

2

84214464R

REMAN-HYD VALVE

Reman Valve Assy

1шт.

2

84214464C

CORE-VALVE HYD

Core Return Number

1шт.

3

82038054

CONTROL VALVE

, Serial Range: -C6544

1шт.

Electronic Mid Mounted Valves, 3 Slice, VAR.330561-333821

1шт.

84214465R

REMAN-HYD VALVE

PUMA 115, PUMA 125, PUMA 140, PUMA 155 all (1/07-11/09), Reman For New P/N 82038054

1шт.

84214465C

CORE-VALVE HYD

Return Number

1шт.

3

84214465

CONTROL VALVE

, Start Serial: D6544

1шт.

Electronic Mid Mounted Valves, 3 Slice, VAR.330561-333821

1шт.

84214465R

REMAN-HYD VALVE

PUMA 115, PUMA 125, PUMA 140, PUMA 155 all Start Serial: D6544 (1/07-11/09)

1шт.

84214465C

CORE-VALVE HYD

Return Number

1шт.

4

82038055

CONTROL VALVE

, Serial Range: -C6544

1шт.

Electronic Mid Mounted Valves, 4 Slice, VAR.330562

1шт.

4

84214466

CONTROL VALVE

, Start Serial: D6544

1шт.

Electronic Mid Mounted Valves, 4 Slice, VAR.330562

1шт.

5

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

6

82019811

SEAL,11.6mm ID x 16.5mm OD x 1.5mm Thk

1шт.

7

82016749

PLUG,11/16-16 ORFS

1шт.

8

5112588

BANJO BOLT,M22 x 1.5 x 40mm

1шт.

9

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

2шт.

10

87695799

FLEXIBLE HOSE,15.88mm ID x 850mm L, SAE 100R16

Supply

1шт.

11

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

12

82019693

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORFS

1шт.

13

87635314

HOSE

Return, Serial Range: -C6746

1шт.

13

87736301

HOSE ASSY.,15.88mm ID x 800mm L, SAE 100R3

Return, Start Serial: D6746

1шт.

14

82018814

CHECK VALVE,9/16" - 18 JIC x 9/16" - 18 ORFS x 9/16" - 18 ORFS

1шт.

15

87389072

FLEXIBLE HOSE

Load Sense, 980 MM

1шт.

16

5185045

HYD CONNECTOR

1шт.

17

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

CABLE STRAP

3шт.

18

87520008

FLEXIBLE HOSE

Pilot Supply, 780 MM

1шт.

19

81827528

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

20

81844850

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

21

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

1шт.

22

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

23

86579690

ELBOW,90 Degree, 13/16"-18 ORFS x M16 x 1.5 ORB

1шт.

24

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

M9.25 ID x 1.78 Thk

1шт.

25

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

26

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

27

87520009

FLEXIBLE HOSE

Pilot Return

1шт.

28

86579686

90 ELBOW,11/16"-16 ORFS x M14 x 1.5 ORB

1шт.

28

81865683

ELBOW,90 Deg, 11/16-16 ORFS x M14 x 1.5 ORB

M14X1.5 - 11/16-16

1шт.

29

5185548

ELBOW,M14 x 1.5mm ORB, 13/16"-16" ORFS

M14X1.5 -13/16-16

1шт.

30

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

31

5194728

90 ELBOW

M22X1.5 - 1-14

1шт.

32

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

33

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.
