(1.81.9/05[03]) - 4 HYDRAULIC FRONT COUPLERS FOR NON INTEGRATED FRONT HPL - C6335 (VAR.330172)

Запчасти Case IH PUMA 115 (1.81.9/05[03]) - 4 HYDRAULIC FRONT COUPLERS FOR NON INTEGRATED FRONT HPL - C6335 (VAR.330172) (07) - HYDRAULIC SYSTEM

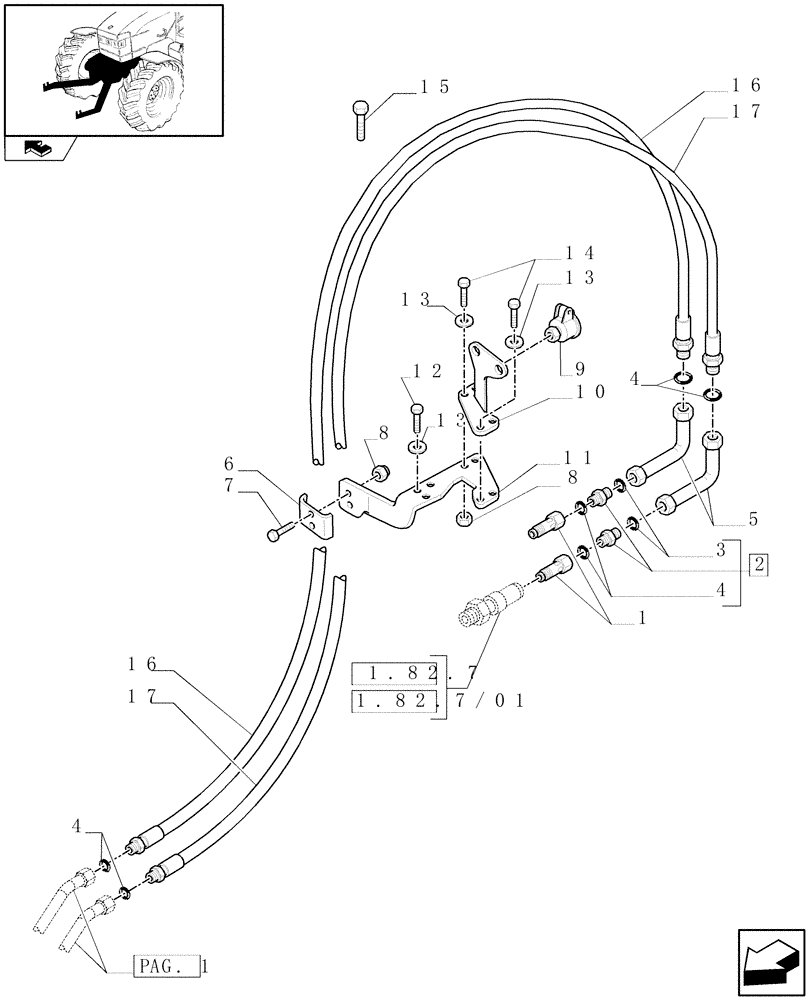

Схема запчастей Case IH PUMA 115 - (1.81.9/05[03]) - 4 HYDRAULIC FRONT COUPLERS FOR NON INTEGRATED FRONT HPL - C6335 (VAR.330172) (07) - HYDRAULIC SYSTEM
4
13
13
8
a
.
5
15
16
2
16
11
g
3
4
10
17
14
9
8
7
12
1.82.7/01
1
6
p
4
home
1
1.82.7
17
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

83972881

COUPLING

2шт.

2

5185524

HYD CONNECTOR

2шт.

3

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

1шт.

4

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

6шт.

5

47057034

TUBE

2шт.

6

47057073

CLAMP

1шт.

7

16044021

SCREW,Hex, M8 x 1.25 x 40mm, Cl 8.8

2шт.

8

87597953

NUT,M8, 1.25 Pitch, 10.6mm High, Cl 8, ZND

3шт.

9

47057077

SOCKET

2шт.

10

87555045

BRACKET

1шт.

11

87555049

BRACKET

1шт.

12

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

13

14499431

WASHER,8.4mm ID x 14mm OD x 1.6mm Thk

5шт.

14

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

15

16044521

SCREW,Hex, M8 x 65mm, Cl 8.8

2шт.

16

47057084

FLEXIBLE HOSE,12.70 mm ID x 3800.00 mm, SAE J516

RH

1шт.

17

47057085

FLEXIBLE HOSE,12.70 mm ID x 3900.00 mm, SAE J516

RH

1шт.
