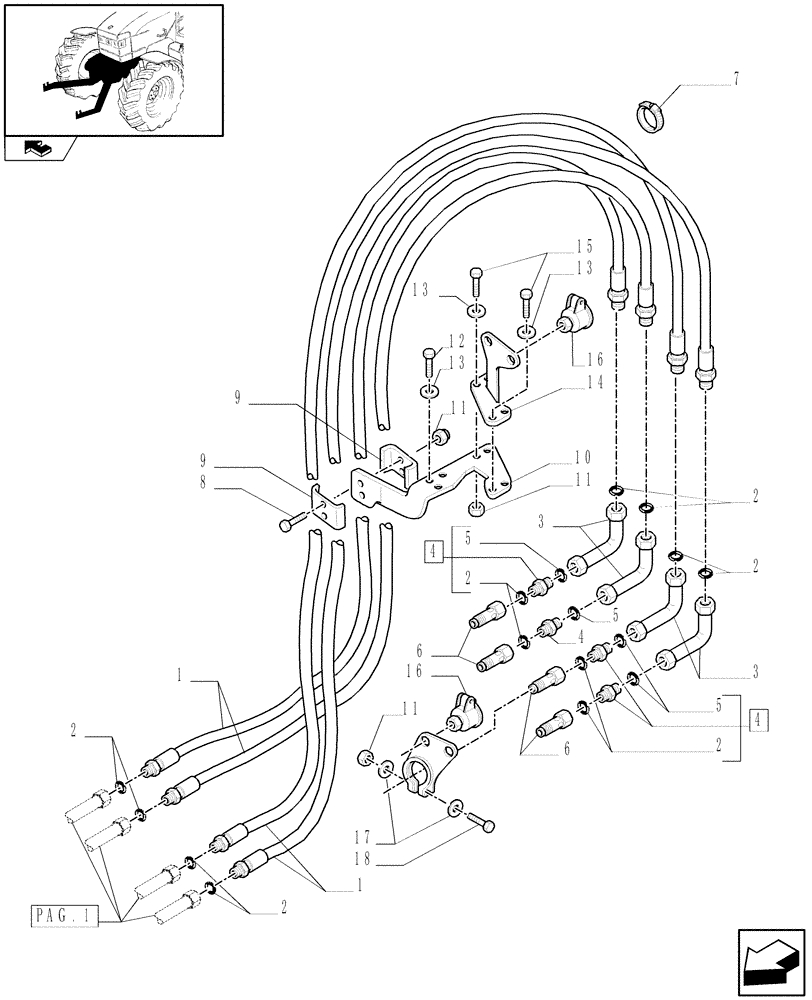

Запчасти Case IH PUMA 115 (1.81.9/04[04]) - 4 HYDRAULIC FRONT COUPLERS FOR INTEGRATED FRONT HPL - D5857 (VAR.331172) (07) - HYDRAULIC SYSTEM

1

47057087

HOSE,12.70 mm ID x 4100.00 mm, SAE J516

Incl. 2

4шт.

2

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

12шт.

3

47057034

TUBE

4шт.

4

5185524

HYD CONNECTOR

Incl. 2, 5

4шт.

5

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

4шт.

6

83972881

COUPLING

4шт.

7

14560287

CABLE TIE,207.00mm L

COLLAR

6шт.

8

16044021

SCREW,Hex, M8 x 1.25 x 40mm, Cl 8.8

2шт.

9

47057073

CLAMP

2шт.

10

87555049

BRACKET

1шт.

11

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

4шт.

12

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

13

14499401

WASHER,8.4mm ID x 14mm OD x 1.6mm Thk

5шт.

14

87555045

BRACKET

1шт.

15

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

16

47057077

SOCKET

4шт.

17

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

18

16044521

SCREW,Hex, M8 x 65mm, Cl 8.8

1шт.
