Запчасти Case IH PUMA 115 (1.81.9/04[03]) - 4 HYDRAULIC FRONT COUPLERS FOR INTEGRATED FRONT HPL - C5857 (VAR.331172) (07) - HYDRAULIC SYSTEM

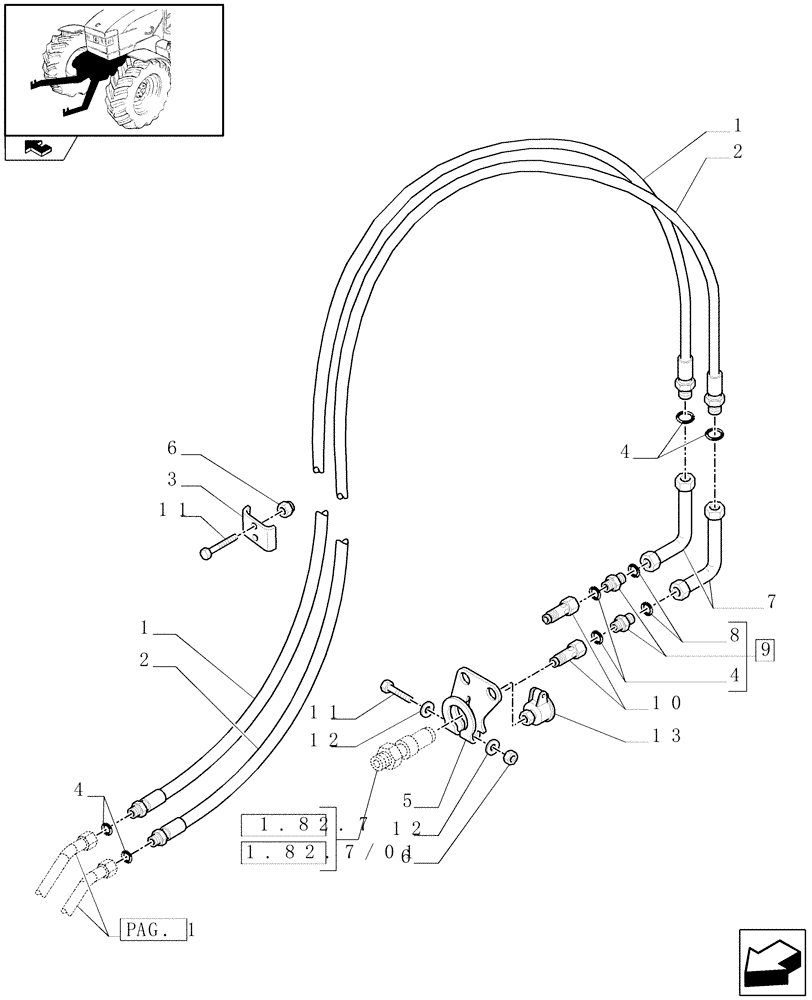

Схема запчастей Case IH PUMA 115 - (1.81.9/04[03]) - 4 HYDRAULIC FRONT COUPLERS FOR INTEGRATED FRONT HPL - C5857 (VAR.331172) (07) - HYDRAULIC SYSTEM
1
1
11
13
5
7
9
2
8
4
1
g
p
6
2
a
10
3
home
11
6
12
4
4
1.82.7
1.82.7/01
12
.

Артикул

Название

Примечание

Количество

1

47057084

FLEXIBLE HOSE,12.70 mm ID x 3800.00 mm, SAE J516

RH

1шт.

2

47057085

FLEXIBLE HOSE,12.70 mm ID x 3900.00 mm, SAE J516

RH

1шт.

3

47057073

CLAMP

1шт.

4

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

6шт.

5

47057026

RETAINING PLATE

1шт.

6

86528579

NUT,M8 x 1.25

3шт.

7

47057034

TUBE

2шт.

8

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

1шт.

9

5185524

HYD CONNECTOR

2шт.

10

83972881

COUPLING

2шт.

11

16044521

SCREW,Hex, M8 x 65mm, Cl 8.8

3шт.

12

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

13

47057077

SOCKET

2шт.

Выбрано товаров: 13
