(1.81.9[02]) - 2 HYDRAULIC FRONT COUPLERS FOR NON INTEGRATED FRONT HPL - C6335 (VAR.330814)

Запчасти Case IH PUMA 115 (1.81.9[02]) - 2 HYDRAULIC FRONT COUPLERS FOR NON INTEGRATED FRONT HPL - C6335 (VAR.330814) (07) - HYDRAULIC SYSTEM

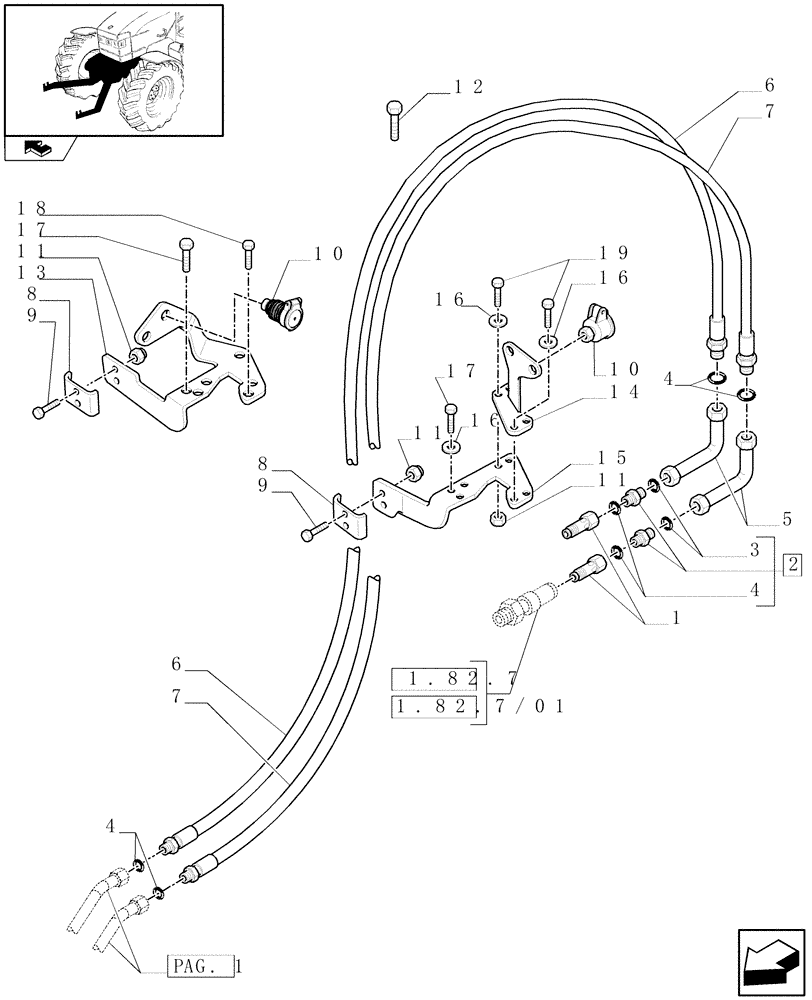

Схема запчастей Case IH PUMA 115 - (1.81.9[02]) - 2 HYDRAULIC FRONT COUPLERS FOR NON INTEGRATED FRONT HPL - C6335 (VAR.330814) (07) - HYDRAULIC SYSTEM
1
17
10
16
10
5
6
16
.
p
14
16
17
g
8
11
1
7
1.82.7/01
1.82.7
home
3
11
4
13
9
6
7
a
4
11
19
15
18
8
2
9
12
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

83972881

COUPLING

2шт.

2

5185524

HYD CONNECTOR

1"-14, 6 1/2, Includes Ref. 21, 22

2шт.

3

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

2шт.

4

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

6шт.

5

47057034

TUBE

1"-14

2шт.

6

47057084

FLEXIBLE HOSE,12.70 mm ID x 3800.00 mm, SAE J516

RH

1шт.

7

47057085

FLEXIBLE HOSE,12.70 mm ID x 3900.00 mm, SAE J516

RH

1шт.

8

47057073

CLAMP

1шт.

9

16044024

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

2шт.

10

47057077

SOCKET

2шт.

11

87597953

NUT,M8, 1.25 Pitch, 10.6mm High, Cl 8, ZND

3шт.

12

16044524

SCREW,Hex, M8 x 1.25 x 65mm, Cl 8.8

2шт.

13

47057604

SUPPORT

, Serial Range: -C6483

1шт.

14

87555045

BRACKET

, Start Serial: D6483

1шт.

15

87555049

BRACKET

, Start Serial: D6483

1шт.

16

14499431

WASHER,8.4mm ID x 14mm OD x 1.6mm Thk

5шт.

17

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

18

14442021

SCREW,Flat Csk Hd, M8 x 1.25 x 20mm, Cl 8.8

, Serial Range: -C6483

1шт.

19

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

, Start Serial: D6483

2шт.
