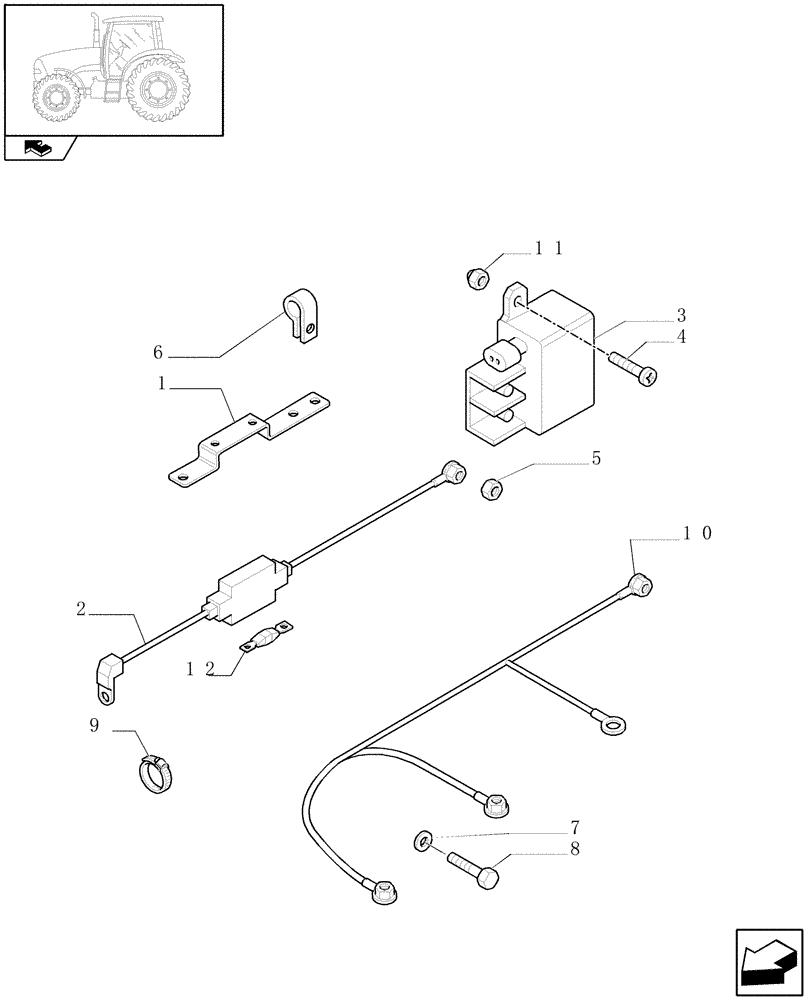

Запчасти Case IH PUMA 115 (1.75.4/01) - GRID HEATER (VAR.330204) (06) - ELECTRICAL SYSTEMS

1

87570805

BRACKET

1шт.

2

82036889

WIRE HARNESS

Grid Heater, Incl.12, Serial Range: -C6495

1шт.

2

84243701

WIRE HARNESS

Grid Heater, Incl.12, Start Serial: D6495

1шт.

3

82022813

RELAY,12V, High Current

1шт.

4

83998908

SCREW,Pozidriv Pan Hd, M6 x 12mm, Cl 4.8, Full Thd

M6x1x12

2шт.

5

15896211

NUT,M6, Cl 8

1шт.

6

10441490

COLLAR,14mm, Coat, 7mm Bolt Hole, P Type

1.14MM

1шт.

7

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

1шт.

8

11112124

SCREW,Hex, M12 x 20mm, Cl 8.8, Full Thd

1шт.

9

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

CABLE STRAP

2шт.

10

82036464

ELECTRIC CABLE,650mm L

1шт.

11

87533425

COVER,M6

M6

2шт.

12

11056290

FUSE,125A, Maxi

1шт.
