(1.75.3/01[02A]) - ELECTRICALLY CONTROLLED BATTERY ISOLATOR - HARNESS - D6400 (VAR.330798)

Запчасти Case IH PUMA 115 (1.75.3/01[02A]) - ELECTRICALLY CONTROLLED BATTERY ISOLATOR - HARNESS - D6400 (VAR.330798) (06) - ELECTRICAL SYSTEMS

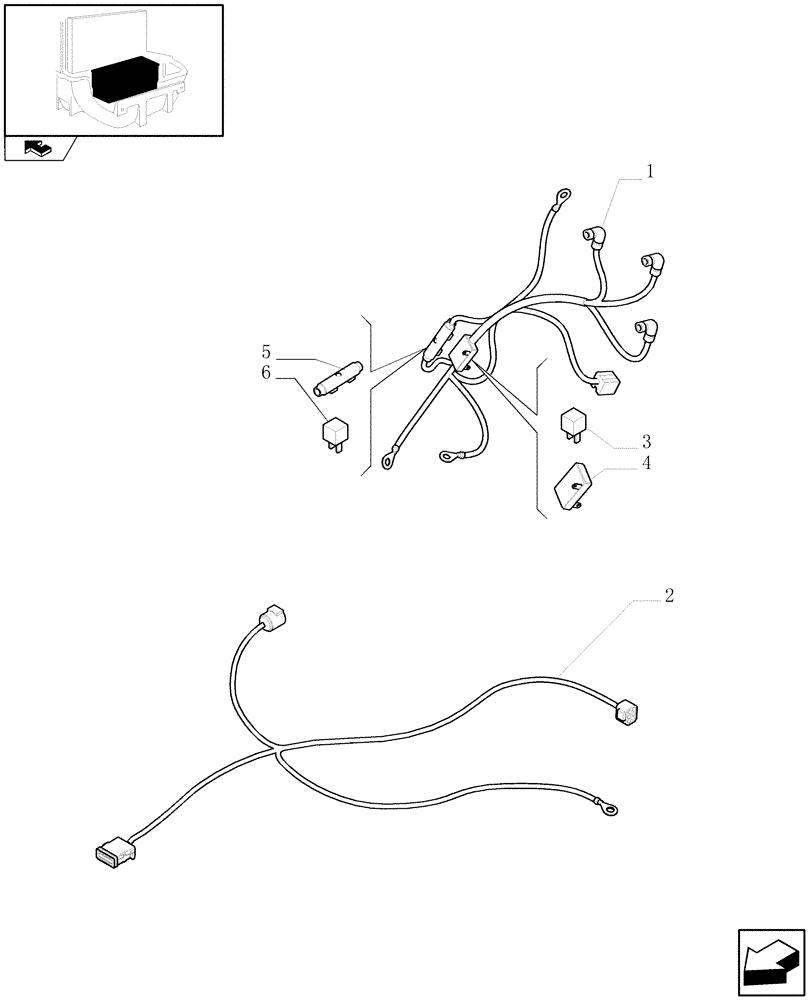

Схема запчастей Case IH PUMA 115 - (1.75.3/01[02A]) - ELECTRICALLY CONTROLLED BATTERY ISOLATOR - HARNESS - D6400 (VAR.330798) (06) - ELECTRICAL SYSTEMS
4
6
home
2
1
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84176680

WIRE HARNESS

To Cab, Serial Range: -C6725

1шт.

1

84249202

WIRE HARNESS

To Cab, Start Serial: D6725

1шт.

2

87639178

WIRE HARNESS

Control

1шт.

3

84174070

FUSE,30A, Orange

30AMP

2шт.

4

84175730

FUSE HOLDER

30A

2шт.

5

82027575

FUSE HOLDER

250A

2шт.

6

84174069

FUSE,250A

250AMP

2шт.

Выбрано товаров: 7
