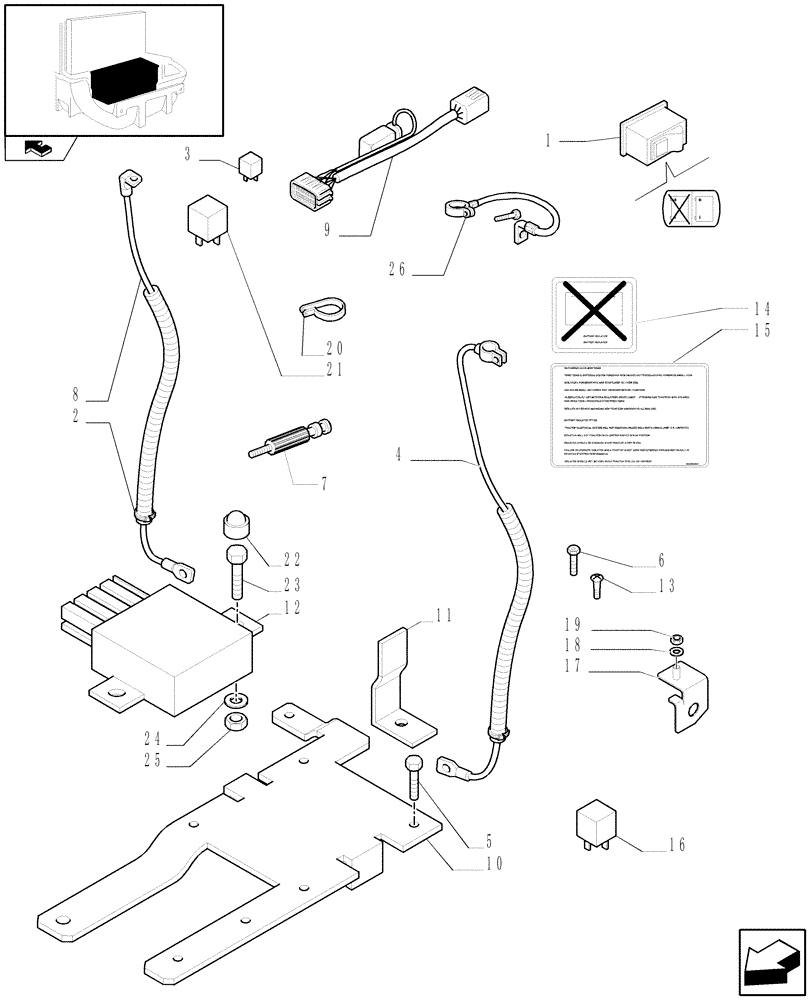

Запчасти Case IH PUMA 115 (1.75.3/01[01]) - ELECTRICALLY CONTROLLED BATTERY ISOLATOR (VAR.330798) (06) - ELECTRICAL SYSTEMS

1

87392866

SWITCH ASSY

Battery Isolator

1шт.

2

82001040

CABLE TIE,.19" x 11.5"

CABLE STRAP

1шт.

3

10395890

FUSE,5A, Mini, Beige

1шт.

4

87576880

ELECTRIC CABLE

1шт.

5

10977821

BOLT,M5 x 19.65mm OAL, Cl 8.8

6шт.

6

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

2шт.

7

82028966

TERMINAL CONNECTOR,M10 x 1.5, CL 8.8

1шт.

8

87305175

TERMINAL

, Serial Range: -C6725

1шт.

8

84249328

ELECTRIC CABLE

, Start Serial: D6725

1шт.

9

87309858

WIRE HARNESS

Radio Fly Lead

1шт.

10

87392817

BRACKET

1шт.

11

87392819

BRACKET

1шт.

12

87392809

RELAY,High Current, 12V, 190A

Battery Disconnect Switch

1шт.

13

13272117

SCREW,Pozidriv Pan Hd, M4 x 14mm, Cl 5.8, Full Thd

4шт.

14

82034482

DECAL

1шт.

15

82034481

DECAL

1шт.

16

87691156

RELAY

4 min delay

1шт.

RH "C" Pillar mounted

1шт.

16

87639044

RELAY

30 sec delay

1шт.

RH "C" Pillar mounted

1шт.

17

87395437

BRACKET

1шт.

18

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

1шт.

19

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

20

10441490

COLLAR,14mm, Coat, 7mm Bolt Hole, P Type

2шт.

20

10441890

CLAMP,22mm, Coat, 7mm Bolt Hole, P Type

1шт.

21

82023238

RELAY,12V, 20A

2шт.

22

87516431

CUP,for M8 Nut

4шт.

23

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

24

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

25

82879527

NUT,Hex, M8

2шт.

26

87391337

NEG BATTERY CABLE

1шт.
