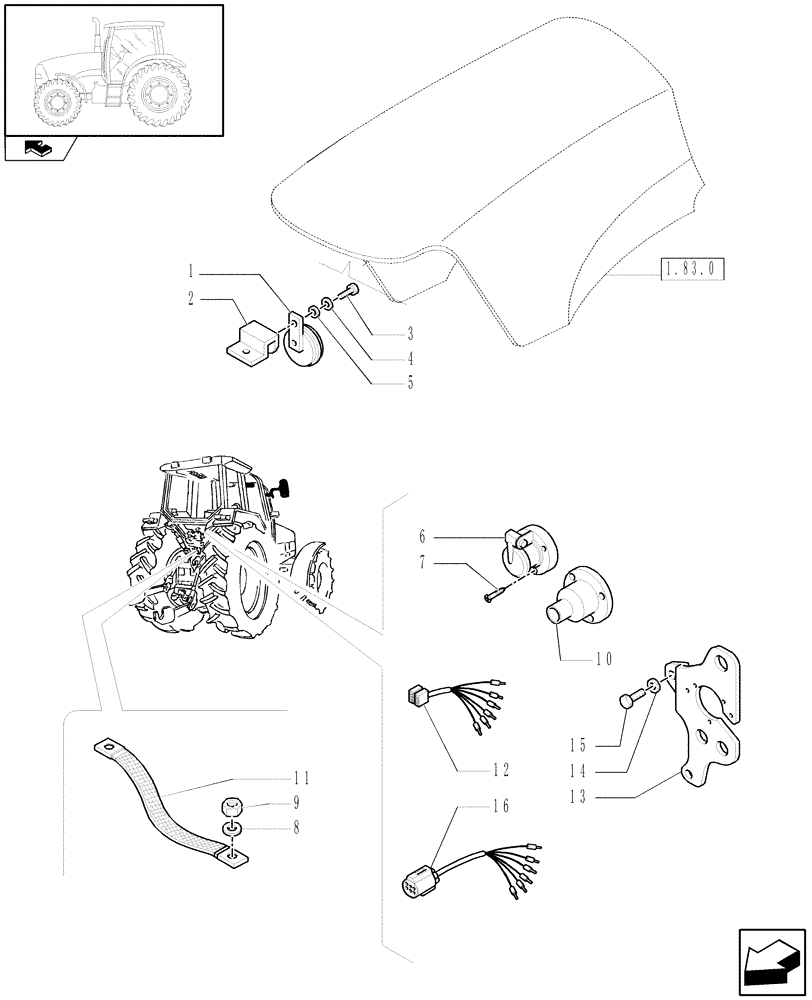

Запчасти Case IH PUMA 115 (1.75.1) - ELECTRIC SYSTEM, HORN & HORN MOUNTING (06) - ELECTRICAL SYSTEMS

1

87551747

HORN,12V

1шт.

2

82001658

BRACKET

1шт.

3

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

4

10516474

LOCK WASHER

D=6

1шт.

5

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

1шт.

6

83959716

POWER SOCKET,7 Pins

1шт.

7

260-14524

SELF-TAP SCREW,Cross Pan Hd, #10 x 1 1/2"

3шт.

8

12644904

WASHER

14 x 12

1шт.

9

12164021

NUT,Thick Hex, M14, 1.50mm Pitch, 11.00mm High, Cl 10, ZND

1шт.

10

82013268

BOOT

1шт.

11

87377887

CABLE,650mm L

1шт.

12

82037899

WIRE HARNESS

, Serial Range: -C5999

1шт.

13

87519125

BRACKET

1шт.

14

13550421

WASHER,10.2mm ID x 20mm OD x 2mm Thk

1шт.

15

15970521

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

16

87749128

WIRE HARNESS

, Start Serial: D5999

1шт.
