Запчасти Case IH PUMA 115 (1.68.6[09A]) - PNEUMATIC TRAILER BRAKE - CONTROL VALVE AND RELEVANT PARTS - D6753 (VAR.332727-332737-332739) (05) - REAR AXLE

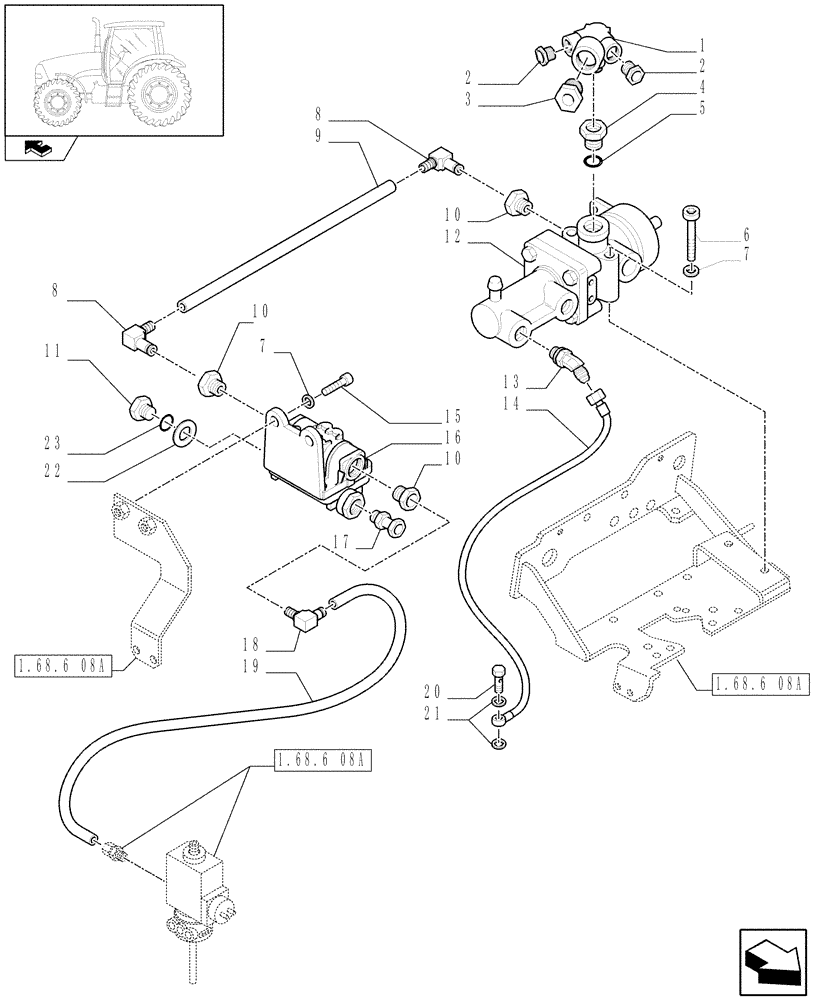

Схема запчастей Case IH PUMA 115 - (1.68.6[09A]) - PNEUMATIC TRAILER BRAKE - CONTROL VALVE AND RELEVANT PARTS - D6753 (VAR.332727-332737-332739) (05) - REAR AXLE
8
1.68.6 08a
home
1.68.6 08a
1.68.6 08a
10
14
13
19
11
16
2
10
1
9
17
7
12
2
22
21
8
3
20
6
15
7
23
18
5
4
10

Артикул

Название

Примечание

Количество

1

82019795

FITTING

1шт.

2

82036187

HYD CONNECTOR,M16 x 1.5

M16

2шт.

3

82034157

ADAPTER

M22

1шт.

4

82019796

LOCK NUT

1шт.

5

82019797

O-RING,2.5mm Thk x 14mm ID

1шт.

6

14308934

HEX SOC SCREW,M8 x 1.25 x 60mm, Cl 10.9

2шт.

7

10516679

LOCK WASHER,Helical Spring, 8.20mm ID x 14.80mm OD x 2.20mm, C72, ZNM

2шт.

8

87588080

90 ELBOW,NG8 x 12mm D

2шт.

9

84157672

FLEXIBLE HOSE,12.00mm OD x 123.00mm

Incl. 8

1шт.

10

87588079

HYD CONNECTOR,M16 x 1.5

1шт.

Qty. 3 for Italy; Qty. 4 for UK and Universal

1шт.

11

84157695

PLUG,Hex, M16 x 1.5 x 17mm L

M16

1шт.

12

82016341

TRAILER BRAKE VALVE

1шт.

13

87588084

HYD CONNECTOR,M10 x 1

11.10 x 1

1шт.

14

87652164

HOSE,6.35mm ID x 370mm L, SAE 100R2

370MM

1шт.

15

14306324

HEX SOC SCREW,M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

16

84157669

VALVE

1шт.

17

84157696

HYD CONNECTOR,MG12 / M16 x 1.5mm

M16

1шт.

Pneumatic Trailer Brake Italian Type, VAR.332737

1шт.

18

82036158

ELBOW,9.1mm OD x 31.5mm, 6x1Tube

1шт.

19

84157675

FLEXIBLE HOSE,436.00 mm

Incl. 18

1шт.

20

82018915

BANJO BOLT,M12 x 1 x 23mm

1шт.

21

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

2шт.

22

86010343

WASHER,Backing, 16.10mm, 19.50mm ID x 22.00mm OD x 2.60mm

1шт.

23

87392491

O-RING,2.5mm Thk x 14mm ID

1шт.

Выбрано товаров: 25
