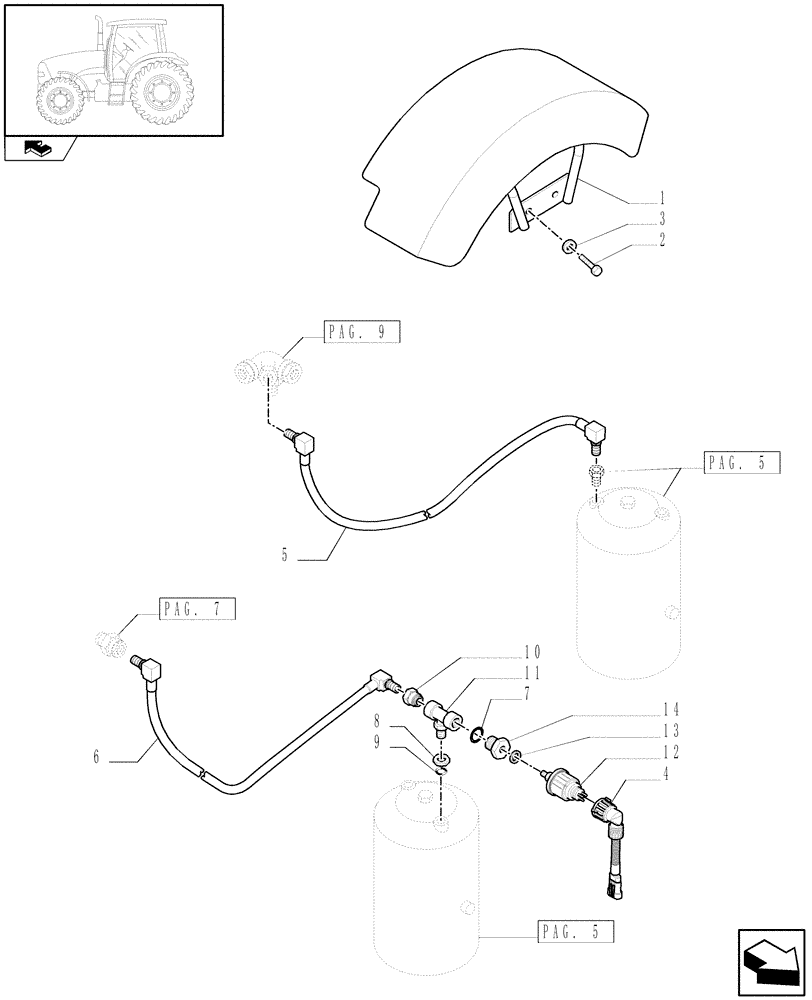

Запчасти Case IH PUMA 115 (1.68.6[07]) - PNEUMATIC TRAILER BRAKE - AIR TANK AND PIPES (VAR.332727-332737-332739) (05) - REAR AXLE

1

87667105

GUARD

1шт.

2

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

3

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

4

87564372

WIRE HARNESS

1шт.

5

87528793

FLEXIBLE HOSE

, Serial Range: -C5975

1шт.

5

87519551

BRAKE LINE,7.5 mm ID x 10 mm OD x 1600 mm L

, Start Serial: D5975

1шт.

6

87530971

FLEXIBLE HOSE

Red

1шт.

With Pneumatic Trailer Brake - Universal Type, VAR.332727

1шт.

6

87529057

FLEXIBLE HOSE

Red

1шт.

With Pneumatic Trailer Brake - Italian Type only, VAR.332737

1шт.

7

82019799

O-RING

ASSY

1шт.

8

82039004

LOCK NUT

1шт.

9

82039003

O-RING

1шт.

10

82034157

ADAPTER

M22

1шт.

11

82038888

HYD CONNECTOR

1шт.

12

87564377

SENSOR,M12 x 1.5

1шт.

Air Brake Pressure

1шт.

13

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

1шт.

14

87570885

ADAPTER

1шт.
