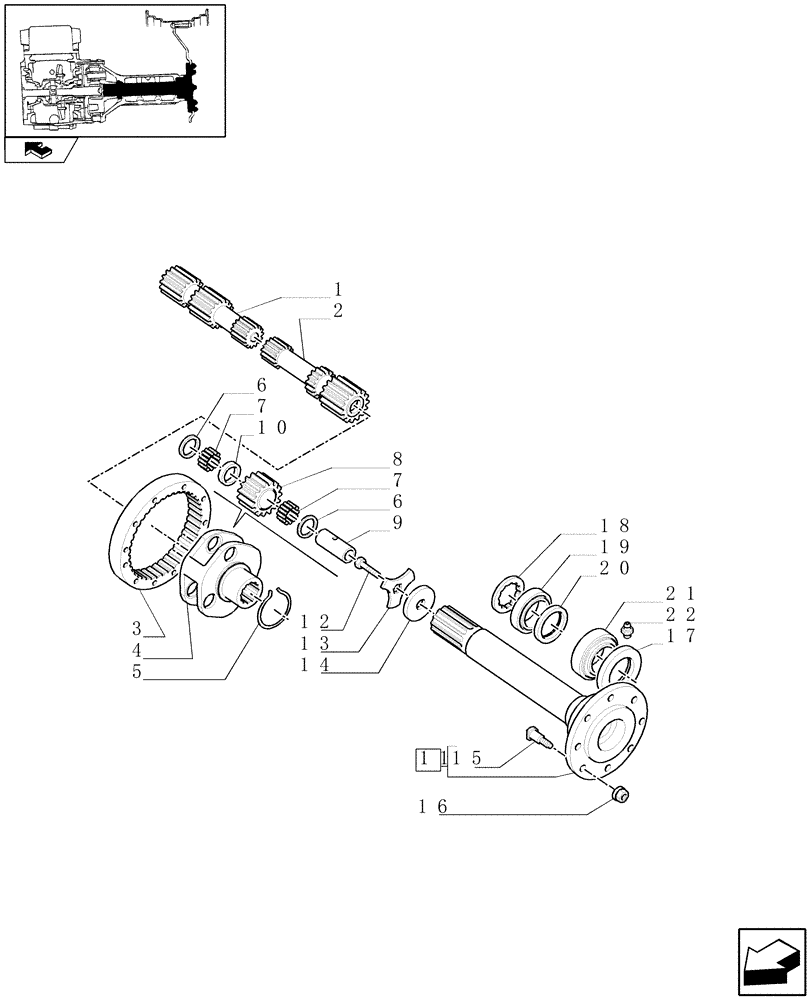

Запчасти Case IH PUMA 115 (1.48.1[01]) - FINAL DRIVE, GEARS AND SHAFTS (05) - REAR AXLE

1

5170962

HALF SHAFT,294.00mm

RH

1шт.

L= MM. 294

1шт.

2

5170963

HALF SHAFT,312.00mm

LH

1шт.

L= MM. 312

1шт.

3

5162266

RING GEAR,63T, 63mm L

DE= MM. 390, DI= MM. 310

2шт.

4

5162271

SUPPORT

2шт.

5

4998880

SNAP RING,4mm Thk, Ext

2шт.

6

5145983

THRUST WASHER,53.6mm ID x 84mm OD x 1mm Thk

53.6x84x1

12шт.

7

5102466

NEEDLE BEARING,53.5mm ID x 67.5mm OD x 32mm W

53.5x67.5x32

6шт.

8

5162282

DRIVEN GEAR,25T

DE= 136, DI= 67.50, h= 69, Z= 25

6шт.

9

5162172

PIN,53.5mm OD x 129mm L

6шт.

10

5102468

SPACER,56mm ID x 67.4mm OD x 5mm L

56x67.4x5

6шт.

11

87679487

DRIVE SHAFT,27T

2шт.

12

15984331

BOLT,Hex, M18 x 1.5 x 50mm, Cl 10.9, Full Thd

2шт.

13

5146156

LOCKING PLATE

2шт.

14

5162141

DISC,18.5mm ID x 87.5mm OD x 8mm Thk

2шт.

15

87651028

STUD,Wheel, M18 x 1.5 x 65mm, Cl 10.9

16шт.

16

87651026

NUT,M18, 1.5mm Pitch, Captive Wshr

M18x1.5

16шт.

17

5149310

SEAL,100mm ID x 130mm OD x 16mm Thk

100x130x16

2шт.

18

5121648

THRUST WASHER,73mm ID x 106mm OD x 5mm Thk

2шт.

19

24903490

BEARING ASSY,80mm ID x 125mm OD x 29mm W

80x125x29

2шт.

20

5162403

SEAL,82mm ID x 105mm OD x 12mm Thk

82x105x12

2шт.

21

24903500

TAPERED BEARING,85mm ID x 130mm OD x 29mm W

85x130x29

2шт.

22

13407211

LUBE NIPPLE,M10 x 1

2шт.
