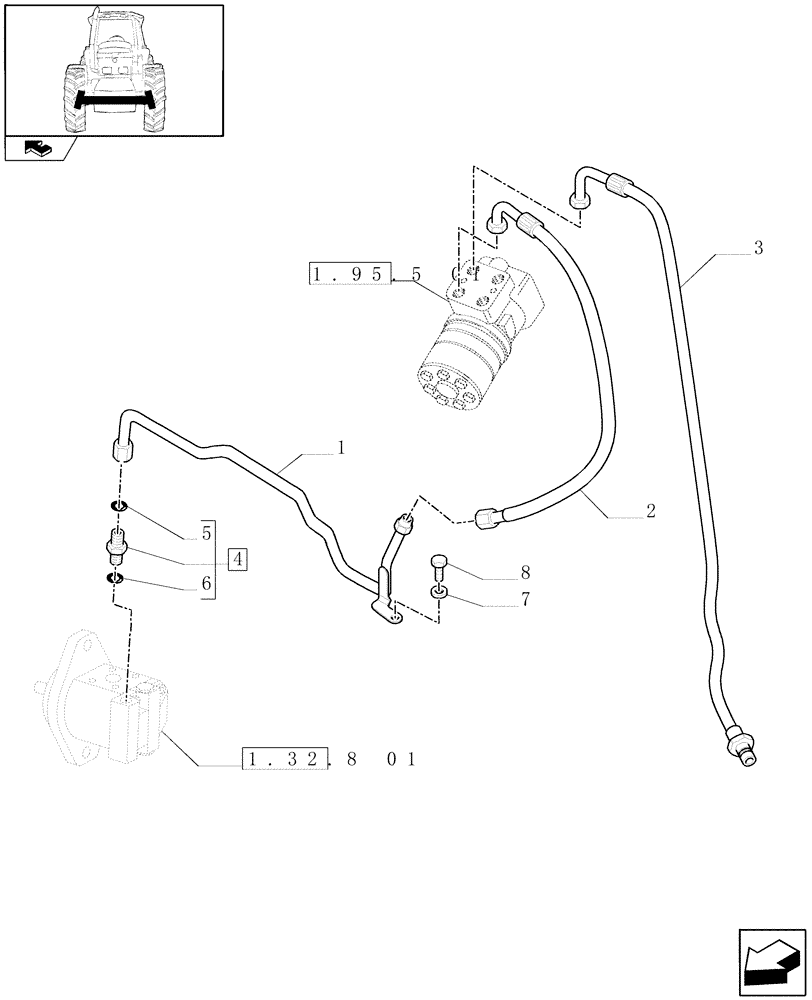

Запчасти Case IH PUMA 115 (1.42.0[03A]) - POWER STEERING DELIVERY AND RETURN PIPES FOR 18X6 TRANSMISSION - D5833 (04) - FRONT AXLE & STEERING

1

84146404

HYD TUBE,16 mm OD

1шт.

2

87367548

HOSE ASSY.,540.00mm

Feed

1шт.

3

87367555

HOSE ASSY.,12.7mm ID x 570mm L, SAE 100R2

Return

1шт.

4

5185046

HYD CONNECTOR,1-14 ORFS x M18 x 1.5 ORB

1шт.

5

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

6

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

7

10520205

WASHER,Flat, 16.40mm ID x 28.00mm OD x 3.00mm, CST, ZND

1шт.

8

15219521

BOLT,Hex, M16 x 25mm, Cl 8.8, Full Thd

1шт.
