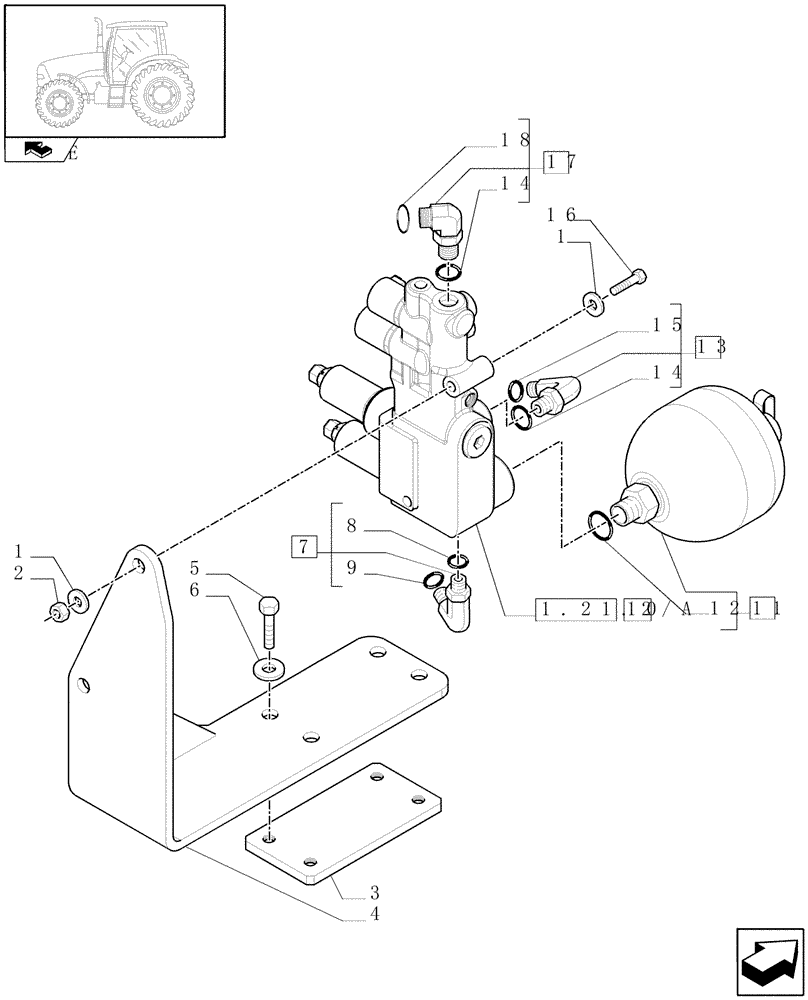

Запчасти Case IH PUMA 115 (1.21.2[01A]) - SUSPENDED FRONT AXLE W/MULTI-PLATE DIFF. LOCK - VALVE SUSP. CONTR. - D5833 (VAR.330414-330427-330429-330430) (04) - FRONT AXLE & STEERING

1

14496721

WASHER,13mm ID x 24mm OD x 2.5mm Thk

4шт.

2

16101521

NUT,M12 x 1.25, Cl 10

2шт.

3

87630752

PLATE

1шт.

4

87680956

SUPPORT

1шт.

5

16044621

SCREW,Hex, M8 x 70mm, Cl 8.8

4шт.

6

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

7

5197118

ELBOW,90 Deg, 1"3/16-12 ORFS x M27 x 2 ORB

1шт.

8

14438185

O-RING,24mm ID x 3mm

1шт.

9

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

1шт.

10

87556424

HYDRAULIC VALVE

1шт.

11

82025705

ACCUMULATOR

1шт.

12

14438285

O-RING,29.5mm ID x 3.0mm

1шт.

13

5185562

ELBOW

1шт.

14

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

15

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

16

15541521

SCREW,Hex, M12 x 1.25 x 90mm, Cl 8.8

2шт.

17

5185052

90 ELBOW,13/16"-16 x M18 x 1.5

1шт.

18

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.
