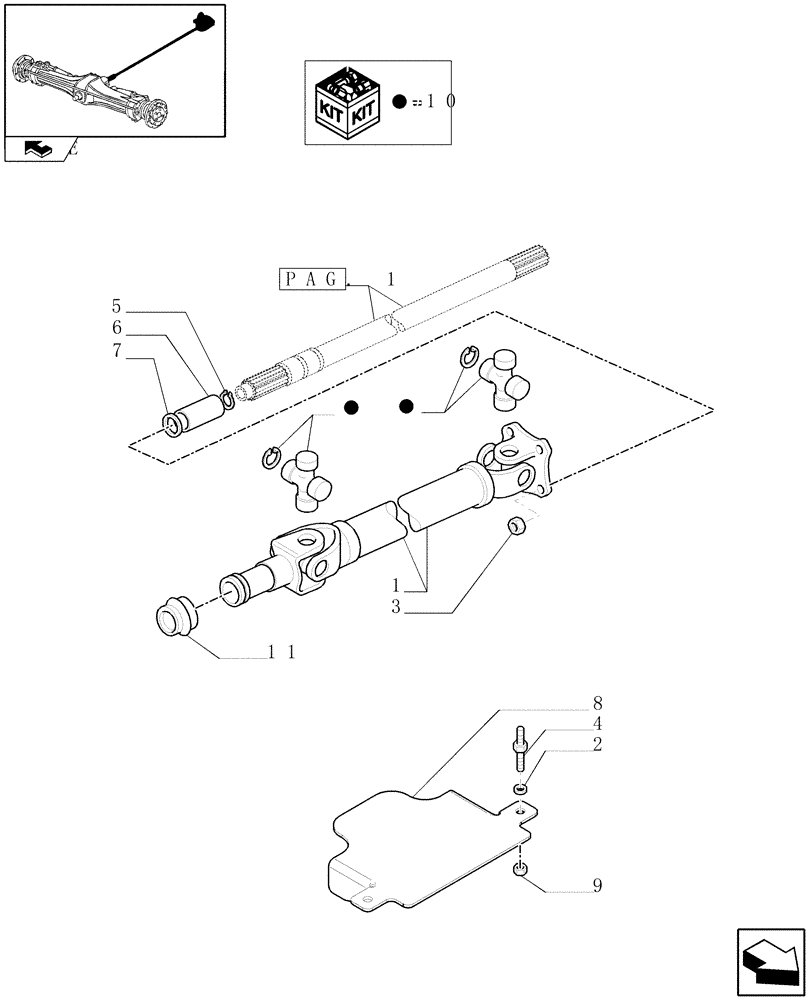

Запчасти Case IH PUMA 115 (1.38.5[02]) - FRONT AXLE PROPELLER SHAFT (4WD) (03) - TRANSMISSION

1

87383957

DRIVE SHAFT

, Serial Range: -C5775

1шт.

1

87664856

DRIVE SHAFT

Incl. 10-11, Start Serial: D5775

1шт.

2

11198174

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 2.2mm Thk

2шт.

3

82936516

LOCK NUT,7/16"-20

8шт.

4

87316808

STUD,M8 x 1.25mm

M8

2шт.

5

5109282

CIRCLIP,M35, Ext x 2.50 Thk

2шт.

6

47135384

SPLINED COUPLING,12T

1шт.

7

5118722

SHIM,34.6mm ID x 48mm OD x 1mm Thk

1.0MM

1шт.

7

5118726

SHIM,34.60mm ID x 48.00mm OD x 2.00mm T

SPARE PART SHIM, 2.0 MM

1шт.

7

5118723

SHIM,34.6mm ID x 48mm OD x 1.2mm Thk

1.2MM

1шт.

7

5118724

SHIM,34.60mm ID x 48.00mm OD x 1.50mm T

1.5MM

1шт.

7

5118725

SHIM,34.6mm ID x 48mm OD x 1.8mm Thk

1.8MM

1шт.

7

5118726

SHIM,34.60mm ID x 48.00mm OD x 2.00mm T

SPARE PART SHIM, 2.0 MM

1шт.

7

4994066

SHIM,34.60mm ID x 48.00mm OD x 2.20mm T

1шт.

7

4994067

SHIM,34.60mm ID x 48.00mm OD x 2.50mm T

1шт.

7

4994068

SHIM,34.60mm ID x 48.00mm OD x 2.80mm T

1шт.

7

4994069

SHIM,34.60mm ID x 48.00mm OD x 3.00mm T

1шт.

7

4994070

SHIM,34.60mm ID x 48.00mm OD x 3.30mm T

1шт.

7

4994071

SHIM,34.60mm ID x 48.00mm OD x 3.70mm T

SPARE PART

1шт.

7

4994072

SHIM,34.60mm ID x 48.00mm OD x 4.00mm T

1шт.

7

4994073

SHIM,34.60mm ID x 48.00mm OD x 4.30mm T

1шт.

8

82037903

GUARD

LH

1шт.

9

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

10

84512471

SERVICE KIT,Drive Shaft

2шт.

11

84153203

BELLOWS

1шт.
