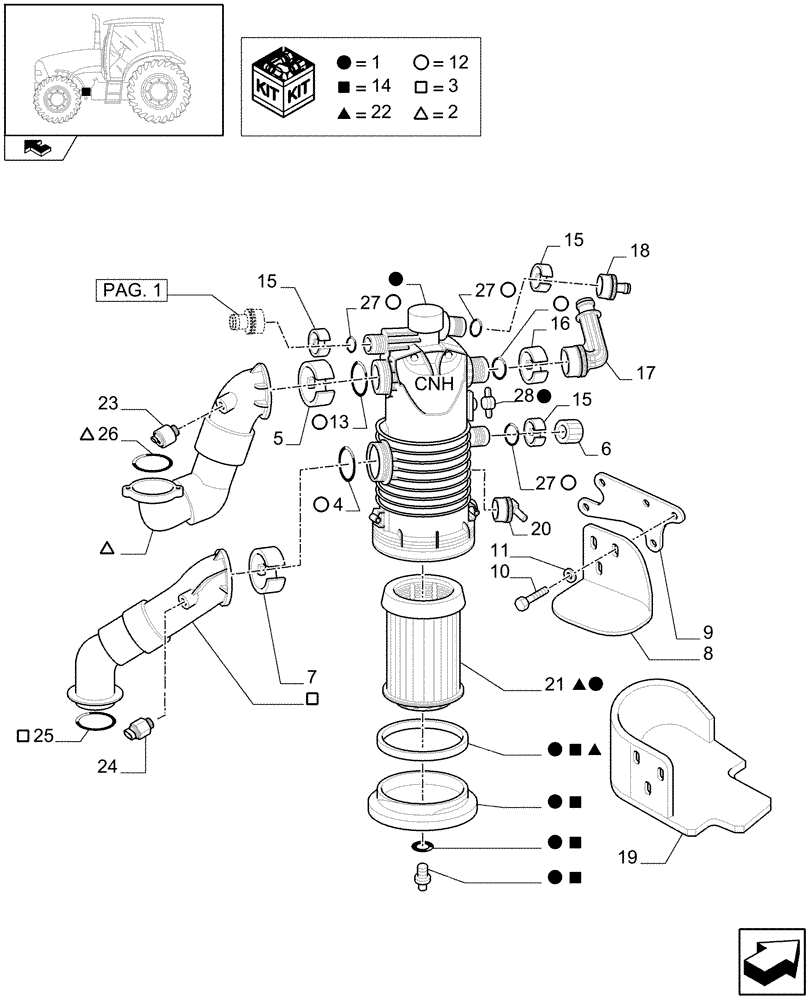

Запчасти Case IH PUMA 115 (1.32.8[02]) - PUMPS FOR HYDRAULIC SYSTEM AND LIFT - OIL FILTER, PIPES AND SUPPORT (03) - TRANSMISSION

1

87313049

FILTER ASSY

1шт.

2

87395841

TUBE

Incl.26

1шт.

3

87395840

TUBE

Incl.25

1шт.

4

87381699

O-RING,63.50mm ID x 3.53mm

1шт.

5

87381696

SNAP RING,8mm Thk, Ext

1шт.

6

87330798

PLUG,46mm ID

1шт.

7

87381695

CIRCLIP,8mm Thk

1шт.

8

87541317

COVER

, Serial Range: -C5833

1шт.

9

87519190

SUPPORT

, Serial Range: -C6664

1шт.

9

84332042

SUPPORT

, Start Serial: D6664

1шт.

10

15540424

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

, Serial Range: -C6664

3шт.

10

15540221

BOLT,Hex, M12 x 1.25 x 20mm, Cl 8.8, Full Thd

, Start Serial: D6664

3шт.

11

14496721

WASHER,13mm ID x 24mm OD x 2.5mm Thk

3шт.

12

87705156

SEAL KIT

1шт.

13

87381702

O-RING,53.5mm ID x 2.387mm OD x 3.53mm

1шт.

14

87705159

FILTER COVER

1шт.

15

84121298

SNAP RING,30mm Thk, Ext

1шт.

16

87330755

STOP DEVICE

1шт.

17

87324688

ELBOW,90 Deg, 32.9mm - 27mm ID

1шт.

18

87330801

HYD CONNECTOR,21mm D x 12.5mm D

, Serial Range: -C5918

1шт.

19

87679513

COVER

, Serial Range: D5833-C6664

1шт.

19

84331557

COVER

, Start Serial: D6664

1шт.

20

87330808

ELBOW,45 Deg, 21mm - 12.5mm ID

1шт.

21

87395844

ELEMENT

, Serial Range: -C5918

1шт.

22

47617638

FILTER

HYDRAULIC FILTER

1шт.

23

82025340

RESTRICTION SWITCH

1шт.

24

87564694

PROBE

1шт.

25

87705158

GASKET KIT

1шт.

26

87705157

SEAL

1шт.

27

87381700

O-RING,25.50mm ID x 2.53mm

3шт.

28

87705160

ARRESTER

1шт.
