Запчасти Case IH PUMA 115 (1.32.8[01]) - PUMPS FOR HYDRAULIC SYSTEM AND LIFT - PUMPS (03) - TRANSMISSION

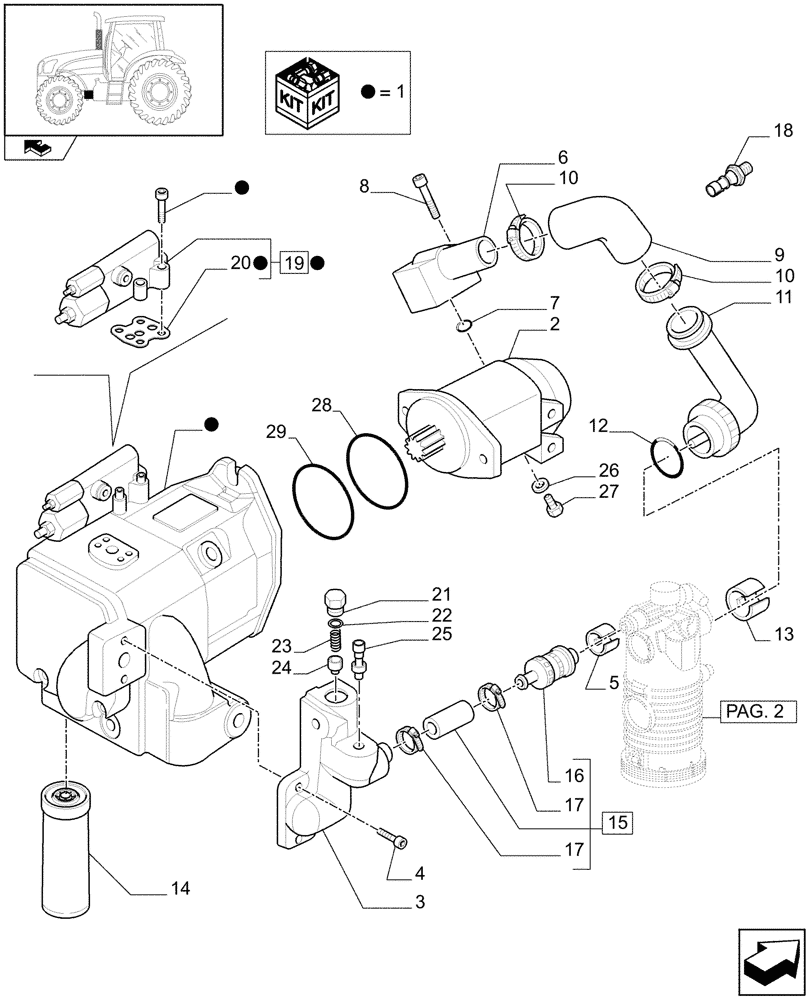

Схема запчастей Case IH PUMA 115 - (1.32.8[01]) - PUMPS FOR HYDRAULIC SYSTEM AND LIFT - PUMPS (03) - TRANSMISSION
pag. 2
24
23
10
5
26
19
16
2
6
21
7
1
22
10
17
1
20
15
12
1
14
4
29
3
1
1
25
9
17
8
11
18
home
27
13
28

Артикул

Название

Примечание

Количество

1

87568039

HYDRAULIC PUMP

CCLS Variable Displacement, 45cc/rev (113 l/min), Serial Range: -C6357

1шт.

1

84471387R

REMAN-HYD PUMP,45 CC

CCLS Variable Displacement, 45cc/rev (113 l/min)

1шт.

1

84471387C

CORE-HYDRAULIC PUMP,45 CC

Return Number

1шт.

1

84164091

HYDRAULIC PUMP

CCLS Variable Displacement, 45cc/rev (113 l/min), Start Serial: D6357

1шт.

1

84471387R

REMAN-HYD PUMP,45 CC

CCLS Variable Displacement, 45cc/rev (113 l/min)

1шт.

1

84471387C

CORE-HYDRAULIC PUMP,45 CC

Return Number

1шт.

2

47135548

HYDRAULIC PUMP

Steering, 25cc/rev, Components NSS, Serial Range: -C6603

1шт.

2

84263360R

REMAN-HYD PUMP

Steering, 25cc/rev

1шт.

2

84263360C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

84263360

HYDRAULIC PUMP,25.67 CC

, Start Serial: D6603

1шт.

2

84263360R

REMAN-HYD PUMP

1шт.

2

84263360C

CORE-HYDRAULIC PUMP

Return Number

1шт.

3

87570482

HYDRAULIC MANIFOLD

1шт.

4

14306421

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8

2шт.

5

87330793

STOP DEVICE

1шт.

6

87391622

FLANGE

1шт.

7

14463680

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

1шт.

8

14302231

SCREW,M8 x 55mm, Cl 10.9

4шт.

9

87323539

ELBOW,90 Deg, 31mm ID x 45mm OD

1шт.

10

13001690

HOSE CLAMP,Worm Gear, 30mm/45mm x 9mm W, CST, ZND

1шт.

11

87324688

ELBOW,90 Deg, 32.9mm - 27mm ID

1шт.

12

87381701

O-RING

1шт.

13

87330755

STOP DEVICE

1шт.

14

84226258

HYDRAULIC OIL FILTER,94mm OD x 240mm L, 1" 3/8-12UNF

1шт.

14

84226263

HYDRAULIC OIL FILTER,116.8mm OD x 295.4mm L, 1" 3/8-12UNF

1шт.

Larger Filter to be used after the first 50h on Models with CCLS Hydraulic System/Pump

1шт.

15

87570484

HOSE,5480.00 mm

, Serial Range: -C6002

1шт.

15

87492483

HOSE,32mm Bore Dia

ASSY, Start Serial: D6002

1шт.

16

87381694

HYD CONNECTOR,21mm D x 22mm D

, Serial Range: -C5918

1шт.

17

82039346

HOSE CLAMP,30mm - 45mm, Worm Gear

, Serial Range: -C6002

2шт.

17

82039345

HOSE CLAMP,25mm - 40mm, Worm Gear

, Start Serial: D6002

2шт.

18

87564684

SWITCH ASSY

1шт.

19

84209779

COMPENSATOR

Incl. 20

1шт.

20

84209778

GASKET

1шт.

21

47123781

PLUG,M22 x 1.5

1шт.

22

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

23

87722518

SPRING,12.5mm OD x 33.5mm L

1шт.

24

5169565

VALVE,By-Pass

1шт.

25

87564684

SWITCH ASSY

1шт.

26

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

, Serial Range: -C6603

1шт.

27

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

, Serial Range: -C6603

1шт.

28

14461080

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

1шт.

29

14461380

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

1шт.

Выбрано товаров: 43
