Запчасти Case IH PUMA 115 (1.32.2/01[01]) - FULL POWER-SHIFT TRANS. 18X6 AND 17X6 - CENTRAL REDUCT.GEAR CTRL (VAR.330285) (03) - TRANSMISSION

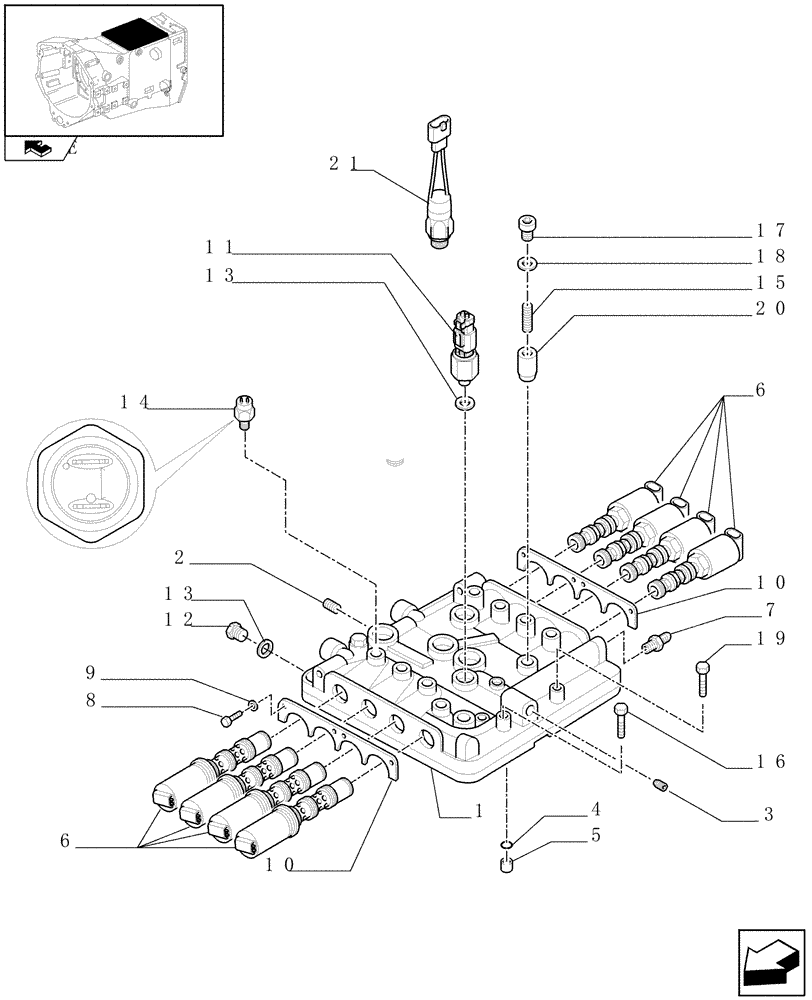

Схема запчастей Case IH PUMA 115 - (1.32.2/01[01]) - FULL POWER-SHIFT TRANS. 18X6 AND 17X6 - CENTRAL REDUCT.GEAR CTRL (VAR.330285) (03) - TRANSMISSION
6
21
10
17
11
20
13
16
15
4
3
9
19
18
13
14
10
home
8
1
2
6
12
5
7

Артикул

Название

Примечание

Количество

1

87316740

COVER

1шт.

2

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

M10 x 1.25

3шт.

3

14328401

PLUG,M14, Tapered

1шт.

4

14457281

O-RING,0.612" ID x 0.103" Width

3шт.

5

5178778

SPACER,11mm ID x 15mm OD x 15mm L

1шт.

6

87577678

SOLENOID

Proportional Pressure, Serial Range: -C5913

5шт.

6

87739558

SOLENOID VALVE,14W

Green Connectors, Start Serial: D5913

5шт.

6

87739558R

REMAN-SOLENOID

Green Connectors, Start Serial: D5913

5шт.

6

87739558C

CORE-SOLENOID

Return Number

5шт.

6

84273815

SOLENOID VALVE,12V DC, 7.3Ohm

Dump Valve, Black Connectors

3шт.

7

5188761

SCREW

1шт.

8

14433121

HEX SOC SCREW,M6 x18mm, Cl 8.8, Full Thd

8шт.

9

11197779

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

8шт.

10

87319491

FIXING PLATE

2шт.

11

87564683

PRESSURE SWITCH,M14 x 1.5

Pressure, Serial Range: -C6249

4шт.

12

11903011

PLUG,M10 x 1 x 11, Cl5.8

2шт.

13

87665413

SEALING WASHER,7.9mm ID x 17.0mm OD x 1.5mm Thk

1шт.

14

87395493

PRESSURE SWITCH

Trans. Oil

2шт.

15

5176720

SPRING,Compression, 17mm OD x 50mm L

, Serial Range: -C5876

1шт.

15

87722518

SPRING,12.5mm OD x 33.5mm L

, Start Serial: D5876

1шт.

16

16044121

BOLT,Hex, M8 x 45mm, Cl 8.8

4шт.

17

10278311

PLUG,M28 x 1.5 x 15

1шт.

18

87665421

SEALING WASHER,26mm ID x 38mm OD x 1.5mm Thk

1шт.

19

11343724

BOLT,Hex, M10 x 1.25 x 65mm, Cl 8.8

4шт.

20

5187494

BY-PASS VALVE

BY-PASS

1шт.

21

87494226

PRESSURE SWITCH

, Start Serial: D6249

4шт.

Выбрано товаров: 26
