Запчасти Case IH PUMA 115 (1.32.1/01[05]) - FULL POWER-SHIFT TRANS. 18X6 AND 17X6 - CENTRAL REDUCTION GEARS (VAR.330285) (03) - TRANSMISSION

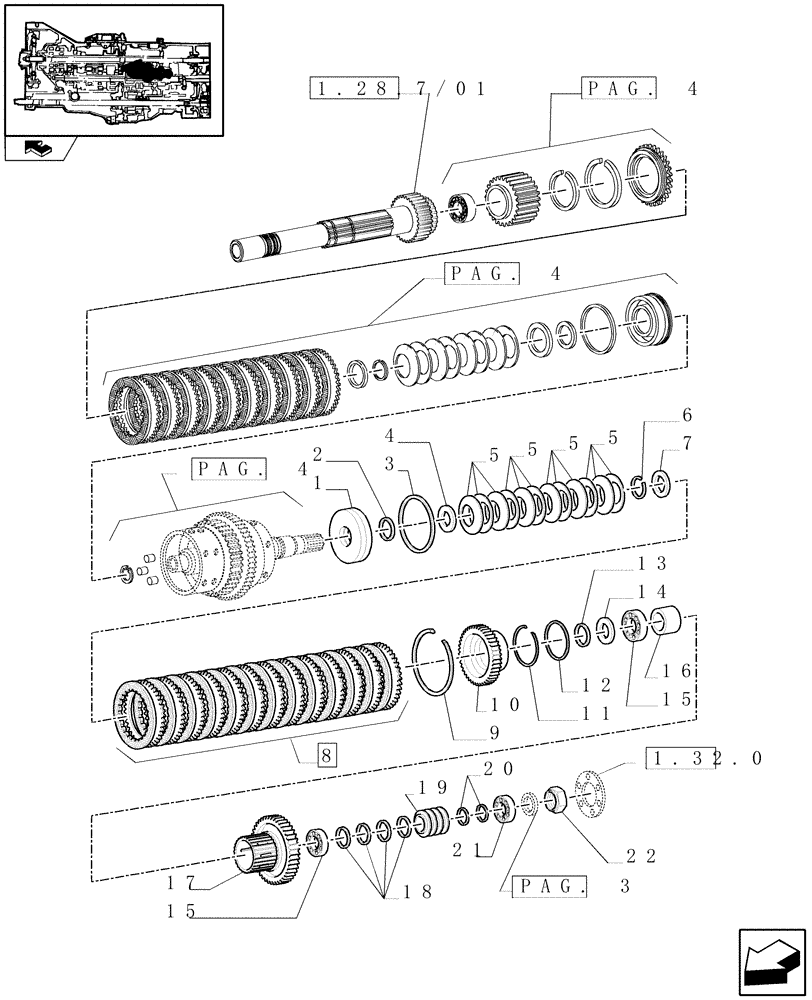

Схема запчастей Case IH PUMA 115 - (1.32.1/01[05]) - FULL POWER-SHIFT TRANS. 18X6 AND 17X6 - CENTRAL REDUCTION GEARS (VAR.330285) (03) - TRANSMISSION
3
14
5
12
22
2
7
1.28.7/01
1.32.0
15
13
5
home
pag. 3
pag. 4
pag. 4
pag. 4
1
16
20
5
21
19
17
11
15
8
9
6
5
4
10
18

Артикул

Название

Примечание

Количество

1

5187424

PISTON

1шт.

2

5162252

GASKET,68mm ID x 75.5mm OD x 3.2mm Thk

1шт.

3

5172302

GASKET,140.55mm ID x 148mm OD x 3.2mm Thk

1шт.

4

5164926

RING

61x85x3

1шт.

5

87547948

BELLEVILLE SPRING,60.8mm ID x 95mm OD x 2.3mm Thk

12шт.

6

5175981

CIRCLIP,1.5mm Thk

1шт.

7

5164928

RETAINER CUP,60mm ID x 70mm OD x 3mm Thk

60x70x3

1шт.

8

5199903

KIT

1шт.

9

47132782

SNAP RING,3mm Thk, Int

1шт.

10

5179115

DISC,117.02mm ID x 154.35mm OD x 12.5mm Thk

1шт.

11

5179124

CIRCLIP

1шт.

12

81865152

SEAL,107.72mm ID x 116.32mm OD x 3.8mm Thk

1шт.

13

5183118

SPACER,55.1mm ID x 66mm OD x 2.5mm L

55.1/55.3x66x2.5

1шт.

14

5183706

THRUST WASHER,55.1mm ID x 89mm OD x 1mm Thk

55.1x89x1

1шт.

15

28042510

BALL BEARING,55mm x 90mm x 18mm

55x90x18

2шт.

16

5179172

SHIM,M55.2 x 62 x 10.500

1шт.

17

5179113

GEAR,52T, 53T

1шт.

18

5131232

OIL SCRAPER RING,Split, 83.02mm ID x 90mm OD x 2.22mm Thk

SEALRING

4шт.

19

5185208

PISTON,89.35mm Bore, 55mm Rod, 53.5mm W

1шт.

20

14455080

O-RING,50.52mm ID x 1.78mm

2шт.

21

5187264

TAPERED BEARING,55 mm ID x 90 mm OD x 23 mm

55x90x23

1шт.

22

5172206

NUT,Hex, M50, 1.5mm Pitch, 20mm Thk, Hdn

M50x1.5x20

1шт.

Выбрано товаров: 22
