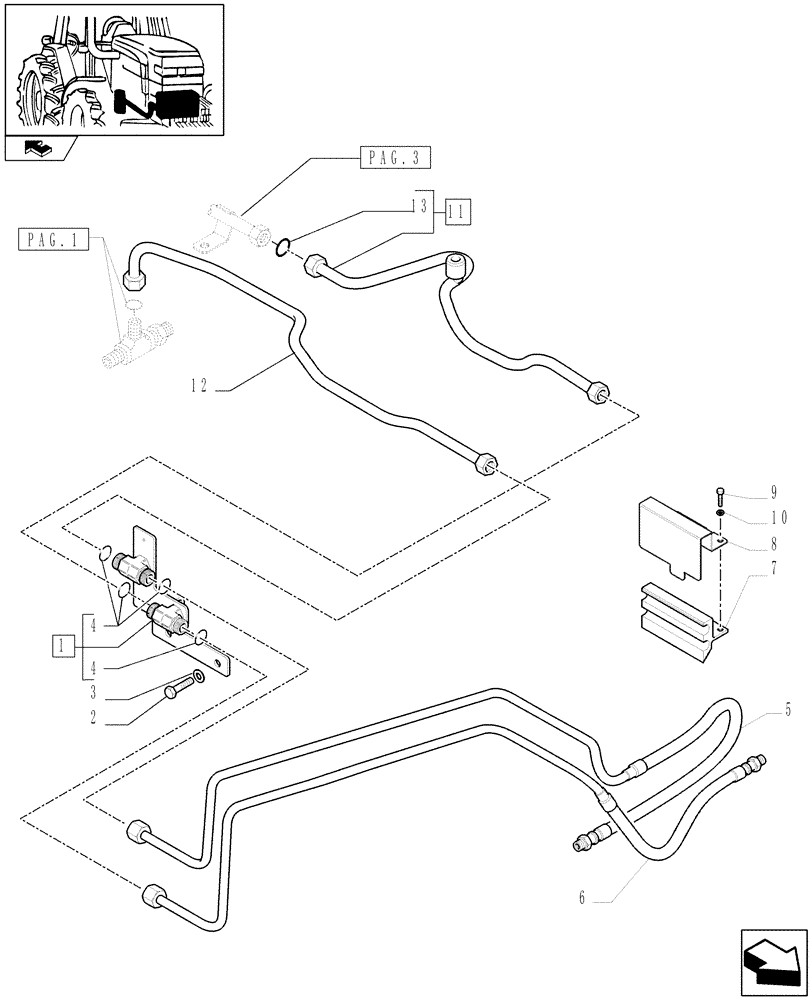

Запчасти Case IH PUMA 115 (1.29.7[04]) - SEMI POWER SHIFT - TRANSMISSION OIL COOLER PIPES (03) - TRANSMISSION

1

84136405

HOLDER

1шт.

2

11112421

SCREW,Hex, M12 x 30mm, Cl 8.8

3шт.

3

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

3шт.

4

81825117

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.

5

87617966

HYD TUBE,18 mm OD

1шт.

6

87647690

HYD TUBE,18 mm OD

1шт.

7

87652575

SUPPORT

1шт.

8

87649791

COVER

1шт.

9

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

3шт.

10

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

3шт.

11

87583753

HYD TUBE,17 mm ID x 20 mm OD x 739, 107 mm L

Feed

1шт.

12

87538831

HYD TUBE,20 mm OD x 846, 481 mm L

Return

1шт.

13

81825117

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.
