(1.29.7[01B]) - SEMI POWER SHIFT - TRANSMISSION LUBRICATION SYSTEM - PIPES - D5876 - SERVICE KIT

Запчасти Case IH PUMA 115 (1.29.7[01B]) - SEMI POWER SHIFT - TRANSMISSION LUBRICATION SYSTEM - PIPES - D5876 - SERVICE KIT (03) - TRANSMISSION

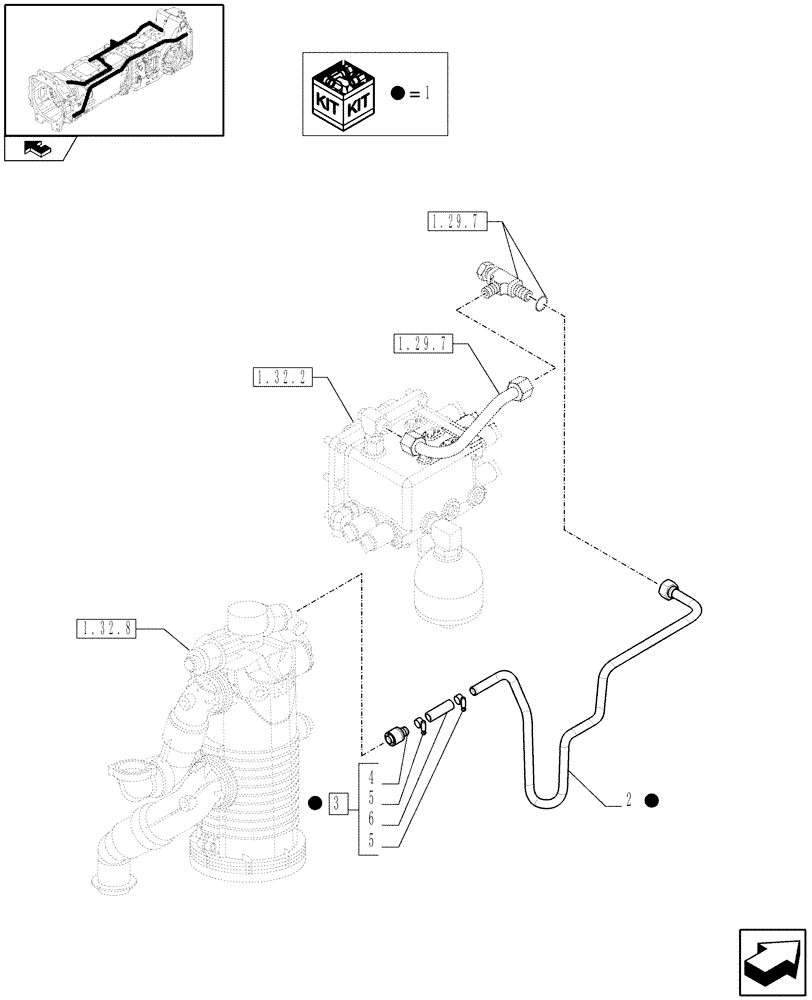

Схема запчастей Case IH PUMA 115 - (1.29.7[01B]) - SEMI POWER SHIFT - TRANSMISSION LUBRICATION SYSTEM - PIPES - D5876 - SERVICE KIT (03) - TRANSMISSION
1.32.2
1.29.7
1
5
4
1.32.8
1
2
home
1.29.7
1
6
3
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

710083280001

SERVICE KIT

Contains Ref. 2-6

1шт.

For Higher Performance on Power Steering At Start Up

1шт.

2

84352739

HYD TUBE

1шт.

3

84352585

HYD CONNECTOR

1шт.

4

87330801

HYD CONNECTOR,21mm D x 12.5mm D

1шт.

5

82039344

HOSE CLAMP,20mm - 32mm

2шт.

6

84352586

HOSE,15.9mm ID x 70mm L, SAE 100R6

1шт.

Выбрано товаров: 7
