Запчасти Case IH PUMA 115 (1.29.6[02]) - HYDRAULIC GEARBOX CONTROL (03) - TRANSMISSION

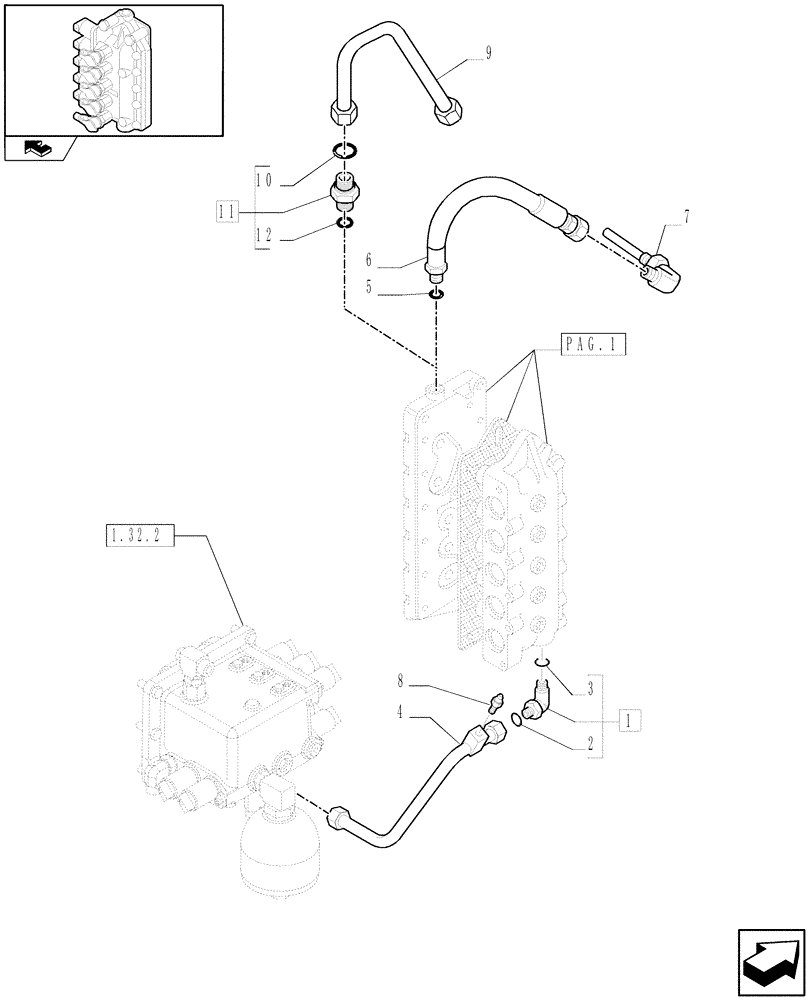

Схема запчастей Case IH PUMA 115 - (1.29.6[02]) - HYDRAULIC GEARBOX CONTROL (03) - TRANSMISSION
3
11
1
1.32.2
12
4
pag.1
2
6
home
7
9
10
8
5

Артикул

Название

Примечание

Количество

1

5192286

90 ELBOW,1-14" ORFS x M22 x 1.5

1шт.

2

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

3

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

4

87687004

PIPE

1шт.

From Accumulator to Power Shift Control Valve

1шт.

5

14437885

O-RING,13.30mm ID x 2.40mm

, Serial Range: -C5833

1шт.

6

87601162

HOSE

"A" Clutch Power Shift, Serial Range: -C5833

1шт.

7

87574620

HYD CONNECTOR,13/16"-16 x M18 x 1.5

1шт.

8

82028133

SENSOR,3/8"-18

1шт.

9

87671394

PIPE

, Start Serial: D5833

1шт.

10

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

, Start Serial: D5833

1шт.

11

86579675

HYD CONNECTOR,13/16"-16 ORFS x M16 x 1.5 ORB

, Start Serial: D5833

1шт.

12

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

, Start Serial: D5833

1шт.

Выбрано товаров: 13
