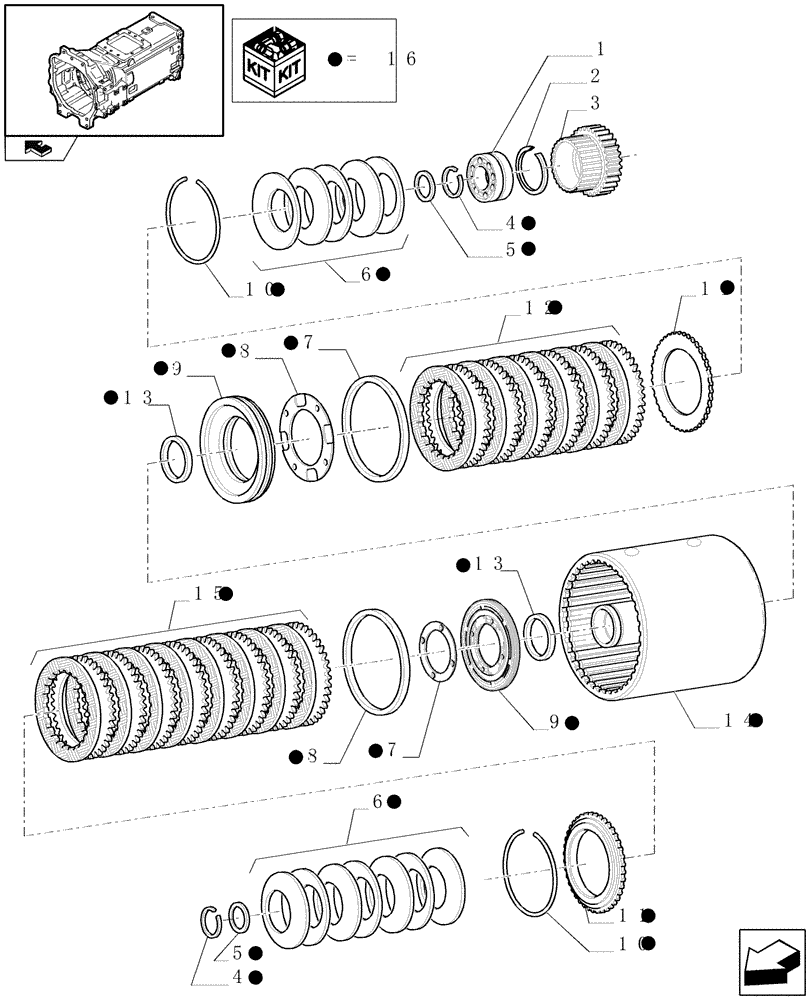

Запчасти Case IH PUMA 115 (1.28.7/02[02]) - TRANSMISSION 19X6 (40/50 KM/H) SPS/FPS - CLUTCH ENGAGEMENT (VAR.331247-331291) (03) - TRANSMISSION

1

5162622

BALL BEARING,50mm ID x 80mm OD x 32mm W

50x80x32

1шт.

2

5162623

CIRCLIP,80mm ID

1шт.

3

5167830

DRIVEN GEAR,45T, 52T

III-IV SPEED

1шт.

4

5175981

CIRCLIP,1.5mm Thk

2шт.

5

5164928

RETAINER CUP,60mm ID x 70mm OD x 3mm Thk

2шт.

6

87547948

BELLEVILLE SPRING,60.8mm ID x 95mm OD x 2.3mm Thk

12шт.

7

5138955

GASKET,134.55mm ID x 142.06mm OD x 3.2mm Thk

2шт.

8

87709753

RING,61mm ID x 65.5mm OD x 0.5mm Thk

2шт.

9

87709752

PISTON

2шт.

10

47132782

SNAP RING,3mm Thk, Int

2шт.

11

47132780

THRUST PLATE,60T, 154.75mm OD

2шт.

12

87530788

CLUTCH PACK

CLUTCH PLATES

1шт.

13

5162252

GASKET,68mm ID x 75.5mm OD x 3.2mm Thk

2шт.

14

47132827

CLUTCH HOUSING

1шт.

15

87530789

CLUTCH PACK

CLUTCH PLATES

1шт.

16

87730396

CLUTCH PACK

ASSY

1шт.
