Запчасти Case IH PUMA 115 (1.28.7[01]) - SEMI POWER-SHIFT TRANS. - SPEED GEAR AND CLUTCHES - SUPPORT AND MANIFOLD (03) - TRANSMISSION

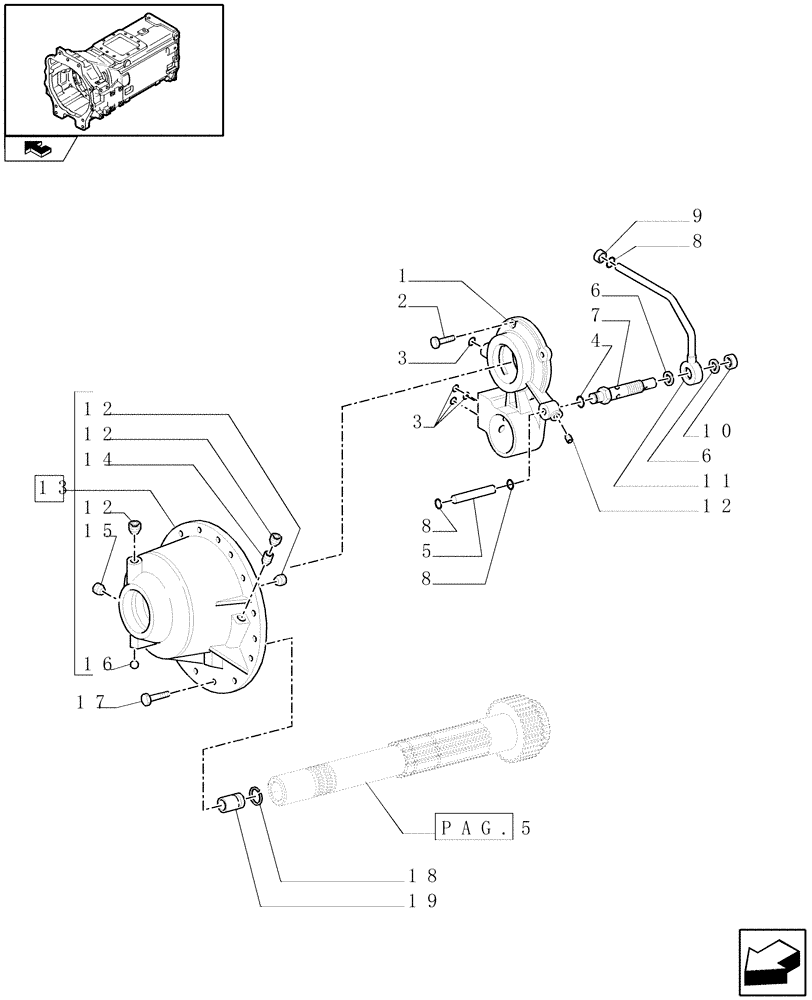

Схема запчастей Case IH PUMA 115 - (1.28.7[01]) - SEMI POWER-SHIFT TRANS. - SPEED GEAR AND CLUTCHES - SUPPORT AND MANIFOLD (03) - TRANSMISSION
19
12
16
7
10
6
3
14
2
home
pag.5
9
15
4
12
3
12
8
13
8
18
11
17
5
12
1
6
8

Артикул

Название

Примечание

Количество

1

5187970

SUPPORT

1шт.

2

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

3

14457081

O-RING,12.37mm ID x 2.62mm

4шт.

4

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

1шт.

5

5178212

TUBE,97mm L

1шт.

6

10261860

COPPER WASHER,22.3mm ID x 30mm OD x 1.5mm Thk

2шт.

7

5185573

VALVE PRESSURE RELIE

1шт.

8

14457281

O-RING,0.612" ID x 0.103" Width

3шт.

9

5167066

BUSHING,16.2mm ID x 20mm OD x 11mm L

16.2x20x11

1шт.

10

5164984

SPACER,22.3mm ID x 30mm OD x 7.5mm L

1шт.

11

5164980

TUBE

1шт.

12

10275501

PLUG,Pipe, Hex Skt, M12 x 1.25 x 11mm, Cl 4.8

M12 x 1.25

4шт.

13

5164862

COVER

ASSY

1шт.

14

5167313

PLUG,Hex Skt, M12 x 12mm

M12X12

1шт.

15

14326001

PLUG,Hex Skt, M10 x 1.25 x 11mm, Cl 4.8

M10 x 1.25

1шт.

16

20063460

BALL,7.14mm OD, Gr 100

DIA=7.144

1шт.

17

16043924

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

10шт.

18

5185502

PISTON RING,28.5mm ID x 32mm OD x 2.1mm Thk

SEALRING

1шт.

19

5186000

TUBE

1шт.

Выбрано товаров: 19
