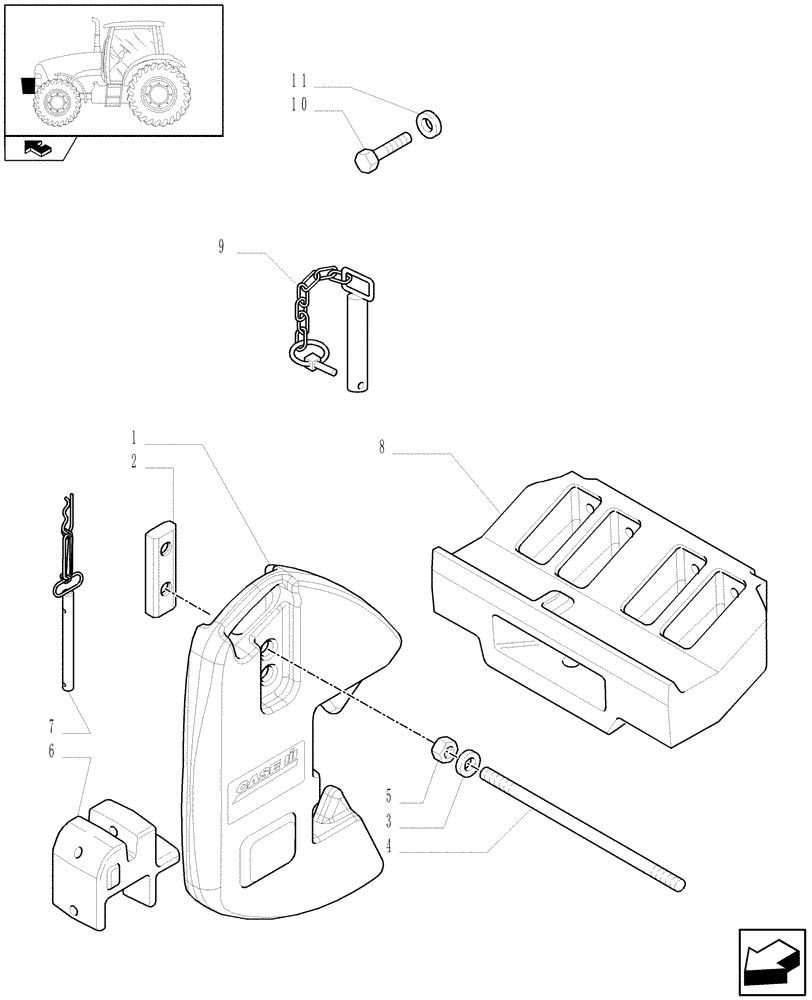

Запчасти Case IH PUMA 115 (1.21.5/03) - WEIGHT CARRIER - WITH HOOK (VAR.330224) (03) - TRANSMISSION

1

86988727

WEIGHT,45Kg

6шт.

2

229483A1

RETAINER

1шт.

3

83924746

WASHER,17mm ID x 40mm OD x 5mm Thk

2шт.

4

82028019

ROD,M16 x 2 x 610.00mm, ZND

M16x610

1шт.

5

82011968

NUT,Hex, M16, 2mm Pitch, 13.00mm High, ZND

4шт.

6

82024272

SUPPORT,110Kg

1шт.

7

44995008

CLEVIS PIN,31mm OD x 337mm L

1шт.

8

82031499

WEIGHT CARRIER

1шт.

9

44995060

CLEVIS PIN,31mm OD x 315mm L

1шт.

10

16050821

BOLT,Hex, M20 x 90mm, Cl 8.8

6шт.

11

11191774

BELLEVILLE WASHER,M20 Bolt Size x 38mm OD x 4.6mm Thk

6шт.
