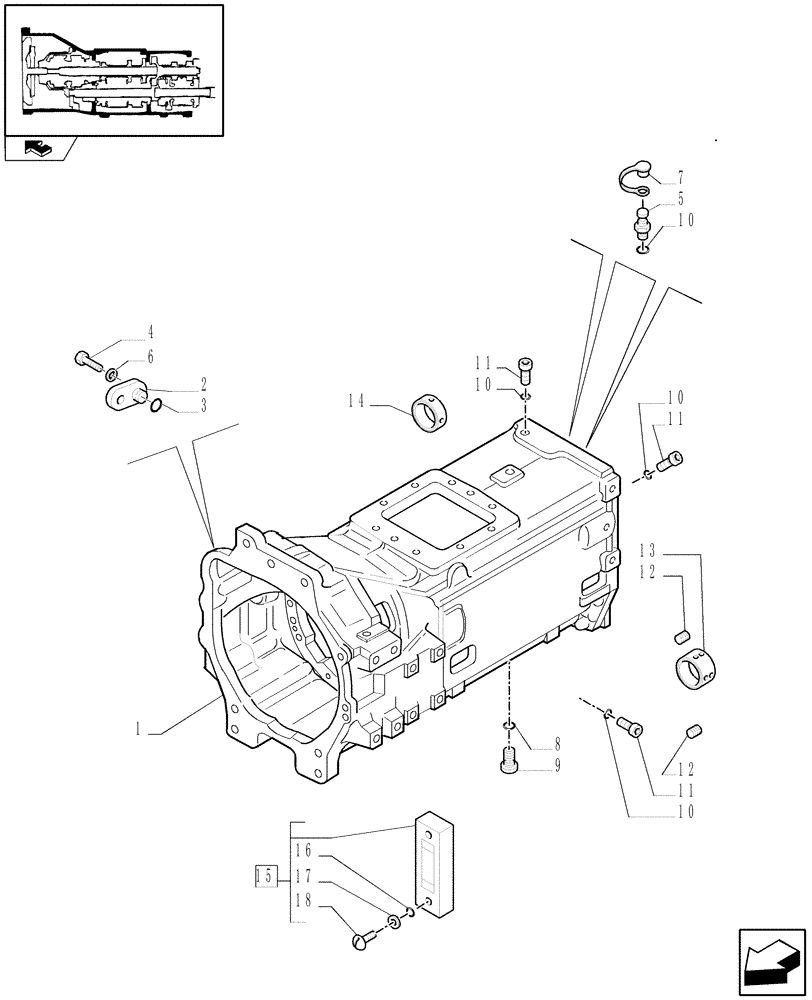

Запчасти Case IH PUMA 115 (1.21.0/03[01]) - FULL POWER-SHIFT TRANS. 18X6 AND 17X6 - HOUSING , GEARS (VAR.330285) (03) - TRANSMISSION

1

87317402

HOUSING

Incl. 12, 13, 14, Serial Range: -C6537

1шт.

1

84252680

HOUSING

Incl. 12, 13, 14, Start Serial: D6537

1шт.

2

87307348

PLUG,18mm ID

1шт.

3

47136259

O-RING,3mm Thk x 17.2mm ID, 72 Duro

1шт.

4

14305724

HEX SOC SCREW,M6 x 14mm, Cl 8.8, Full Thd

1шт.

5

5185423

COUPLING

4шт.

6

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

1шт.

7

5185424

DUST CAP,11.5mm ID x 81.5 L, Black

4шт.

8

14438285

O-RING,29.5mm ID x 3.0mm

1шт.

9

10119511

PLUG,M33 x 2 x 16, Cl5.8

M33x2

1шт.

10

14437785

O-RING,11.3mm ID x 2.4mm

8шт.

11

10118711

PLUG,M14 x 1.5 x 12, Cl5.8

3шт.

12

10275501

PLUG,Pipe, Hex Skt, M12 x 1.25 x 11mm, Cl 4.8

M12x1.25

2шт.

13

5189017

BUSHING,90.02mm ID x 100.06mm OD x 52.5mm L

90.020/90.050 x 100.050/100.065 x 52.5

1шт.

14

5189016

BUSHING,90.02mm ID x 100.06mm OD x 28mm L

90.020/90.050 x 100.050/100.065 x 28

1шт.

15

87696615

LEVEL GAUGE

1шт.

16

47130060

O-RING

2шт.

17

87349969

RUBBER SEAL

2шт.

18

47130059

SCREW,Pan HD, M12 x 41mm

2шт.
