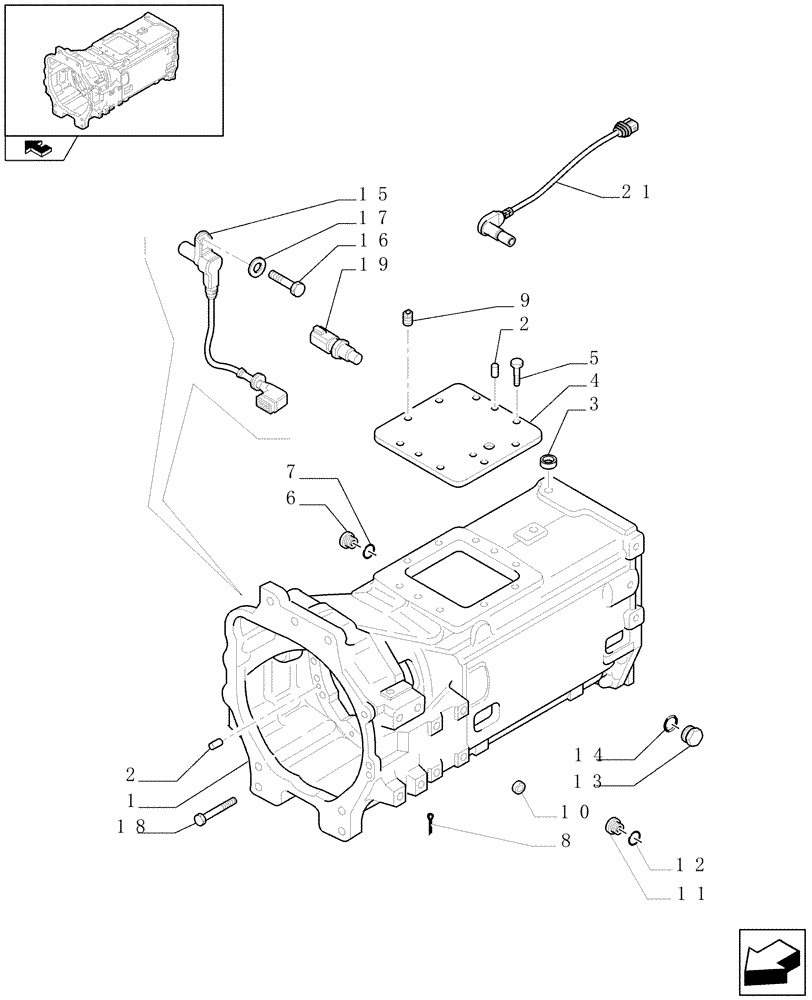

Запчасти Case IH PUMA 115 (1.21.0[01]) - CLUTCH BOX ASSY (03) - TRANSMISSION

1

87314354

HOUSING

Inc. 2, 3, Serial Range: -C6537

1шт.

1

84248416

TRANSMISSION HOUSING

Inc. 2, 3, Start Serial: D6537

1шт.

2

5153109

DOWEL,10mm OD x 15mm L

4шт.

Q.ty 2 for Reference

1шт.

3

14328701

PLUG,M20, Tapered

1шт.

4

5186785

COVER

1шт.

5

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

8шт.

6

10119311

PLUG,M16 x 1.5 x 12, Cl5.8

2шт.

7

14437885

O-RING,13.30mm ID x 2.40mm

2шт.

8

10798204

COTTER PIN,M6.3 x 32

1шт.

9

14324011

PLUG,Taper Pipe, Sq Hd, M10 x 1 x 14mm, Cl 5.8

1шт.

10

14328701

PLUG,M20, Tapered

2шт.

10

14328501

PLUG,M16, Tapered

1шт.

11

10118811

PLUG,M22 x 1.5 x 14, Cl5.8

1шт.

12

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

13

10273140

PLUG,Hex Skt, M18 x 1.5

1шт.

14

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

1шт.

15

84169162

SENSOR

Speed, Hall Effect, High Sens

1шт.

16

14305773

SCREW,M6 x 14mm

1шт.

17

12601279

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, ZND

1шт.

18

15981234

BOLT,Hex, M16 x 1.5 x 65mm, Cl 10.9

1шт.

18

11254134

SCREW,Hex, M16 x 1.5 x 80mm, Cl 10.9

4шт.

18

15982131

BOLT,Hex, M16 x 1.5 x 140mm, Cl 10.9

4шт.

18

15982334

BOLT,Hex, M16 x 1.5 x 150mm, Cl 10.9

2шт.

19

87564690

TEMPERATURE SENDER,3/8" - 18

1шт.

20

5145574

PLUG,M7 X 12.5mm

1шт.

With Water Proofing only, VAR.330448

1шт.

21

87564761

SENSOR

Speed

1шт.
