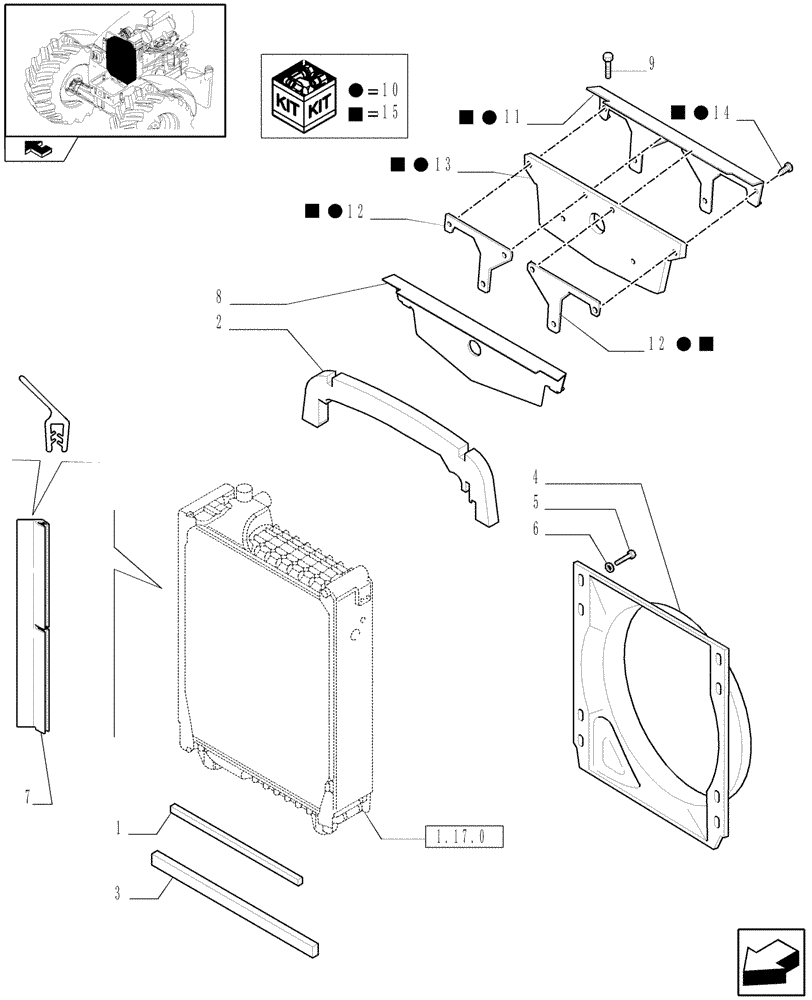

Запчасти Case IH PUMA 115 (1.17.5) - RADIATOR DUCT AND SEALS (02) - ENGINE EQUIPMENT

1

82031638

RUBBER SEAL,570mm L

1шт.

2

87316559

SEAL

1шт.

3

87315613

SEAL,445mm x 20mm x10mm

445MM

1шт.

3

87315614

SEAL,545mm x 25mm x 10mm

545MM

1шт.

4

87387897

SHROUD

1шт.

5

87377778

SCREW,Hex, M6 x 16mm, Cl 8.8

M6 x 16

8шт.

6

81872184

WASHER,6.4mm ID x 17mm OD

D=6

8шт.

7

87580269

SEAL

197MM

1шт.

8

87312432

PLATE

, Serial Range: -C5989

1шт.

For Suspended Axle, VAR.336811

1шт.

9

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

10

87668400

DEFLECTOR

ASSY, Start Serial: D5989

1шт.

11

87649701

DEFLECTOR

, Start Serial: D5989

1шт.

12

87649703

DEFLECTOR

, Start Serial: D5989

2шт.

13

87668399

FOAM

, Start Serial: D5989

1шт.

13

87649704

FOAM

, Start Serial: D5989

1шт.

For Suspended front axle, VAR. 330429 - 330430

1шт.

14

87635853

STUD,7.1mm D

, Start Serial: D5989

6шт.

15

87668401

DEFLECTOR

ASSY, Start Serial: D5989

1шт.

For Suspended front axle, VAR. 330429 - 330430

1шт.
