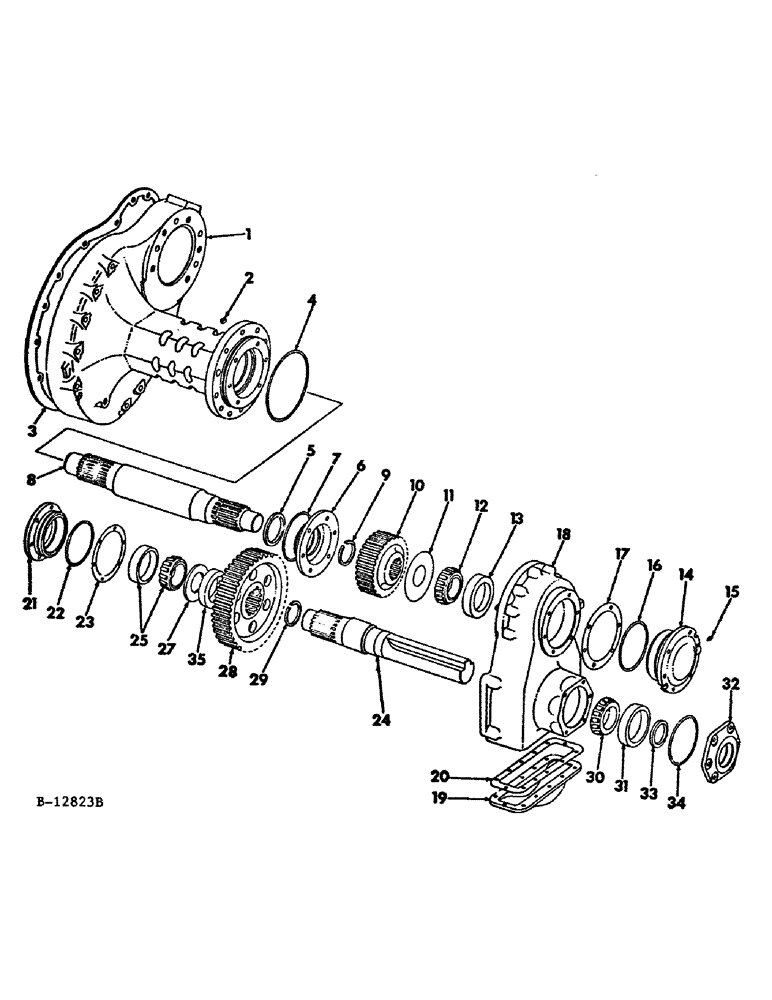

Запчасти Case IH 986 (07-20) - DRIVE TRAIN, REAR AXLE AND CONNECTIONS, 986 AND 1086 HI-CLEAR TRACTORS (04) - Drive Train

1

382856R41

CARRIER

ASSY, rear axle housing

2шт.

20890R1

SCREW

W/NYLON PELLET, 3/4-10 x 2-1/4 hex-hd cap

22шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 3-1/2 hex-hd cap

28шт.

413-1068

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 5

5/8-11 x 4-1/4 hex-hd cap

8шт.

222761

SCREW, 5/8-11 x 5/8 hex-soc-hd

8шт.

2

117758C1

SPACER

rear bracket support

4шт.

3

380225R2

GASKET

rear axle housing carrier

2шт.

4

22423R1

O-RING,0.139" Thk x 9.234" ID, -271, Cl 5, 75 Duro

9-1/4 x 9-1/2 x 1/8, right axle housing carrier

2шт.

5

380158R91

OIL SEAL

SEAL, rear axle drive gear oil

2шт.

6

382858R1

HUB

RETAINER, rear axle drive gear oil seal

2шт.

NLS

NO LONGER SERVICED

12шт.

7

3061207R1

O-RING,0.139" Thk x 6.234" ID, -259, Cl 5, 75 Duro

6-1/4 x 6-1/2 x 1/8, drive gear oil seal retainer

2шт.

8

382859R2

SHAFT

rear axle drive gear

2шт.

9

380220R1

SNAP RING,#362, 3.423, Ext

RING, rear axle drive gear retainer snap

2шт.

10

382861R2

PINION

GEAR, rear axle drive, 32T

2шт.

11

382878R1

SHIM

RETAINER, drive gear shaft outer bearing grease

2шт.

12

74737R91

BEARING ASSY

ASSY, drive gear shaft outer cone

2шт.

13

71455R1

BEARING ASSY,136.53mm OD x 31.75mm W

BEARING, drive gear shaft outer cup

2шт.

14

382880R1

CAP

drive gear shaft outer brg

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

12шт.

15

126098

FITTING

5/16 drive-type str lub

2шт.

16

3061207R1

O-RING,0.139" Thk x 6.234" ID, -259, Cl 5, 75 Duro

6-1/4 x 6-1/2 x 1/8, drive gear shaft outer brg cap

2шт.

17

382882R1

SHIM

drive gear shaft outer brg cap, .007

1шт.

17

382883R1

SHIM

drive gear shaft outer brg cap, .012

1шт.

17

382884R1

SHIM, drive gear shaft outer brg cap, .0299

1шт.

17

382885R1

SHIM

drive gear shaft outer brg cap, .004

1шт.

18

382886R31

HOUSING

ASSY, rear axle

2шт.

20164R1

PIN, 7/8 x 2-1/4 dowel

2шт.

444678

PLUG

1-11-1/2 auto. sq-soc-hd pipe

2шт.

19

382887R11

PAN, ENGINE OIL

PAN ASSY, rear axle housing

2шт.

445686

PLUG

3/8-18 auto. sq-soc-hd pipe

2шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

24шт.

20

382888R1

GASKET

rear axle housing pan

2шт.

21

382889R1

CAP

rear axle inner bearing

2шт.

10332

WASHER

3/8 pln lock

12шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

12шт.

22

606922C1

O-RING,0.139" Thk x 5.734" ID, -256, Cl 5, 75 Duro

5-3/4 x 6 x 1/8, rear axle inner brg cap

2шт.

23

382891R1

SHIM

rear axle inner bearing, .007

1шт.

23

382892R1

SHIM

rear axle inner bearing, .012

1шт.

23

382893R1

SHIM

rear axle inner bearing, .0299

1шт.

23

382894R1

SHIM

rear axle inner bearing, .0040 - .0050

1шт.

24

382895R2

SHAFT

AXLE, rear

2шт.

25

ST2111

BEARING ASSY,66.68mm ID x 122.24mm OD x 38.1mm W

rear axle inner

2шт.

26

(Not used)

1шт.

27

384304R1

SPACER

SPACER, rear axle

2шт.

28

383644R1

PINION

GEAR, rear axle driven, 52 T

2шт.

29

380220R1

SNAP RING,#362, 3.423, Ext

RING, right axle driven gear retainer snap

2шт.

30

ST2107

TAPERED BEARING

BEARING ASSY, rear axle outer cone

2шт.

31

13249D

BEARING CUP,152.4127 mm OD x 39.7895 mm

rear axle outer cup

2шт.

32

530032R1

CAP

rear axle outer bearing

2шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

12шт.

33

378077R91

OIL SEAL

rear outer bearing cap oil

2шт.

34

264681R1

O-RING,0.139" Thk x 6.48" ID, -260, Cl 5, 75 Duro

6-1/2 x 6-3/4 x 1/8, right axle outer brg cap

2шт.

35

387037R1

SPACER

rear axle gear

2шт.
