Запчасти Case IH 986 (12-11) - POWER, FUEL PIPE CONNECTIONS Power

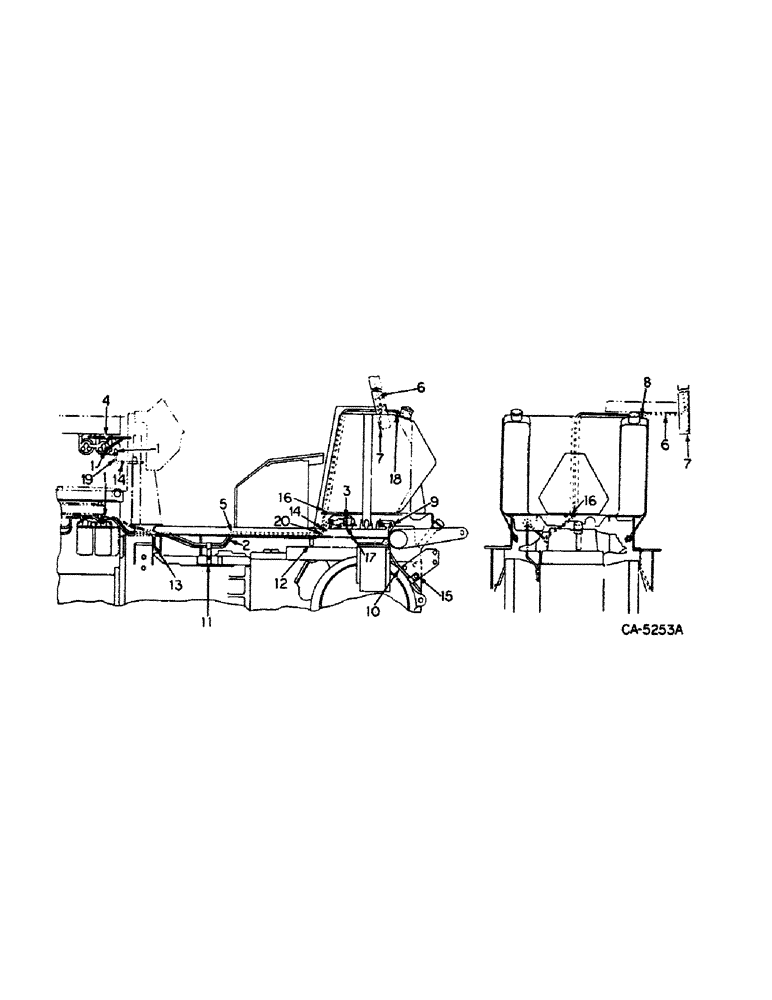

Схема запчастей Case IH 986 - (12-11) - POWER, FUEL PIPE CONNECTIONS Power
19
5
14
7
13
15
1
1
17
1
16
16
8
10
20
18
3
4
14
6
7
2
11
12
9
6

Артикул

Название

Примечание

Количество

1

104469C1

ELBOW

male 90 deg 1/2 tube 1/4 pipe thread tank to filter end, all except 886 tractor

1шт.

refer #1 (104469C1) comes with strgt. male connector w/ sleeve & elbow

1шт.

1

193004

ELBOW

male 90 deg 3/8 tube 1/4 pipe thread tank to filter end, 886 tractor w/d-360 engine

1шт.

1

133049H1

CONNECTION

CONNECTOR, 3/8 x 1/4 return, 786 tractor, 886 tractor w/d-358 engine

1шт.

refer #1 (133049H1) subs out to all the components, including the male connector. (IF YOU ARE LOOKING FOR IT) - ALSO NOTE 133049H1 IS USED FOR 986 TR W/D436 ENGINE. ph-cam 6-24-99

1шт.

2

TUBE, tank to filter, 56 inches, purchase tubing material from bulk stock as per length shown, 1/2 OD tubing 74814C1

1шт.

184820H1

CONNECTOR, ELEC

CONNECTOR, 1/2 x 1/4 male supply, 786 tractor, 886 tractor w/d-358 engine

1шт.

3

405678R1

VALVE

fuel tank shut-off fuel tank to fuel filter

1шт.

4

689382C1

TEE

fuel leak off, part of engine

1шт.

5

TUBE, fuel line return, 102 inches, purchase tubing material from bulk stock as per length shown, 3/8 OD tubing 74813C1

1шт.

For one end of this line see Ref. 1. For opposite end, see D-436 engine cat see fuel leak-off tee under fuel inj pump in engine cat. it 19. ph-cam

1шт.

6

TUBE, fuel tank vent, 48 inches, purchase tubing material from bulk stock as per length shown, 1/4 OD tubing 74812C1

1шт.

7

374903R1

CLIP

fuel tank vent tube

1шт.

8

28068R1

HOSE CLAMP,#4, 1/4", Spring

CLAMP, fuel tank vent tube, replaces 120396C1, tractors equipped w/cab or rops

1шт.

8

118028C1

CAP, fuel tank vent seal, 786 tractor w/non-rops frame

1шт.

9

104465C1

DRAIN VALVE

VALVE, fuel tank drain

1шт.

10

TUBE, fuel drain line, 18 inches, purchase tubing material from bulk stock as per length shown, 3/8 OD tubing 74813C1

1шт.

11

380053C1

CLIP, fuel lines, double

1шт.

12

120160C2

CLIP

fuel lines, angle double

1шт.

95-11041

WASHER,3/8"

(.406 x .812 x .051) 3/8"

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

3/8-16 x 3/4 hex-hd cap

1шт.

13

120161C1

CLIP

fuel lines, twisted double

1шт.

95-11041

WASHER,3/8"

(.406 x .812 x .051) 3/8"

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

3/8-16 x 3/4 hex-hd cap

1шт.

14

137597C1

ADAPTER,11/16" - 20

fuel line, replaces 279025R91

2шт.

15

384558R1

CLIP

fuel tank drain tube

1шт.

16

363660R1

CLIP

fuel return tube

1шт.

20816R1

BOLT, 3/8-16 x 1/2 znd sq-nk crg

1шт.

95-11041

WASHER,3/8"

(.406 x .812 x .051) 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

17

681209C1

HOSE CLAMP,#32, 1.56/2.50 Type F Worm, W/liner

CLAMP, no. 32 hose

1шт.

18

872436R1

HOSE CLAMP,#6, 3/8", Spring

CLAMP, fuel line return, replaces 120395C1

1шт.

19

120426C1

FUEL TUBE

TUBE ASSY, fuel link, filter end, 886 tractor w/d-360 engine only

1шт.

20

120406C1

FUEL TUBE

TUBE ASSY, fuel line, fuel tank end, all tractors

1шт.

Выбрано товаров: 34
