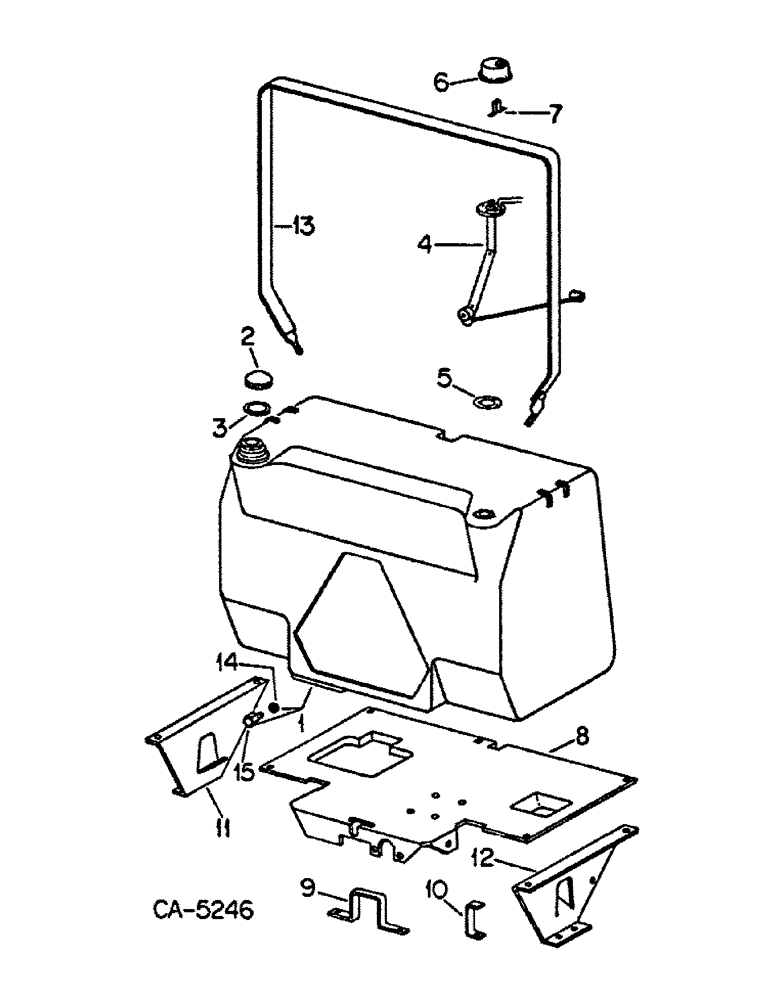

Запчасти Case IH 986 (12-10) - POWER, FUEL TANK AND SUPPORT Power

1

72905C92

TANK

ASSY, 50 gal, without auxiliary tank, 786, 886, and 986 tractors

1шт.

1

72904C92

TANK

ASSY, fuel, 63 gal, without auxiliary tank, 1086 and 1486 tractors

1шт.

2

104781C1

CAP

fuel tank filler

1шт.

2

224839C91

CAP

ASSY, fuel tank filler, 786 tractors w/non-rops frame

1шт.

3

23977DD

GASKET,47.5mm ID x 65.89mm OD x 2.39mm Thk

fuel tank filler cap

1шт.

refer #3 23977DD is Not Serviced Separately

1шт.

4

107374C1

GAUGE

GAGE, electric fuel, sending unit, tractor w/o auxiliary fuel tank

1шт.

4

107531C2

ELECTRICAL GAUGE

GAGE, electric fuel sending unit, tractor w/auxiliary fuel tank

1шт.

5

104812C1

GASKET

sending unit

1шт.

423546

SCREW,Hex Hd, #10-24 x 3/4", w/LW

10-24 x 3/4 hex-hd mach w/ext tooth lock washer

5шт.

6

120194C1

CAP

fuel gauge sending unit

1шт.

7

120193C2

CLAMP

cap mounting, bracket

1шт.

167064

SHIELD

SCREW, 10-24 x 1/2 cr-res pan type d

1шт.

8

103939C1

SUPPORT ASSY, fuel tank

1шт.

619008R1

BOLT

1/2 x 1 pln crg type 5

4шт.

102637

NUT,1/2"-13, G5

4шт.

9

104723C1

SUPPORT

fuel tank front, bracket

1шт.

179812

GEAR

SCREW, 5/16-18 x 1/2 hex-hd cap

2шт.

10

104722C1

CHANNEL

tank support rear, bracket

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

11

103941C1

SUPPORT

LH, bracket

1шт.

12

103942C1

SUPPORT

RH, bracket

1шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

4шт.

127507H

WASHER

.406 x .875 x .164 pln flat

4шт.

102635

NUT,3/8"-16, G5

4шт.

13

103945C1

STRAP

ASSY, fuel tank hold down

1шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

2шт.

14

120156C1

NUT

fuel tank

1шт.

15

120157C1

CONNECTOR, ELEC

CONNECTOR, fuel tank

1шт.

536652R1

WASHER,11.13mm ID x 28.57mm OD x 1.22mm Thk

flat

1шт.

407220R1

PRODUCT GRAPHIC

PACKAGE, smv emblem

1шт.

79718C91

BRACKET

PACKAGE, smv mounting bracket, 886, Serial Range: -15173

1шт.

79718C91

BRACKET

PACKAGE, smv mounting bracket, 986, Serial Range: -21116

1шт.

79718C91

BRACKET

PACKAGE, smv mounting bracket, 1086, Serial Range: -37426

1шт.

79718C91

BRACKET

PACKAGE, smv mounting bracket, 1486, Serial Range: -21071

1шт.

21737R1

BOLT,Sq Nk, 5/16" - 18 x 5/8", Gr 2

5/16 x 5/8 crg type 1

2шт.

19296R1

NUT,5/16"-18, G5

5/16 cad type 5

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

2шт.

120376

NUT,5/16"-18, G5

2шт.

202013C2

TRAFFIC SIGN

PRODUCT GRAPHIC, smv, 786 tractors

1шт.

202013C2

TRAFFIC SIGN

PRODUCT GRAPHIC, smv, 886, Start Serial: 15174

1шт.

202013C2

TRAFFIC SIGN

PRODUCT GRAPHIC, smv, 986, Start Serial: 21117

1шт.

202013C2

TRAFFIC SIGN

PRODUCT GRAPHIC, smv, 1086, Start Serial: 37427

1шт.

202013C2

TRAFFIC SIGN

PRODUCT GRAPHIC, smv, 1486, Start Serial: 21072

1шт.

144261C2

FASTENER

smv hold down, used with 202013C2

1шт.

204786C91

FUEL TANK REMOVAL PARTS PACKAGE, consists of

1шт.

Auxiliary tank must be removed from 886 tractor before 86 series planters can be attached.

1шт.

444028

REDUCER,3/8"-18 NPTF x 1/4"-18 Fem NPTF

BUSHING, 3/8 to 1/4 pln auto pipe

1шт.

120156C1

NUT

fuel tank

1шт.

120157C1

CONNECTOR, ELEC

CONNECTOR, fuel tank

1шт.

536652R1

WASHER,11.13mm ID x 28.57mm OD x 1.22mm Thk

1шт.

104465C1

DRAIN VALVE

VALVE, drain

1шт.

104896C1

TUBE,9.52 mm OD, 457.2 mm Length

drain

1шт.

384558R1

CLIP

drain tube

1шт.

217329C2

HOSE

tank adapter

1шт.

104724C1

FITTING

ADAPTER

1шт.

681209C1

HOSE CLAMP,#32, 1.56/2.50 Type F Worm, W/liner

CLAMP, hose adapter

2шт.

104469C1

ELBOW

1шт.

104893C2

TUBE, supply 12.7 mm OD, 1422.4 mm Length

1шт.
