Запчасти Case IH 986 (12-07) - POWER, ASPIRATED AIR CLEANER ATTACHMENT, 986 TRACTORS Power

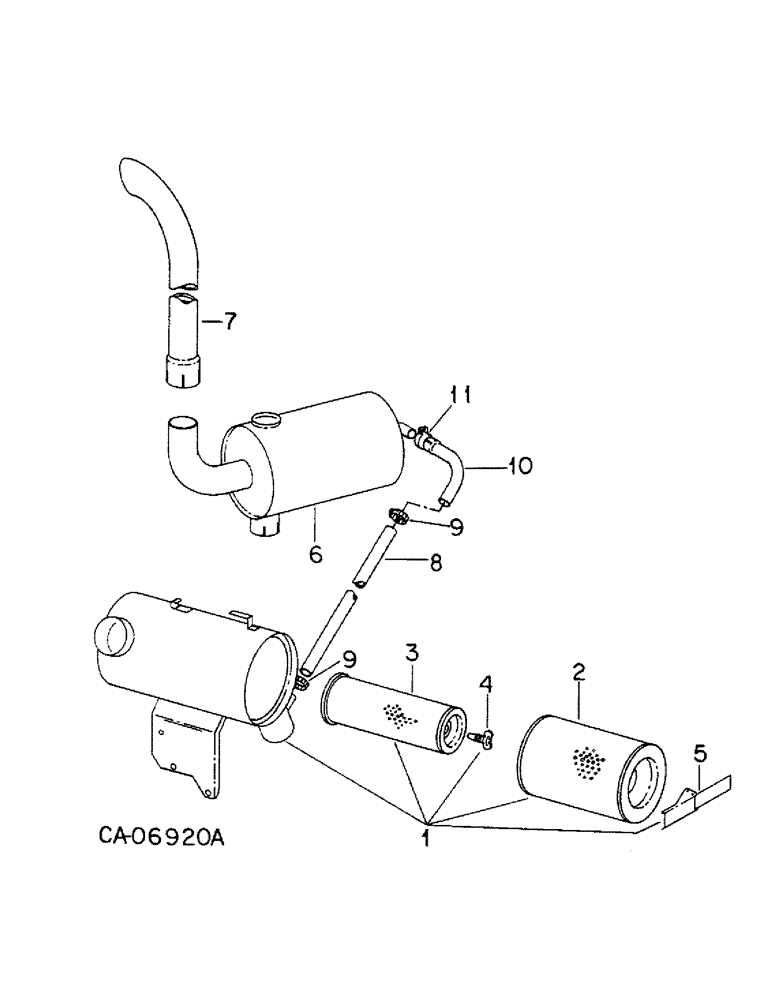

Схема запчастей Case IH 986 - (12-07) - POWER, ASPIRATED AIR CLEANER ATTACHMENT, 986 TRACTORS Power
4
5
9
8
11
7
1
2
6
9
3
10

Артикул

Название

Примечание

Количество

1

146518C91

CLEANER ASSY, air

1шт.

2

71912C2

AIR FILTER

ELEMENT ASSY, primary

1шт.

3

529852R5

AIR FILTER

ELEMENT ASSY, safety

1шт.

4

389264R91

BOLT (SPREADER),Wing, 3/8" - 16, W/ Wshr, Gasket

BOLT ASSY, safety element

1шт.

5

71913C1

LOCK VALVE

LATCH ASSY, element

1шт.

6

146519C1

MUFFLER

exhaust aspirator

1шт.

7

146520C2

PIPE

exhaust

1шт.

8

407001R1

HOSE,31.75mm ID x 914.4mm L, SAE 20R1

aspirator, replaces 533101R1

1шт.

9

311164C91

HOSE CLAMP,#20, 0.81/1.75 Type F Worm

CLAMP, aspirator hose

2шт.

10

107380C1

TUBE,32.385 mm ID, 1.25" OD, 76, 70 mm Length

aspirator elbow, replaces 1252574C1

1шт.

11

680623C1

TERMINAL CONNECTOR

CLAMP, aspirator elbow

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

Выбрано товаров: 14
