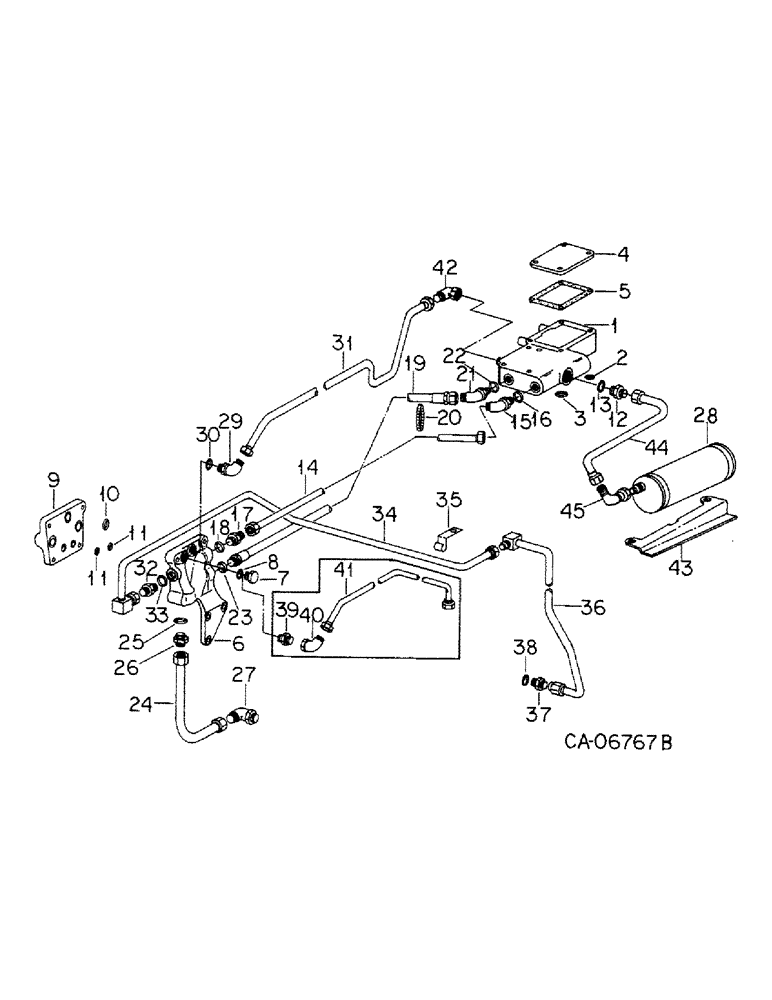

Запчасти Case IH 986 (10-03) - HYDRAULICS, PRIORITY VALVE AND CONNECTIONS (07) - HYDRAULICS

1

133799C91

VALVE

ASSY, priority, refer to priority valve this group for list of components

1шт.

186279

BOLT,Hex, 3/8" - 16 x 3 1/8", Gr 5

3/8 x 3-1/8 pln type 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1шт.

2

381884R1

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

1 x 1-3/16 x 3/32

1шт.

3

384377R1

O-RING,0.103" Thk x 2.55" ID, -141, Cl 6, 90 Duro

2-5/16 x 2-1/2 x 3/32

1шт.

4

108514C1

COVER

linkage access

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

5

108515C1

GASKET

cover

1шт.

6

127841C1

BRACKET

aux valve

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 pln type 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

7

9410357

PLUG

5/16 C-Z str thd o-ring boss, tractors w/o draft control

1шт.

9

127896C1

COVER

aux valve end

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 pln type 5

4шт.

10

391912R1

O-RING,0.737" ID x 0.103" Width

3/4 x 15/16 x 3/32

3шт.

11

702788R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

3/8 x 9/16 x 3/32

2шт.

12

9410205

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR, 3/4-27 deg hyd flared tube

1шт.

13

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube

1шт.

14

127935C1

HYD TUBE

TUBE ASSY, motor supply

1шт.

15

9411107

ELBOW,45 Degree, 1 1/16"-12 x 1 1/16"-12, O-Ring

3/4-37 deg hyd flared tube adj str thd 45 deg

1шт.

16

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 tube

1шт.

17

9410205

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR, 3/4-37 deg hyd flared tube

1шт.

18

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 tube

1шт.

19

142508C3

HOSE,15.88mm ID x 641.4mm L, SAE 100R2

auxiliary supply

1шт.

20

306132C1

CABLE TIE,14.5" L

STRAP, auxiliary supply hose, 986, Serial Range: -25684

1шт.

20

306132C1

CABLE TIE,14.5" L

STRAP, auxiliary supply hose, 1086, Serial Range: -52690

1шт.

20

306132C1

CABLE TIE,14.5" L

STRAP, auxiliary supply hose, 1486, Serial Range: -27875

1шт.

21

9411107

ELBOW,45 Degree, 1 1/16"-12 x 1 1/16"-12, O-Ring

3/4 37 deg hyd flared tube adj str thd 45 deg

1шт.

22

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube

1шт.

23

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube

1шт.

24

127939C1

HYD TUBE

TUBE ASSY, aux valve bracket return

1шт.

25

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 tube

1шт.

26

9410205

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR, 3/4 C-Z hyd fld short swivel

1шт.

27

9402867

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 3/4"-14, NPTF

3/4 C-Z hyd flared tube 90D

1шт.

28

1252167C1

CYLINDER

TANK ASSY, hyd pressure, attenuator, replaces 140715C1 by also ordering 1 336257R1 clamp, 1 1252169C1 bracket, 1 1252168C1 tube assy & 1 9410283 elbow

1шт.

336257R1

CLAMP

4.50 min hvy/duty t-bolt

1шт.

413-1068

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 5

BOLT, 5/8 x 4-1/4 pln type 5

2шт.

390309C1

WASHER

.656 x 1.312 x .095 hdn

2шт.

29

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

3/8 C-Z hyd fld adj 90D

1шт.

30

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

31

148895C1

HYD TUBE

TUBE ASSY, motor priority signal

1шт.

145330C1

CLAMP

tube

1шт.

32

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 3/8 C-Z hyd fld short swivel

1шт.

33

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

34

224443C2

HYD TUBE

TUBE ASSY, pump signal upper

1шт.

35

140733C1

COLLAR CLAMP

CLAMP, tube

1шт.

36

224407C2

HYD TUBE

TUBE ASSY, pump signal lower

1шт.

REF# 36-P/N 224407C2 TUBE ASSY., PUMP SIGNAL LOWER. THE ENDS ARE IDENTICAL. NOT LIKE SHOWN IN PICTORIAL. HAS FLARE AND SLEEVE ON BOTH ENDS. JBEDFORD 11/7/95.

1шт.

REF# 36 - if dealer has tube as pictured see service bulletin S-4187. Must change item #34 also to retrofit. bp 6/5/96

1шт.

37

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 3/8 OD tube

1шт.

38

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

39

127866C1

VALVE

ASSY, draft control signal check

1шт.

W/draft control only

1шт.

40

9410279

ELBOW,90 Degree, 1/2"-20, 37 Degree x 1/2"-20, 37 Degree Fem Sw

hyd 37 deg flare tube 90 deg swivel

1шт.

W/draft control only

1шт.

41

127936C2

HYD TUBE,0.312" OD, 257.05, 291.08 mm Length

TUBE ASSY, draft control signal

1шт.

W/draft control only

1шт.

42

9410280

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

3/8 C-Z hyd fld 90D swivel

1шт.

43

1252169C1

BRACKET

mounting

1шт.

390309C1

WASHER

.656 x 1.312 x .095 hdn

2шт.

271571

SEALING RING COLLAR

BOLT, 5/8 x 4-1/4 pln type 5

2шт.

44

1252168C1

HYD TUBE

TUBE ASSY, attenuator

1шт.

45

9410283

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

3/4 C-Z hyd fld 90D swivel

1шт.

8

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, 5/16 OD tube

1шт.
