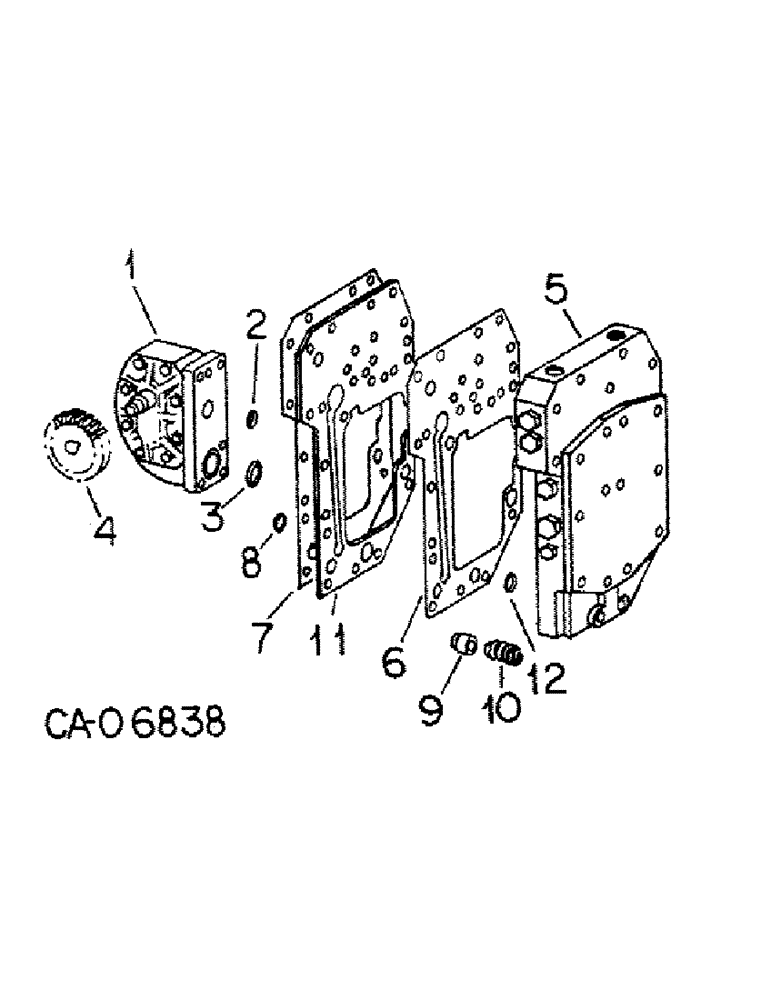

Запчасти Case IH 986 (10-02) - HYDRAULICS, POWER SUPPLY, ON CLUTCH HOUSING (07) - HYDRAULICS

1

133441C92

PUMP

ASSY, hyd gear, TRW, optional w/120114C92, refer to hydraulic pump this group for list of components

1шт.

1

1949302C1

REMAN-HYD PUMP

Reman For New PN 133441C92

1шт.

1

1949303C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

120114C92

PUMP, HYDRAULIC

PUMP ASSY, hyd gear, cessna, optional w/133441C92, refer to hydraulic pump this group for list of components

1шт.

1

1949302C1

REMAN-HYD PUMP

1086, 1486, 986, All INTERNATIONAL DIESEL TRACTOR, PUMP ASSY (1/74-12/79)

1шт.

1

1949303C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

120114C92GV

PUMP

PUMP ASSY, hyd gear, cessna, optional w/133441C92, refer to hydraulic pump this group for list of components

1шт.

1

1949302C1

REMAN-HYD PUMP

Remanufactured HYDRAULIC PUMP - for N.A. Only

1шт.

1

1949303C1

CORE-HYDRAULIC PUMP

Return No, HYDRAULIC PUMP - for N.A. Only

1шт.

23761R1

SCREW,Hex, 5/16"-18 x 2 5/8", G5

BOLT, 5/16 x 2-5/8 pln type 5

4шт.

382331R1

SEALING WASHER,8.33mm ID x 12.7mm OD x 0.79mm Thk

sealing

4шт.

2

21433R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

11/16 x 7/8 x 3/32, pump pressure port

1шт.

3

372821R1

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

1-1/16 x 1-1/4 x 3/32, pump suction port

1шт.

4

405181R1

GEAR

hyd pump drive

1шт.

19258R1

LOCK NUT,1/2"-20, GB

NUT, 1/2-NF p/t lock type 5

1шт.

5

VALVE ASSY, multiple control, refer to multiple control valve this group for list of components

1шт.

6

382336R4

GASKET

multiple control valve spacer plate, HV, 1486 tractors only

1шт.

7

382335R3

GASKET

multiple control valve plate lt, (or as required)

1шт.

7

382336R4

GASKET

multiple control valve plate HV, (or as required)

1шт.

8

21433R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

11/16 x 7/8 x 3/32, power steering pressure port

1шт.

9

354057R2

VALVE

power steering return check

1шт.

10

382334R1

SPRING

power steering return check

1шт.

11

67419C1

PLATE ASSY.

PLATE, multiple control valve spacer, 1486 tractor only

1шт.

12

21433R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

11/16 x 7/8 x 3/32, spacer plate, 1486 tractors only

1шт.
