Запчасти Case IH 966 (07-29) - DRIVE TRAIN, RANGE TRANSMISSION IN REAR FRAME, 766 AND 966 GEAR DRIVE TRACTORS (04) - Drive Train

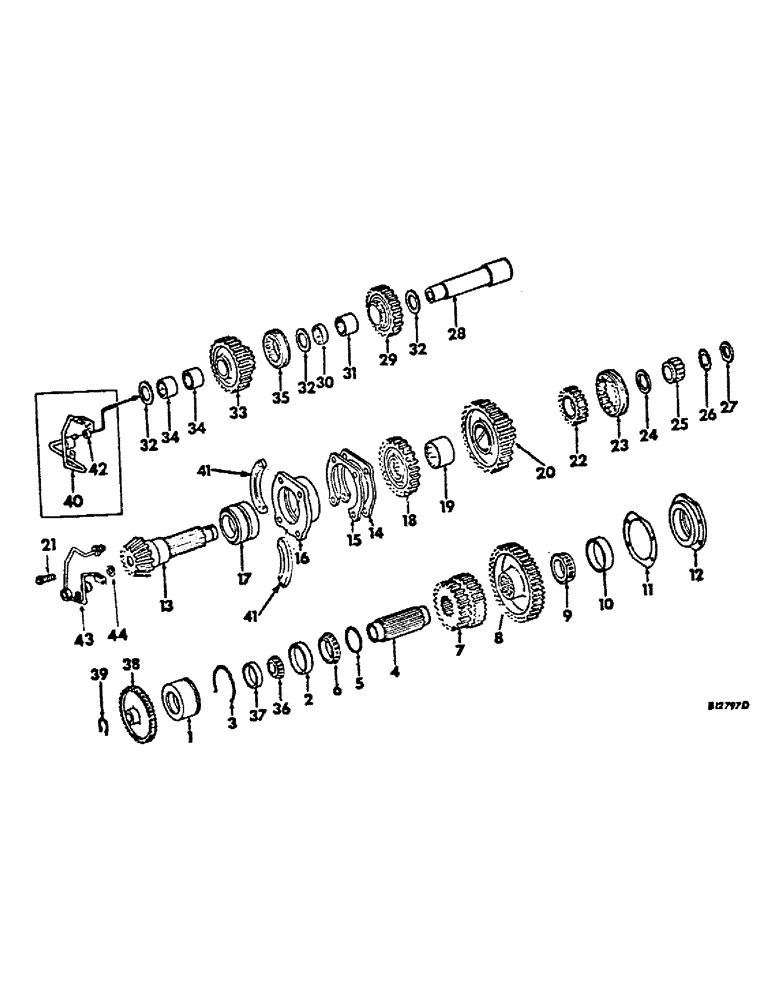

Схема запчастей Case IH 966 - (07-29) - DRIVE TRAIN, RANGE TRANSMISSION IN REAR FRAME, 766 AND 966 GEAR DRIVE TRACTORS (04) - Drive Train
5
26
21
8
11
9
17
1
6
32
39
27
14
12
28
18
41
36
40
42
30
13
34
33
38
32
43
7
32
31
3
37
20
2
16
22
4
19
23
41
34
29
10
35
25
24
44
15

Артикул

Название

Примечание

Количество

1

528695R1

CAGE

ASSY, countershaft rear bearing, 766 - serial no. 11820 & below, 966 - serial no. 20685 & below

1шт.

1

68523C1

CAGE

ASSY, countershaft rear bearing, 766 - serial no. 11821 & above, 966 - serial no. 20686 & above

1шт.

2

625743C1

BEARING CUP,90mm OD x 18.5mm W

BEARING, countershaft cup

1шт.

3

384340R1

RING, SNAP

RING, brg cage rear retaining, for use w/cage assy, 528695R1

1шт.

3

26522R1

SNAP RING,4.625", Int, #462

Ring, Snap, , brg cage rear, for use w/cage assy, 68523C1 4.625", Int, #462

1шт.

4

528680R2

SHAFT

COUNTERSHAFT

1шт.

5

583564R1

SNAP RING,#250, 2.356, Ext

RING, countershaft snap

1шт.

6

625742C91

BEARING

ASSY, countershaft cone

1шт.

7

528681R1

GEAR

lo drive, 28 T - 33 T

1шт.

8

406028R1

GEAR

constant mesh, 50 T

1шт.

9

625742C91

BEARING

ASSY, countershaft front cone

1шт.

10

625743C1

BEARING CUP,90mm OD x 18.5mm W

BEARING, countershaft front cup

1шт.

11

380280R1

SHIM

countershaft bearing, (or as required)

2шт.

12

528682R1

CAGE

countershaft front bearing

1шт.

NLS

NO LONGER SERVICED

4шт.

13

380355R1

SHAFT

transmission main and drive bevel pinion, 13 teeth, 766 - gasoline tractors

1шт.

13

395828R91

SET

BEVEL GEARS, matched set, order package, 120265C91, 766 diesel and 966 tractors, consists of (1) gear 388916R1 (NSS), (1) shaft 395013R1 (NSS), (1) tag 1084053R1 (NSS)

1шт.

13

68529C91

GEAR-SET

BEVEL GEARS, matched set, 766 diesel and 966 hi-clear tractors, consists of (1) gear 380132R1 (NSS), (1) shaft 380160R1 (NSS), (1) tag 1084237R1 (NSS)

1шт.

14

380283R2

SHIM

main shaft brg, .004

1шт.

15

380284R2

SHIM

main shaft brg, .007 (or as required)

2шт.

16

380285R1

CAGE

main shaft bearing

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

380286R1

BOLT,Flg, 1/2" - 13 x 1 1/2"

main shaft bearing cage, 766 diesel and 966 hi-clear tractors

2шт.

17

ST2126

TAPERED BEARING,2.5" ID x 4.4375" OD x 1.1875"

BEARING, main shaft rear, 766 gasoline tractors

1шт.

17

ST2127

BEARING ASSY,63.5mm ID x 112.71mm OD x 68.15mm W

BEARING, main shaft rear, 766 diesel and 966 tractors

1шт.

18

380288R2

GEAR WHEEL

GEAR, reverse driven - 35 T

1шт.

19

380289R1

CARRIER

hi-lo driven gear

1шт.

20

528683R11

GEAR

ASSY, hi-low driven, 45 T

1шт.

21

380286R1

BOLT,Flg, 1/2" - 13 x 1 1/2"

lub tube mounting bracket upper

1шт.

21

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

Lub tube mounting bracket lower Hex, 1/2"-13 x 1 1/2", G5, Full Thd

1шт.

380286R1

BOLT,Flg, 1/2" - 13 x 1 1/2"

lub tube mounting bracket lower, hi-clear tractors

1шт.

406579R1

WASHER

under lub tube mounting bracket spacer

2шт.

406579R1

WASHER

lub tube mtg bracket

2шт.

22

533927R1

CARRIER

shift collar

1шт.

23

393521R1

COLLAR

hi-lo shift

1шт.

24

380294R1

SPACER

main shaft

1шт.

25

380295R91

BEARING, ROLLER, CYL,40mm ID x 69.58mm OD x 30.16mm W

main shaft front, all 766 tractors and 966 hi-clear tractors

1шт.

25

391897R91

BEARING ASSY,40mm ID x 77.62mm OD x 30mm W

main shaft front, 966 tractors except hi-clear

1шт.

26

359081R1

WASHER,38.89mm ID x 61.91mm OD x 1.52mm Thk

main shaft lock

1шт.

27

359082R2

NUT

main shaft

1шт.

28

380296R11

SHAFT

ASSY, reverse idler, 766 - serial no. 11820 & below, 966 - serial 20685 & below

1шт.

28

67774C1

SHAFT

ASSY, reverse idler, 766 - serial no. 11821 & above, 966 - serial no. 20686 & above

1шт.

29

393523R1

GEAR

reverse idler - 30 T

1шт.

30

205369R91

NEEDLE BEARING,Needle, 41.26mm ID x 50.81mm OD x 15.88mm W

BEARING, idler gear rear

1шт.

31

166957R91

NEEDLE BEARING,Needle, 41.26mm ID x 50.81mm OD x 31.75mm W

BEARING, idler gear front

1шт.

32

380300R1

THRUST WASHER,41.66mm ID x 60.96mm OD x 2.54mm Thk

idler gear thrust

3шт.

33

393525R2

GEAR

reverse drive - 34 T

1шт.

34

166957R91

NEEDLE BEARING,Needle, 41.26mm ID x 50.81mm OD x 31.75mm W

BEARING, drive gear

2шт.

35

393524R1

COLLAR

forward reverse shift

1шт.

36

ST2135

BEARING ASSY,33.34mm ID x 19.58mm W

IPTO driven shaft cone

1шт.

37

ST991

BEARING CUP

BEARING, IPTO driven shaft cup

1шт.

38

380319R1

PINION

GEAR, pump drive - 61 T

1шт.

39

384341R1

RING, SNAP

RING, pump drive gear retaining

1шт.

40

65448C1

TUBE

ASSY, pressure lub, also order ring, 65448C1, 766 - serial no. 11820 & below, 966 - serial no. 20685 & below

1шт.

41

Not used in this application

1шт.

42

65447C1

RING

lub tube seal, 766 - serial no. 11820 & below, 966 - serial no. 20685 & below

1шт.

43

68688C1

TUBE

TRANSMISSION ASSY, transmission lub, 766 - serial no. 11821 & above, 966 - serial no. 20686 & above

1шт.

44

67745C1

SEALING RING

main shaft fitting, 766 - serial no. 11821 & above, 966 - serial no. 20686 & above

1шт.

120265C91

GEAR-SET

PACKAGE, bevel gear and pinion, consists of (1) shaft, 13T (NSS), (1) bevel gear, 51T (NSS), (1) shim 380283R2, (2) shim 380284R2, (2) retainer 529464R1, (1) bearing 528684R91, (1) washer 359081R1, (1) nut 359082R2, (1) instruction (NSS)

1шт.

Выбрано товаров: 59
