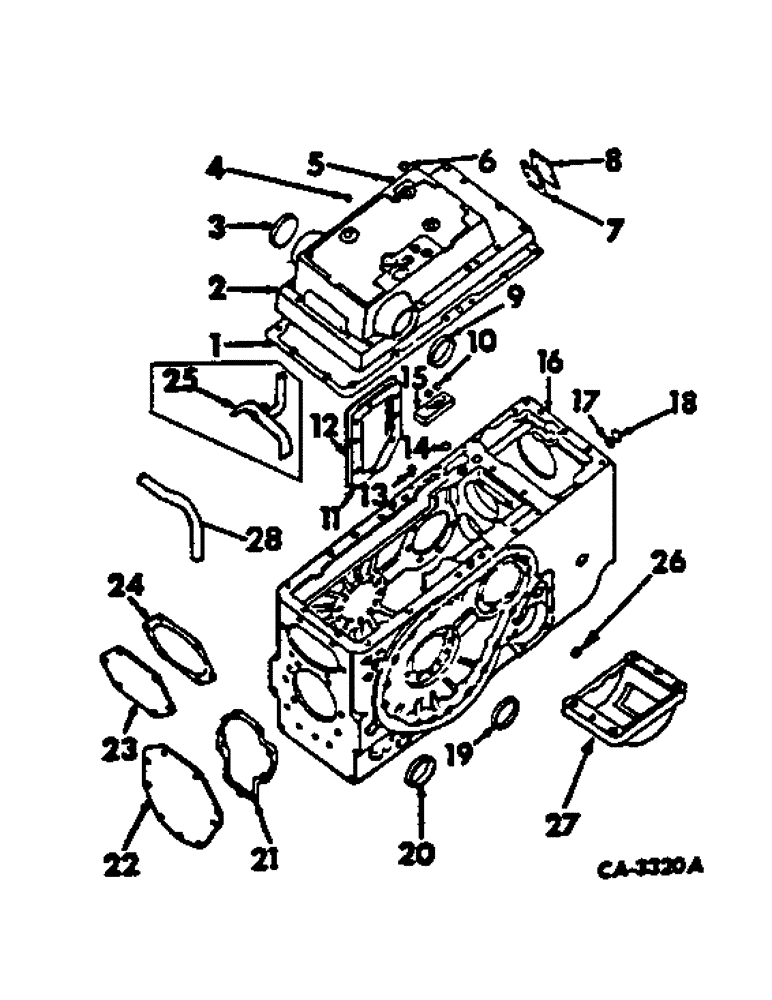

Запчасти Case IH 966 (07-26) - DRIVE TRAIN, REAR FRAME, COVER AND CONNECTIONS, 766 AND 966 AND HYDRO 100 TRACTORS (04) - Drive Train

1

380264R2

GASKET

rear frame cover

1шт.

2

398352R21

COVER

ASSY, rear frame, gear drive tractors

1шт.

2

406552R92

COVER ASSY, rear frame, 966 hydrostatic drive and hydro 100 tractors

1шт.

2

398353R91

COVER ASSY, rear frame, 766 and 966 tractors with draft control

1шт.

2

528195R92

COVER

ASSY, rear frame, hydro 100 tractors with draft control

1шт.

444776

PLUG,Sq Soc, 1/4"-18 NPTF

1/4-18 NPTF sq-soc pipe

1шт.

20203R1

BOLT,Hex, 5/8" - 11 x 3 7/8", Gr 5

SCREW, 5/8-11 x 3-7/8 hex-hd cap

16шт.

3

380174R1

PLUG,Cup, 3.510"

Rockshaft opening LH Cup, 3.510"

1шт.

4

380263R1

PLUG

eccentric shaft & mounting bolt openings cup

5шт.

5

381884R1

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

1 x 1-3/16 x 3/32 cover to seat support, small

2шт.

5

386867R1

O-RING,0.103" Thk x 1.11" ID, -122, Cl 6, 90 Duro

1-1/8 x 1-3/16 x 3/32, cover to seat support

1шт.

6

384377R1

O-RING,0.103" Thk x 2.55" ID, -141, Cl 6, 90 Duro

2-5/16 x 2-1/2 x 3/32 cover to seat support, large

1шт.

7

382416R1

GASKET

valve, adj opening cover, tractors without draft control

1шт.

8

382415R1

COVER

valve adj opening, tractor without draft control

1шт.

179814

SPACER

4шт.

9

380173R1

PLUG,Cup, 3.762"

Rockshaft opening RH Cup, 3.762"

1шт.

10

387926R2

RING

seal, draft control port cover

2шт.

11

69681C1

GASKET

drive attachment opening cover, not used on tractors with all wheel drive

1шт.

12

380330R3

COVER

drive attachment opening, not used on tractors with all wheel drive

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

8шт.

13

113702

OILER

BREATHER

2шт.

14

388306R1

RING,32.77mm ID x 39.12mm OD x 3.17mm Thk

SEAL, rear frame pressure port oil

1шт.

15

382758R1

COVER

draft control port

1шт.

NLS

NO LONGER SERVICED

2шт.

16

390965R41

FRAME ASSY, rear, 766, order frame assy., Serial Range: -11820

1шт.

68517C92 and gear drive tractors also order cage, 68523C1, gear 393525R2, ring 26552R1, spacer, 67737C1, washer, Q5099 & screw, 271615, hydrostatic drive tractors also order cage, 68525C1, tube assy, 65440C2, ring, 26522R1, spacer, 67737C1, washer, Q5099 and screw, 271615

1шт.

16

390965R41

FRAME ASSY, rear, 966, order frame assy., Serial Range: -20685

1шт.

68517C92 and gear drive tractors also order cage, 68523C1, gear 393525R2, ring 26552R1, spacer, 67737C1, washer, Q5099 & screw, 271615, hydrostatic drive tractors also order cage, 68525C1, tube assy, 65440C2, ring, 26522R1, spacer, 67737C1, washer, Q5099 and screw, 271615

1шт.

19846R1

DOWEL,1/2" x 1 1/4"

PIN, 1/2 x 1-1/4 dowel , clutch housing

1шт.

19968R1

DOWEL,3/4" x 1 3/4"

PIN, 3/4 x 1-1/4 dowel, rear axle carrier

4шт.

19969R1

DOWEL,3/4" x 2 1/4"

PIN, 3/4 x 2-1/4 dowel, cover

2шт.

172558

PLUG,Exp, 1 1/4"

1-1/4 expansion, differential lub tube

1шт.

444788

DRAIN PLUG,Sq Soc, 1/2"-14 NPTF

PLUG, 1/2-14 auto sq-soc pipe

2шт.

9409947

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG, 3/4-14 auto sq-soc pipe

1шт.

17

380271R1

RETAINER

sealing ring

1шт.

18

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

1-1/4 x 1-1/2 x 1/8, clutch housing suction tube

1шт.

19

383331R1

PLUG,Cup, 4.26"

rear axle opening cup

2шт.

20

383331R1

PLUG,Cup, 4.26"

torsion bar cup, tractors w/o draft control

2шт.

21

381467R1

GASKET

independent PTO opening cover

1шт.

22

380272R1

COVER

independent PTO opening

1шт.

179882

PIN

SCREW, 1/2-13 x 1-1/8 hex-hd cap

9шт.

23

383329R1

COVER

draft control adj opening

1шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

SCREW, 5/8-11 x 1-1/4 hex-hd cap

6шт.

24

383330R1

GASKET

draft control adj opening cover

1шт.

25

385932R12

PIPE

ASSY, differential lub, 766, Serial Range: -11820

1шт.

25

385932R12

PIPE

ASSY, differential lub, 966, Serial Range: -20685

1шт.

179812

GEAR

SCREW, 5/16-18 x 1/2 hex-hd cap

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

26

172574

PLUG,Exp, 1 1/2"

1-1/2 expansion, pump suction port, tractors without power supply

1шт.

27

108508C1

SUPPORT

ASSY, swinging drawbar pivot, refer to group 9 swinging drawbar

1шт.

28

67748C1

TUBE

ASSY, differential upper lub, 766, Start Serial: 11821

1шт.

28

67748C1

TUBE

ASSY, differential upper lub, 966, Start Serial: 20686

1шт.

28

67748C1

TUBE

ASSY, differential upper lub, hydro 100 tractors

1шт.

537545R92

SEAL

pump suction tube oil, illustrated with hydraulic power supply in group 10

1шт.
